Grass 110 Degree Hinge for Frameless Overlay Cabinets (48 mm Screw Hole Spacing) - Bundle
    Grass 110 Degree Hinge for Frameless Overlay Cabinets (48 mm Screw Hole Spacing) - Bundle
    Purchase Grass 110 Degree Hinge for Frameless Overlay Cabinets (48 mm Screw Hole Spacing) - Bundle
    Grass 110 Degree Hinge for Frameless Overlay Cabinets (48 mm Screw Hole Spacing) - Bundle SKU #: B10146 Not Rated Yet

    Grass 110 Degree Hinge for Frameless Overlay Cabinets (48 mm Screw Hole Spacing) - Bundle

    $7.07 - $23.79 Per Bundle
    1
    $-.--
    1
    $-.--
    2
    $-.--
    Total: $0.00
    HardwareSource - Checkmark In Stock  & Ships by the next day!

    Overview

    • Straight arm hinge bundle for frameless cabinets with overlay doors.
    • These hinges can be used to replace old Mepla brand hinges which have a 48mm screw hole center to center spacing.
    • You will no longer find new hinges with "Mepla" stamped on them, as Mepla and Grass merged in 2007 to simply become Grass.
    • Please see the "How to Select Your Mounting Plate" document on the downloads tab to verify if this bundle will work for your application and determine which mounting plate is needed.

    Features

    • Four different adjustments
      • Depth adjustment (+3mm and -1mm)
      • Side adjustment / Overlay (+1mm and -3mm)
      • Height adjustment (+2mm and -2mm)
      • See the document found under Downloads for information on how to adjust

    Details

    • Hinge cup size is 35mm (1-3/8"). Cup depth is 11mm (7/16").
    • Door opening angle is 110 degrees
    • Works for bore distances from 3mm (1/8") to 7mm (9/32")
    • Works for overlay dimensions from 9mm (11/32") to 21mm (27/32")
    • Works for door thicknesses from 16mm (5/8") to 22mm (7/8")

    What's Included

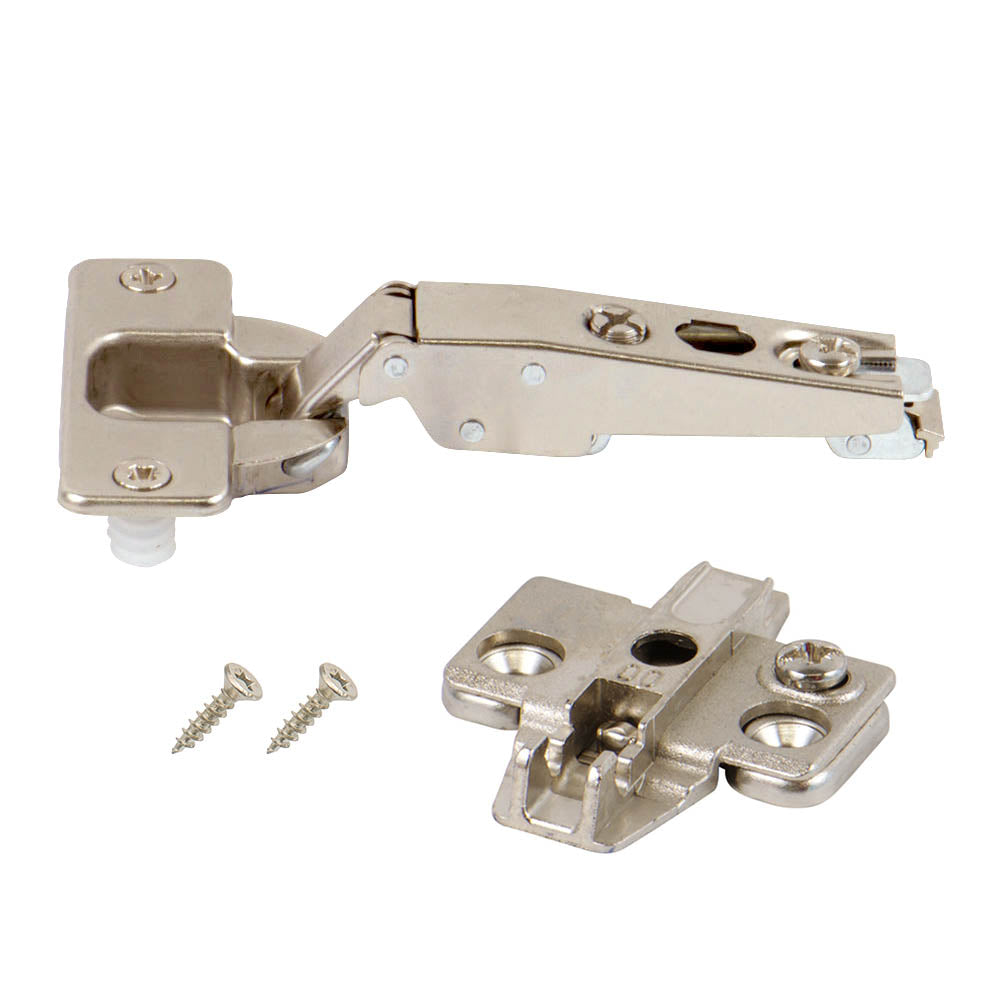

    • 1 x Grass "Nexis 110" Straight Arm Hinge with 48mm center to center spacing
    • 1 x Frameless Mounting Plate (three options available depending on desired overlay dimension)
    • 2 x #6 Screws for the Mounting Plate
    • 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).

    Optional Accessories

    • Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action.

    Available for purchase separately:

    • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
    • #6 flat head wood screws for the hinge side, can be used in place of the included plastic dowels and dowel screws (SKU 652360)
    • 35mm Forstner Bit, for new installations (SKU 204000)
    Grass
    Hinge: 146.322.54.0015
    0mm Plate: 315.393.55.0015
    2mm Plate: 315.393.55.0215
    4mm Plate: 315.393.55.0415
    Nickel
    Steel
    Half Overlay
    Full Overlay
    No
    Yes
    Clip-On
    110 Degrees
    35
    48mm (1-7/8")
    Yes
    Two plastic dowels and dowel screws for the hinge cup and two #6 screws for the mounting plate.
