Amesbury Truth  |  SKU: 997011

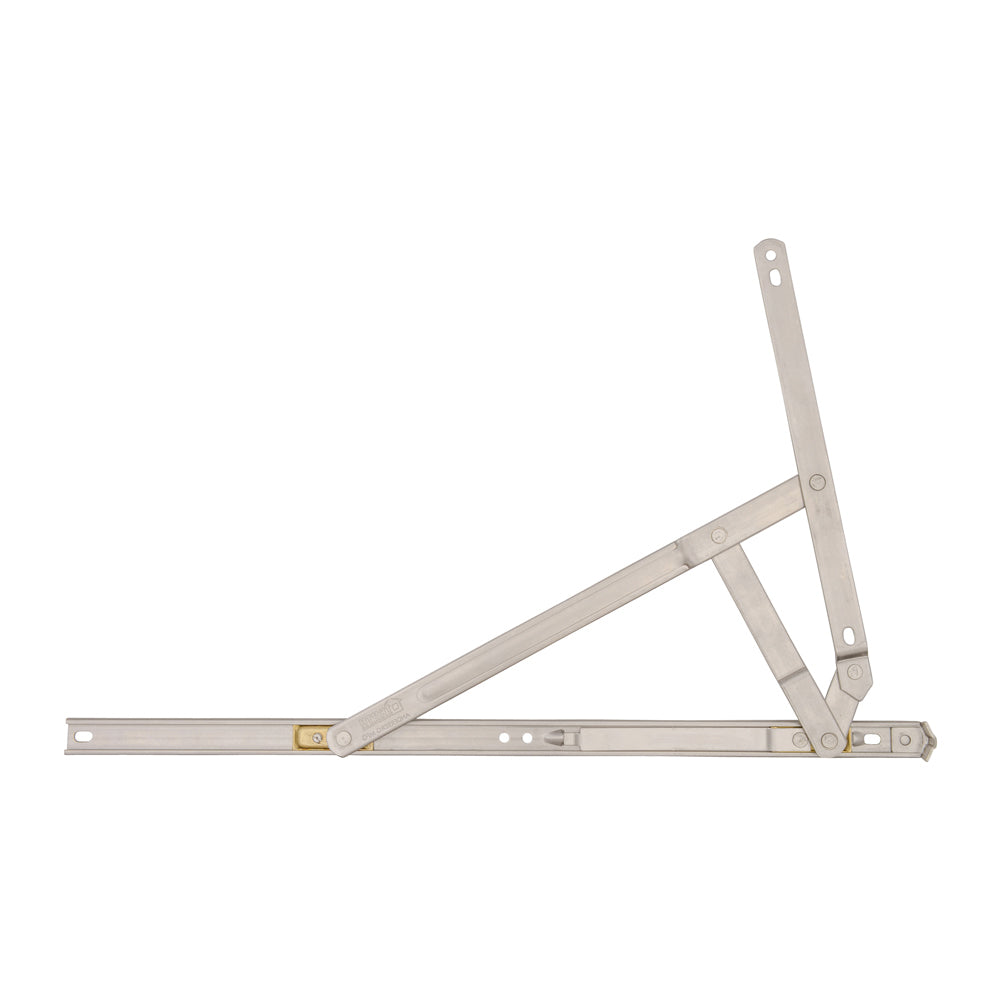

Truth Stainless Steel 4 Bar Egress Hinge, Standard Duty, 333 Series

$6950 Each

Fasteners Not Included

Description

  • Truth brand, 333 Series, heavy duty 4-bar casement window hinge with stop at 90 degrees.
  • This hinge is designed as an "Egress Hinge". When fully open, the sash is positioned close to the side jamb to allow an average sized person the ability to escape through the window's opening in case of an emergency as required by Egress Codes (always check with your local building department for your local building code requirements).
  • Maximum weight of up to 82 lbs for a 32" wide window. Made for sash width range of 18" to 32". For heavier windows see our Truth Heavy Duty 4-bar hinge.
  • 4 Bar Standard Duty Window Hinges are designed for projected vents with a lip on the outside edge.
  • 4 Bar Hinges are designed to project the sash out as it pivots to avoid interference between a lipped vent and frame.
  • These hinges are non-handed, they work on both left and right opening windows. Arm swings in both directions so the hinge can be used in either hand.
  • Features set screw friction adjustment.
  • Nominal size is 16". Actual length is 16.41".
  • For more information, see the Downloads tab on this page.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 997011

  • Manufacturer
    Amesbury Truth
  • Model Number
    35.11.00.100
  • Material
    Stainless Steel (304)
  • Weight Rating
    82 lbs
  • Window Type
    Casement Windows
  • Track Length
    16"
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Seven #10 Pan Head Stainless Steel Screws
