Sugatsune  |  SKU: 658938

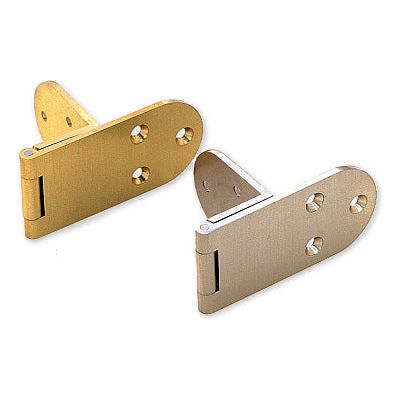

Side Panel Overlay Hinge

$3492 Each
Finish Name: Satin Brass


  • Beautiful hinge made for overlay doors on frameless cabinets.
  • One wing of the hinge installs on the outside surface of the cabinet side panel.
  • Can either be surface mounted on the door and the outside side panel of the cabinet or mortised (recessed) into the door and outside side panel.
  • The manufacturer recommends a maximum door width of 17-3/4", a maximum door height of 27-9/16", and maximum door weight of 5.7 lb per pair of hinges.
  • Recommended for 1" thick doors for surface mounted applications.
  • Recommended for 1-1/16" thick doors for mortised applications.

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10278

  • Manufacturer
  • Model Number
  • Material
  • Cabinet Door Type
    Full Overlay
  • Mounting Hardware Included
  • Mounting Hardware Type
    Matching wood screws
