SKU: 203010

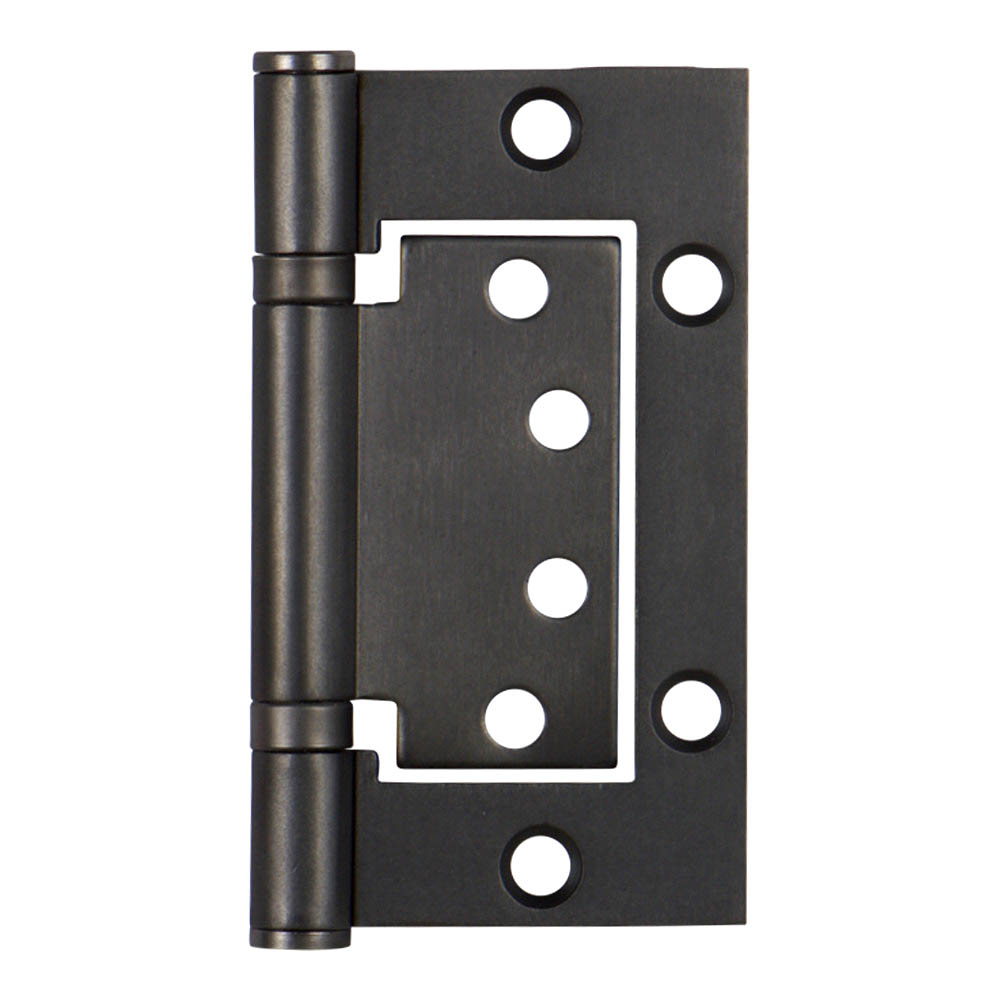

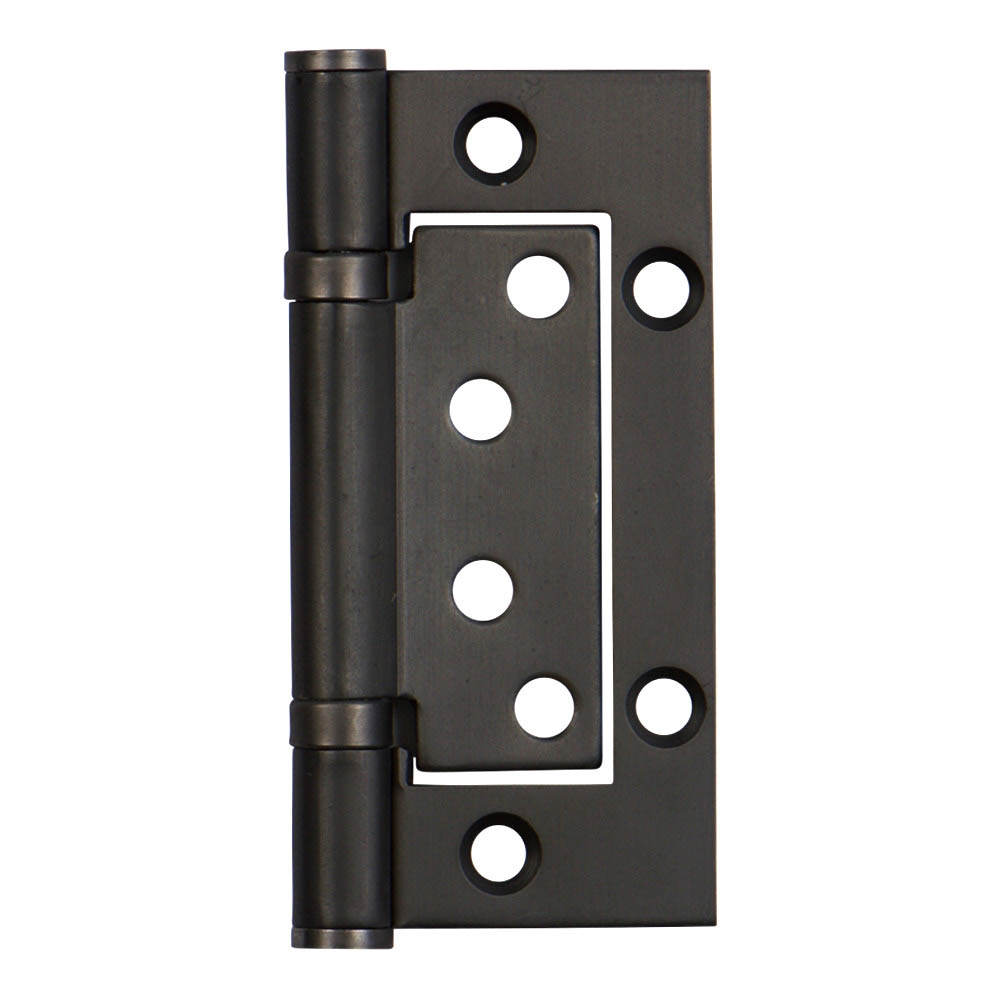

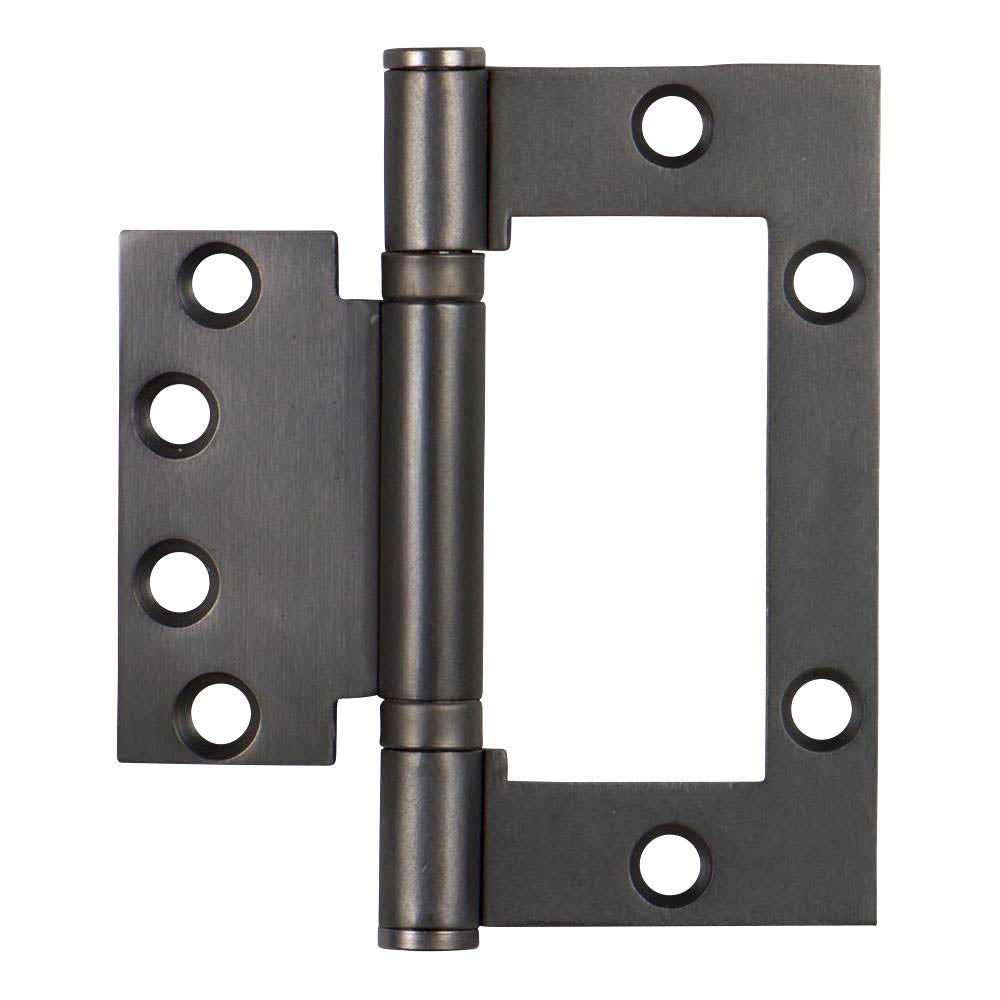

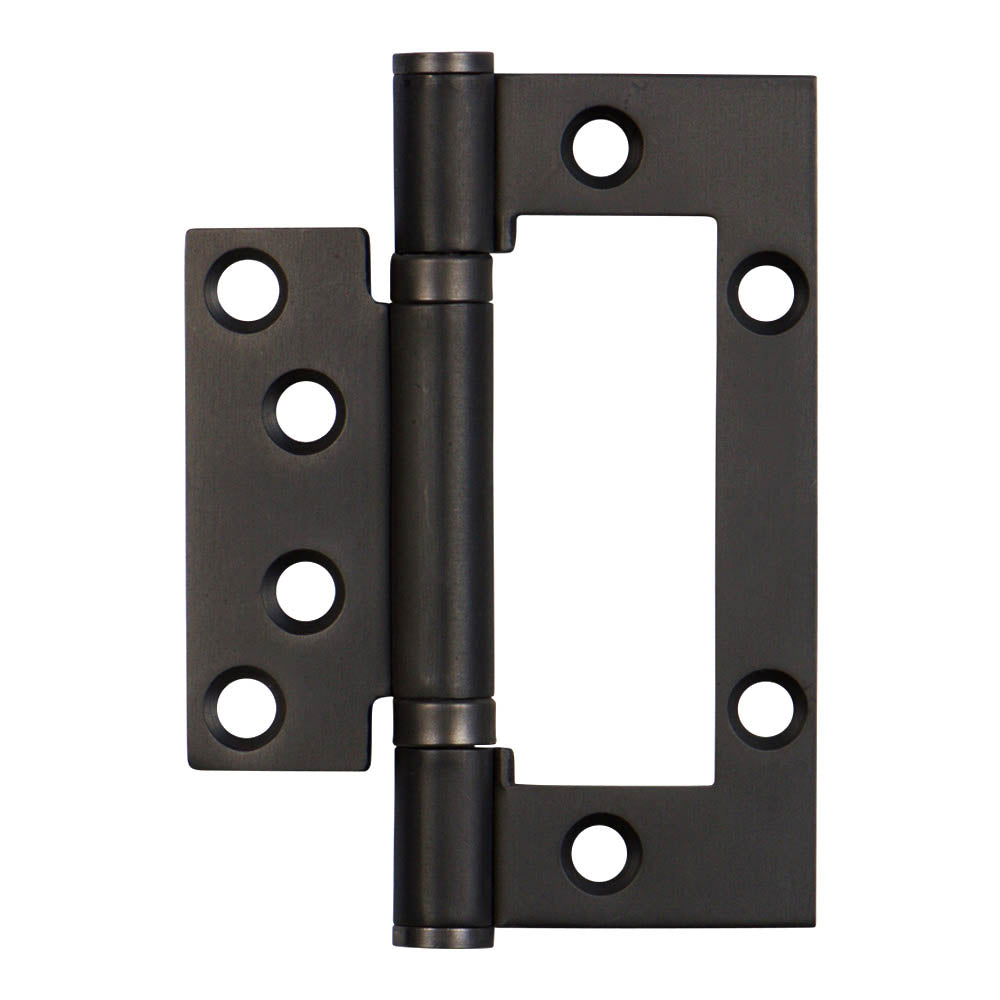

No Mortise Hinges For Full Size Doors

$1546 Each
Size

Description

  • 1-3/4" Door Hinge, the outside leaf measures 4" tall x 1-7/8" wide not including the barrel and the inside leaf measures 2-1/2" tall x 1-1/4" wide not including the barrel.
  • 1-3/8" Door Hinge, the outside leaf measures 4" tall x 1-1/2" wide not including the barrel and the inside leaf measures 2-1/2" tall x 1" wide not including the barrel.
  • Ball bearing no-mortise hinge.
  • This hinge does not require mortising of the door or the frame.
  • After installation there will be only a 3/32" gap between the door and frame.
  • The ball bearings are made of stainless steel.
  • Raceways are sealed bearing.
  • Non-removable hinge pin.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10666

  • Finish Name
    Oil Rubbed Bronze
  • Material
    Steel
  • Door Thickness
    1 - 3/8" or 1 - 3/4"
  • Handing
    Reversible
  • Height
    4"
  • Material Thickness
    3/32"
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Eight #8 matching wood screws
