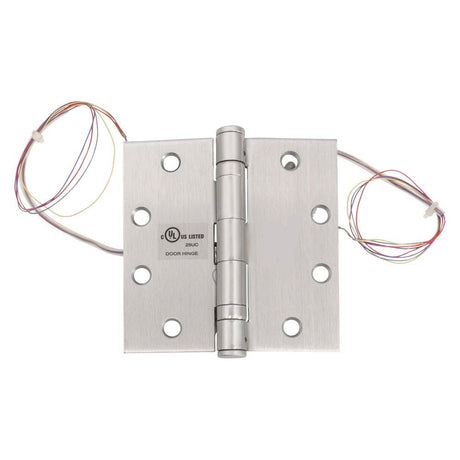

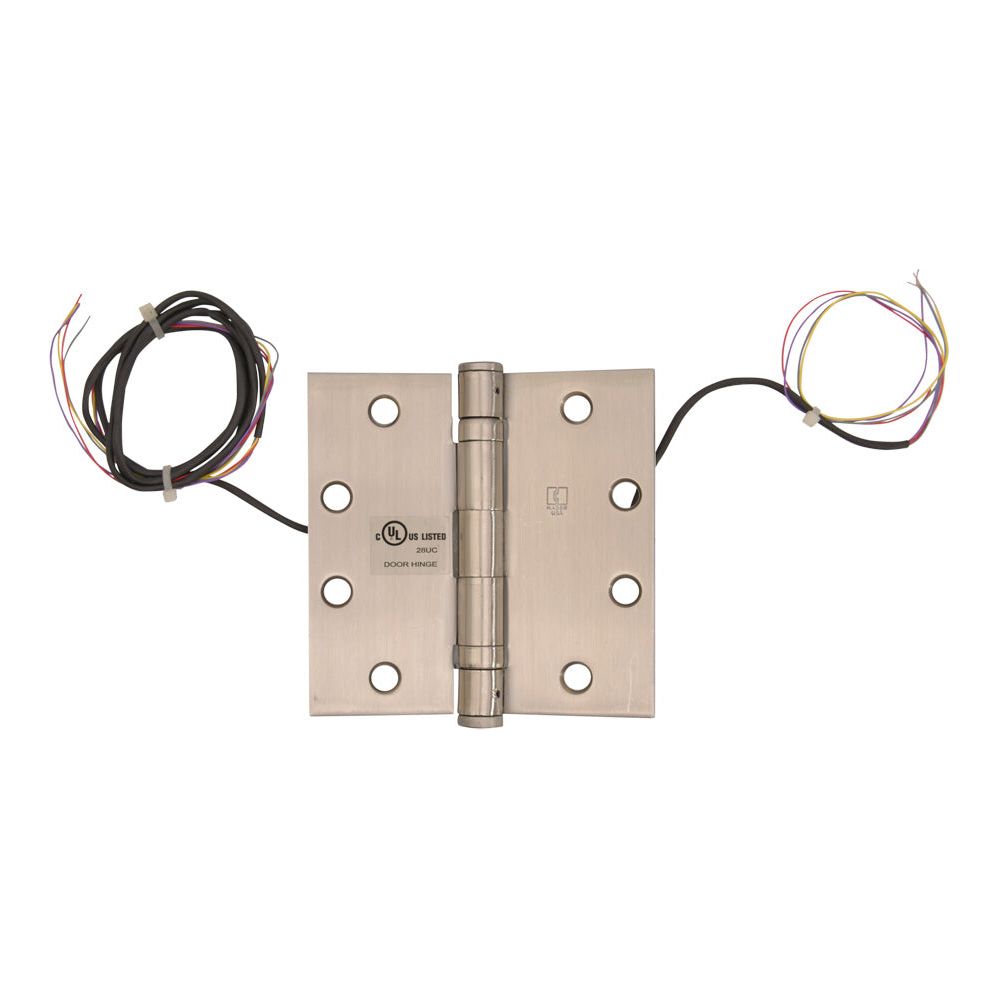

4-Wire Ball Bearing Electrified Butt Hinge 4-1/2" x 4-1/2" Stainless Steel
Couldn't load pickup availability
Description
Description
- UL Listed and UL Fire Rated.
- UL Rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse (maximum pulsewidth: 400msec with 10sec minimum off time between pulses)
- This is a 4 wire hinge.
- Fixed Pin, the hinge pin is not removable.
- Best to use electrified hinges in the center position.
Read More
Read More
For many, additional security measures are a must. If this is you, then consider the stainless steel 4 1/2 x 4 1/2 inch electrified butt hinge. This option allows a low voltage electric current to pass from the door frame leaf to the door side leaf of a standard architectural grade hinge. This allows control of various electric items on the door such as electric locks, access control devices, and alarms. For homes, commercial businesses, warehouses, and more, security matters.
There are several features to consider when purchasing the stainless steel 4 1/2 x 4 1/2 inch electrified butt hinge. It comes in a Satin Stainless Steel finish, which looks great in essentially any application. The hinges are UL Listed and Fire Rated, as well as UL Rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse (maximum pulse width: 400msec with 10sec minimum off time between pulses). There are four wires per hinge, although other wire configurations are available by special order. The stainless steel 4 1/2 x 4 1/2 inch electrified butt hinge must only be used as the middle hinge. One important note to keep in mind is that the hinge pin is NOT removable. With this, a mortar guard is required for all applications which have a grout-filled door frame. Failure to install a mortar guard for this application will void any warranty on these hinges. This may be special ordered if necessary.
Please note that these hinges are sold individually, not in pairs. This is because they will be used with two non-electrified hinges. Want to make sure these are right for your door and security needs? Reach out to us via the LiveChat system on our website, where you'll be connected with one of our online agents. Once you've placed your order, we'll have your hinges shipped out within the next business day. If you have any other questions about the stainless steel 4 1/2 x 4 1/2 inch electrified butt hinge or would like to learn more about our huge inventory of door hinges, please feel free to contact us for additional information.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 903012
-
Finish Name
-
MaterialStainless Steel (304)
-
Grade
-
CornerSquare
-
BearingsBall Bearing
-
Removable PinNo
-
Decorative TipsNo
-
Mounting Hardware Included
-
Mounting Hardware Type
