Rixson  |  SKU: 898054

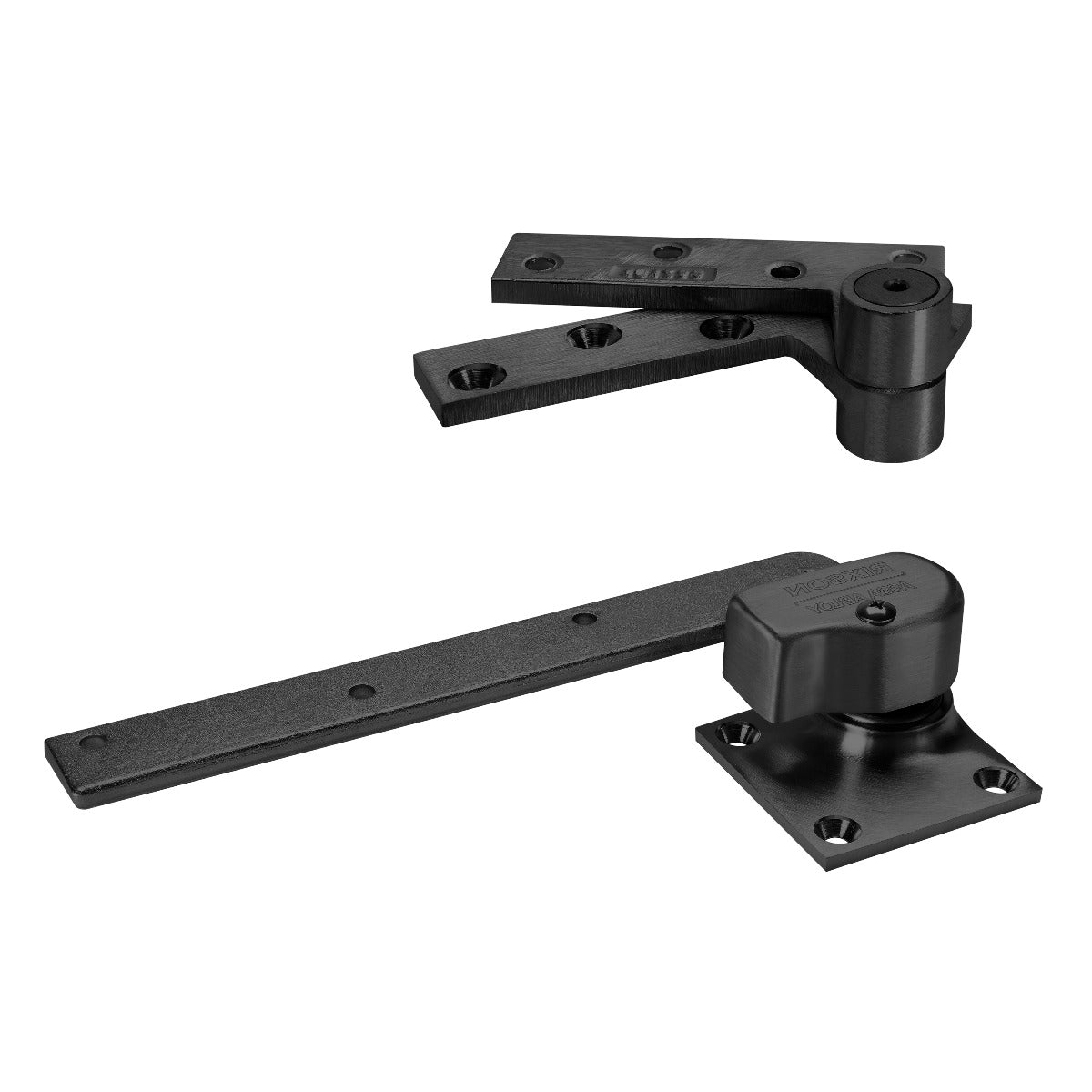

Rixson 1-1/2" Offset Pivot Set, 350 lb

$78720 Per Set
Finish Name: Oil Rubbed Bronze


  • This high quality American made pivot hinge set features a sealed ball bearing raceway on the floor pivot
  • Bronze bearing with hardened and ground steel stud in top pivot
  • 1-1/2" offset hung pivot sets locate the pivot point 3/4" from the heel edge of the door and 1-1/2" from the face of the door
  • 1-1/2" pivot sets are used to clear trim or allow decorative panels to be applied to the face of the door
  • Doors will swing 180 degrees (trim permitting)
  • For exterior door widths up to 3'0" and interior door widths up to 3"6"
  • Bottom pivot mounts directly to floor
  • Doors over 60" require the use of an intermediate pivot. Every additional 30" of door height warrants the addition of another intermediate pivot. For an intermediate pivot use our 1-1/2" Offset Intermediate Pivot.
  • Note: These hinges are a special order item. They are not returnable. Lead time is about one week.

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10275

  • Manufacturer
  • Model Number
  • Material
  • Weight Rating
    350 lb Per Set
  • Mounting Hardware Included
  • Mounting Hardware Type
    Matching wood screws
