SKU: 896006

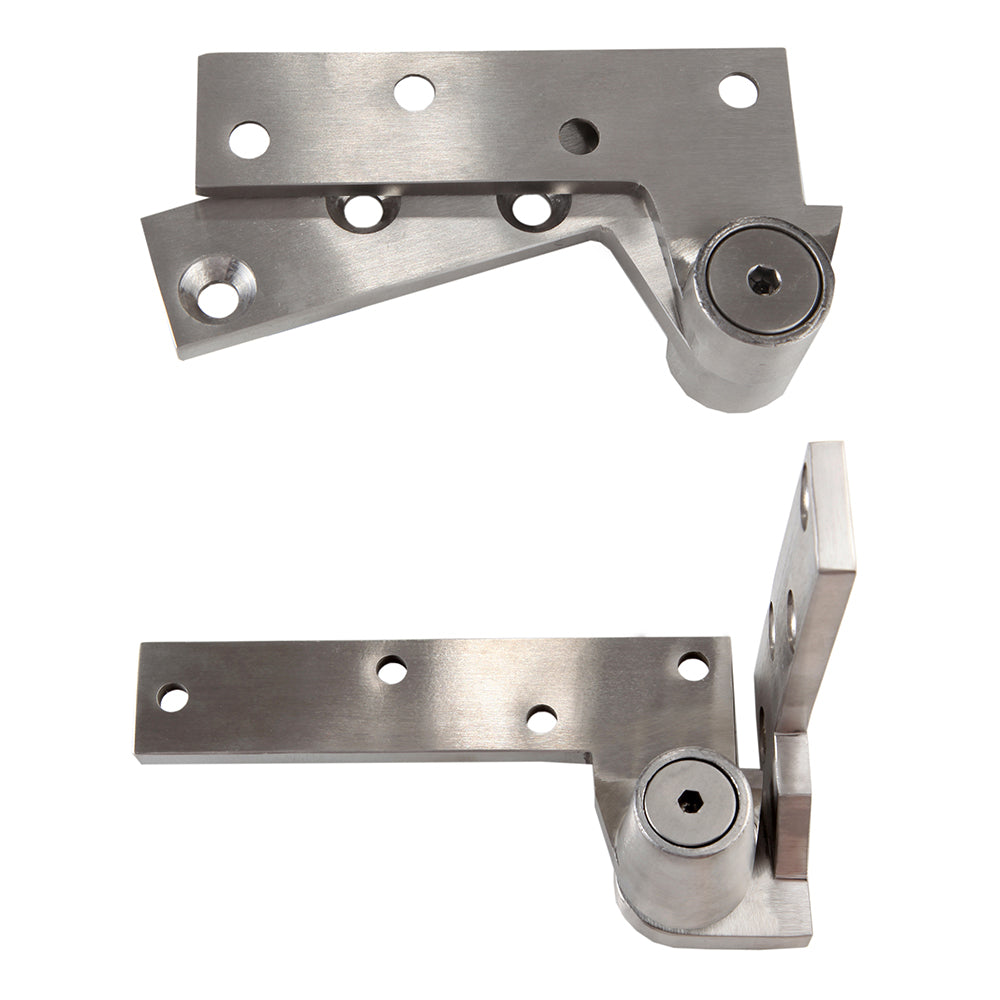

Jamb Mounted 3/4" Offset Pivot Set

$25870 Per Set
Finish Name: Satin Stainless Steel
Handing

Description

  • The Jamb mounted bottom offset pivot hinge is used for full size doors where it is not possible or desirable to mount the bottom pivot on the floor. The bottom pivot mounts to the horizontal door jamb.
  • Pivot set includes top pivot and bottom pivot. Made from solid brass, pivoting mechanism and ball bearings are steel.
  • For interior and exterior doors up to 4 ft wide and 8 ft tall.
  • After installation the door may be vertically adjusted 3/16".
  • Doors will swing 180 degrees (trim permitting).

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10493

  • Material
    Brass
  • Weight Rating
    450 lbs Per Set
  • Action
    Single Acting
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Matching Wood Screws

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet
3/4" Offset Intermediate Pivot Hinge
View details
3/4" Offset Hung Pivot Set, 600 lbs
View details
3/4" Offset Hung Pivot Set, 250 lbs
View details
Rixson 1-1/2" Offset Pivot Set, 150 lbs
View details
Rixson 1-1/2" Offset Pivot Set, 350 lb
View details
Price
Price
From $13780 Each
From $27170 Per Set
From $20410 Per Set
$67560 Per Set
$78720 Per Set
Description
DescriptionHigh quality Rixon style intermediate hinge at a great price. 3/4" Intermediate Pivots are used with offset hung pivot sets to maintain door... High quality Rixon style offset hinge at a great price. Features sealed ball bearing raceway on the floor pivot. Bronze bearing with hardened... High quality Rixon style offset hung hinge at a great price. Features a sealed ball bearing raceway on the floor pivot. Bronze bearing... Features sealed ball bearing raceway on the floor pivot For door widths up to 3'6" Door will swing 180 degrees (trim permitting) Bronze... This high quality American made pivot hinge set features a sealed ball bearing raceway on the floor pivot Bronze bearing with hardened and...

We Are Here to Help

Get expert assistance with product selection and more.

Frequently Asked Questions

How long does it take to get my hardware once it's been ordered?

The delivery time depends on how far you live from our San Diego warehouse. Generally, your order will reach you in 1 to 5 business days. Shipments do not move on weekends and holidays.

Do you ship merchandise outside the United States?

At this time, we only ship to addresses in the continental United States, Alaska, and Hawaii. For APO/FPO/DPO and Canadian orders, please email info@hardwaresource.com with a list of the SKU numbers and quantities you would like to purchase, along with your complete ship to address. Once we receive this information we will email you a shipping quote. Please note: Canadian shipments have a $50.00 minimum order.

I have a hinge that I am trying to replace but I need help identifying it. Can you help?

Yes! Please click here to visit our Hinge Finder page.

Some of your hinges are sold by the each and some sell by the pair. What is the difference?

When the unit of measure says “pair” that means two hinges. Usually you need one pair of hinges per door. When the unit of measure says “each” that means one hinge. You would usually order 2 “each” hinges per door.

I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?

Unfortunately, hinge manufacturers have never standardized the location of their screw hole patterns. Every manufacturer puts their screw holes in a slightly different place. This means that when you replace hinges you will almost certainly have to do some filling and redrilling. The exception to this is Architectural door hinges which are built to a standardized template for each size hinge.

What is your return policy?

You can see our complete return policy here: HardwareSource Returns
