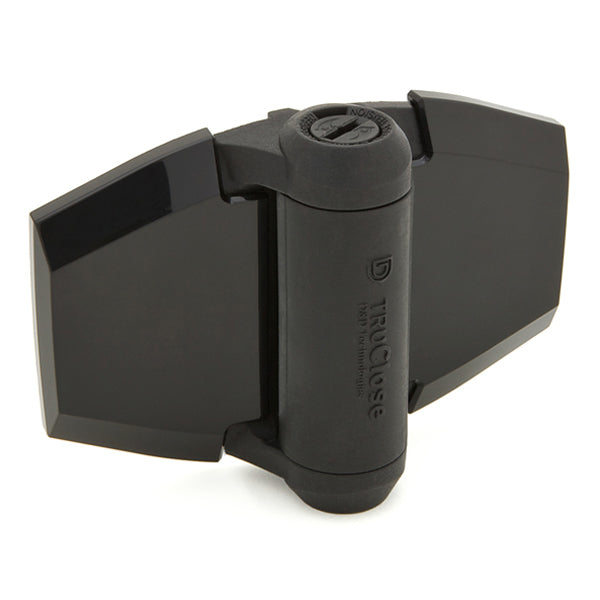

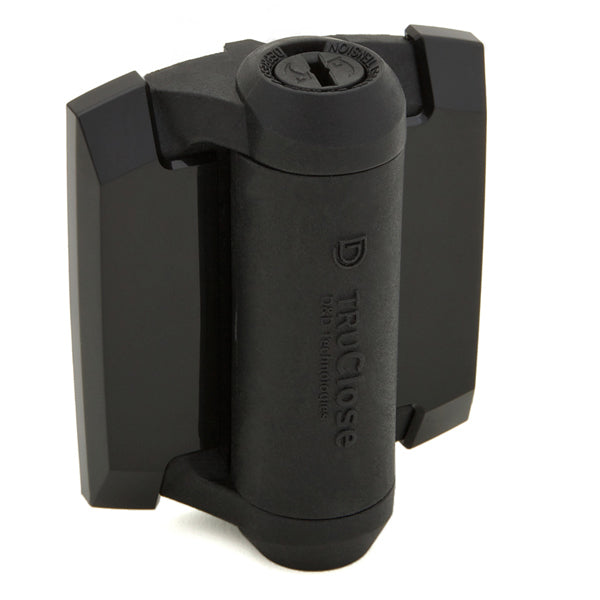

TruClose Regular Spring Hinge
Couldn't load pickup availability
Description
Description
- Hinges are adjustable and self-closing.
- Made from glass-fiber reinforced polymer (UV stabilized).
- Will not rust and never needs lubrication.
- No visible fasteners once included screw cover plates are installed
- Spring tension is incrementally adjustable with a screwdriver.
- Self-closes light to medium gates up to 66lbs per pair of hinges.
- Weight rating is based on gate maximum size of 5' high by 3' wide.
- These hinges have been independently tested to comply with strict safety standards, especially those relating to stringent swimming pool safety codes (always check with your building department for your local building code requirements).
Wood/Vinyl Model:
- For wood or vinyl gates.
- Hinge measures 3-25/32" tall by 5-3/16" wide.
- Requires six #10 pan head screws per hinge (not included).
Metal Model:
- For gates made from metal square tubing.
- Hinge measures 3-25/32" tall by 3-1/32" wide.
- Requires four #10 pan head screws per hinge (not included).
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10671
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialPolymer, Stainless Steel (316)
-
Weight Rating
-
Spring Hinge TypeSurface Mounted
-
Mounting Hardware Included
-
Mounting Hardware Type
