SKU: 215108

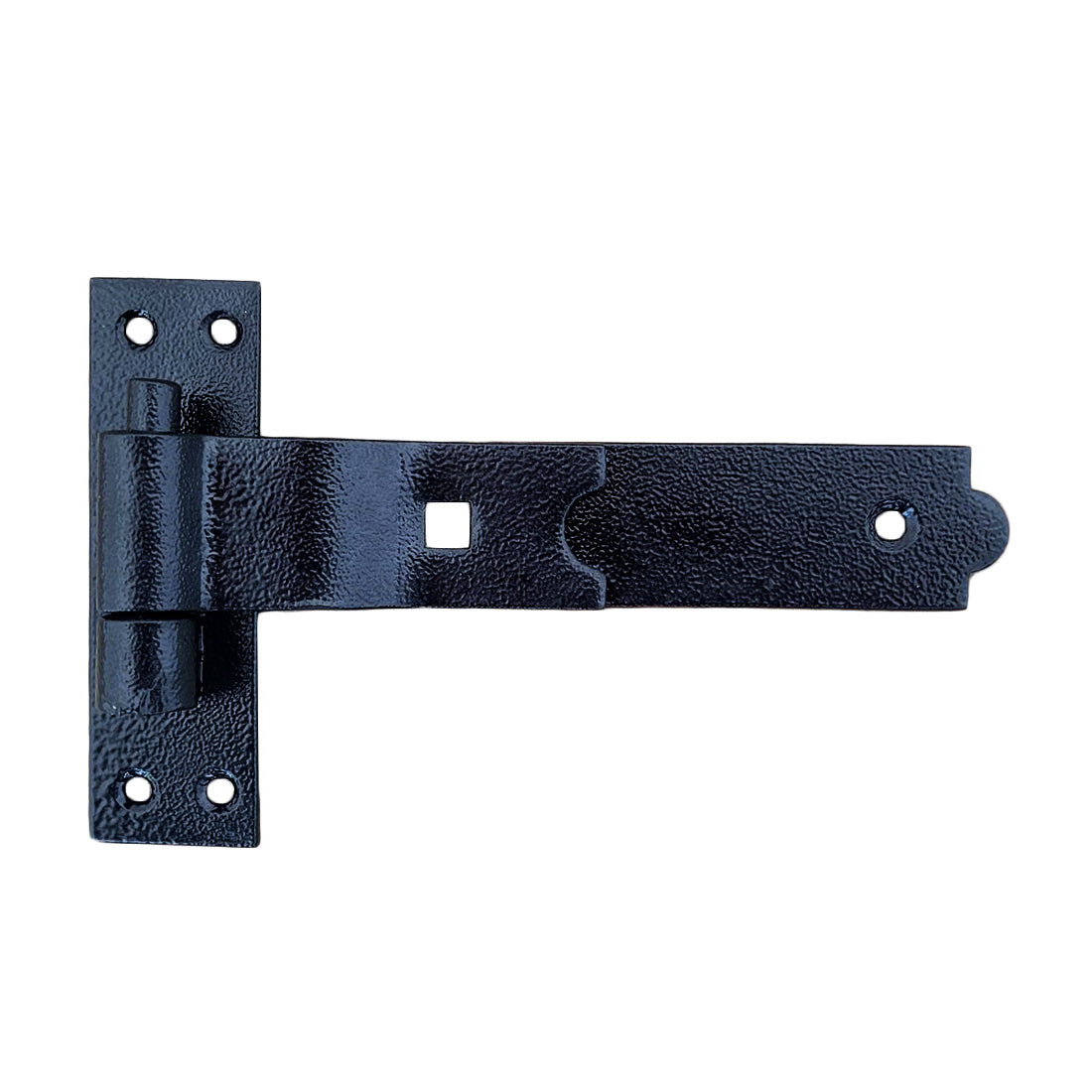

Heavy Duty Lift-Off Strap Hinge

$3745 Per Pair
Finish Name: Black
Strap Length

Description

  • Unique heavy-duty swaged gate strap flushes the gate with the post.

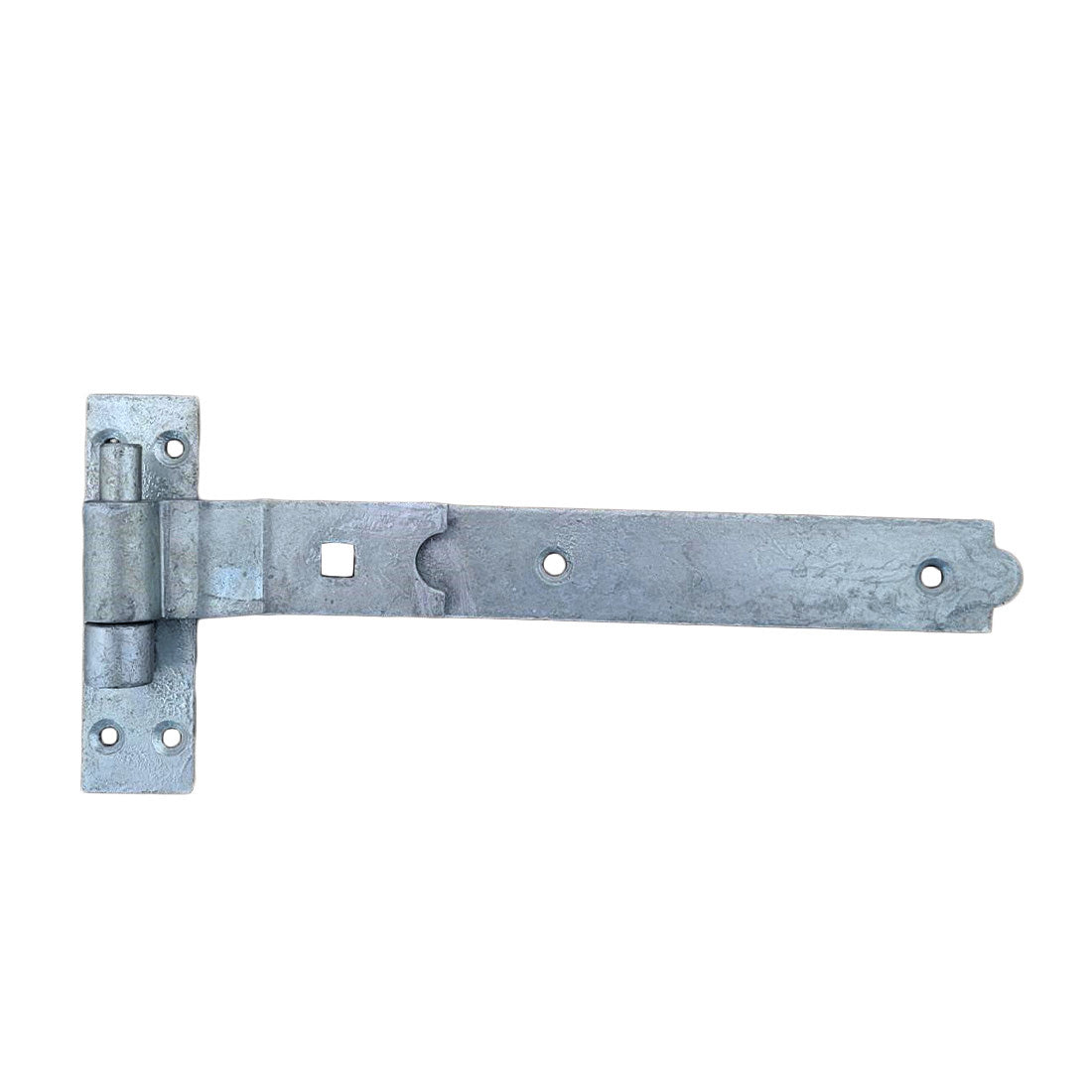

  • Available in hot dipped galvanized and black powder coating.
  • These gate hinges have a traditional look designed to enhance custom gates.
  • Other uses include shed and barn doors, and farm and agricultural applications.
  • The strap and pintle design allows for easy removal of the gate.

8" Size

  • Strap: 8" L x 1-1/2" W
  • Vertical Mounting Plate: 5-1/4" L x 1-7/16" W
  • 35 lb per pair

12" Size

  • Strap: 12" L x 1-1/2" W
  • Vertical Mounting Plate: 5-3/8" L x 1-1/2" W
  • 60 lb per pair

18" Size

  • Strap: 18" L x 2" W
  • Vertical Mounting Plate: 6-1/2" L x 2" W
  • 90 lb per pair

24" Size

  • Strap: 24" L x 2-3/16" W
  • Vertical Mounting Plate: 6-1/2" L x 2-3/16" W
  • 150 lb per pair

30" Size

  • Strap: 30" L x 2-1/4" W
  • Vertical Mounting Plate: 8" L x 2-3/16" W
  • 200 lb per pair

Read More

Do you have doors or gates that need to be removed temporarily to fit objects inside or move them out? It can be time-consuming to remove the pin to turn around and re-install it, again and again. Eliminate this issue with the heavy-duty lift-off strap hinge. This steel hinge allows users to easily lift doors and gates off the hinge without needing to remove the pin, saving you time and preventing unnecessary work.

Designed in a traditional British hardware style, the heavy-duty lift-off strap hinge can make daily tasks much easier. If you move large, bulky objects in and out of your space or property regularly, you don't want to worry about keeping doors or gates open. This hinge will allow you to quickly lift the door or gate up and off to the side so you can do what needs to get done. You can purchase this useful steel hinge in either matte black or heavy galvanized steel, both of which will look great. If your property lies along a coast or is situated in an area with harsh weather, choose the galvanized finish for extended longevity. These are offered of straps lengths ranging from 8" to 30", each with specific dimensions and weight ratings. Determine the dead weight of your door or gate to choose the right heavy-duty lift-off strap hinge for it. You'll receive the mounting hardware with your order, which includes matching wood screws and one galvanized 3/8" x 4" carriage bolt. These hinges are sold per pair.

If you're unsure about choosing these hinges, use our LiveChat system on our website to ask one of our online agents. They'll help you determine what's best for your door or gate. Once you place your order, we'll have your strap hinges sent out within one business day. If you have any other questions about the heavy-duty lift-off strap hinge or would like to learn more about our large inventory of hinges, please feel free to contact us for additional information.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10348

  • Material
    Steel
  • Material Thickness
    3/16"
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Matching wood screws and one galvanized 3/8" x 4" carriage bolt (for the square hole)
