SKU: 504681

Stainless Steel Heavy Duty Tee Hinge

$2200 Each
Strap Length


  • This stainless steel hinge is well suited for use near marine environments or anywhere the look of stainless steel is desired.
  • Recommended for vinyl, redwood, cedar, and ACQ (treated) lumber.
  • The strap length is measured from the tip of the strap to the far end of the hinge pin barrel. The pad width is measured from the edge of the pad to the inside edge of the hinge pin barrel.

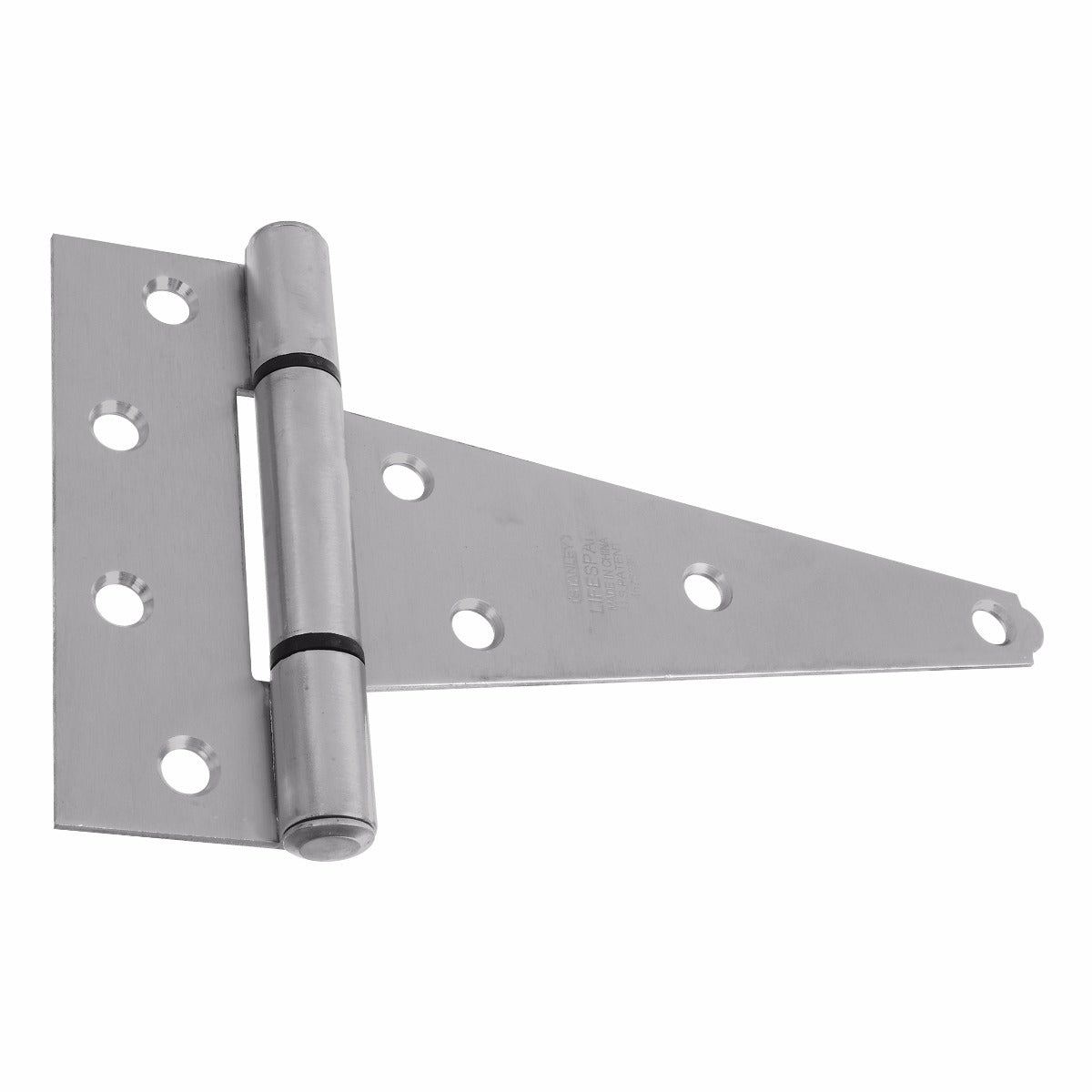

6" Strap Length

  • Open Width: 7-5/16"
  • Pad Length: 4-1/4"
  • Pad Width: 1-1/4"
  • Strap Width: 2"
  • Gauge: 0.095"

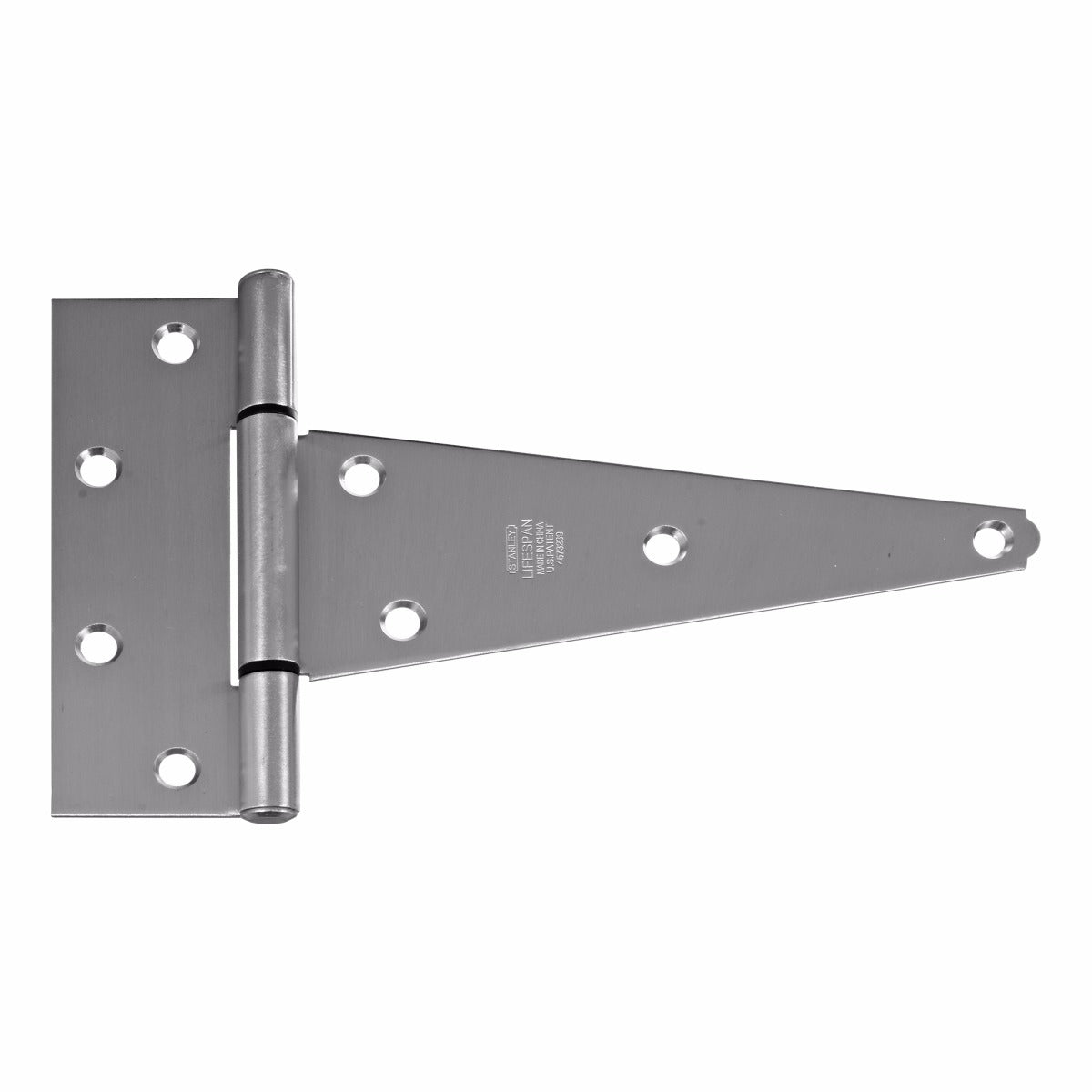

8" Strap Length

  • Open Width: 9-3/4"
  • Pad Length: 5-1/2"
  • Pad Width: 1-11/16"
  • Strap Width: 2-5/8"
  • Gauge: 0.107

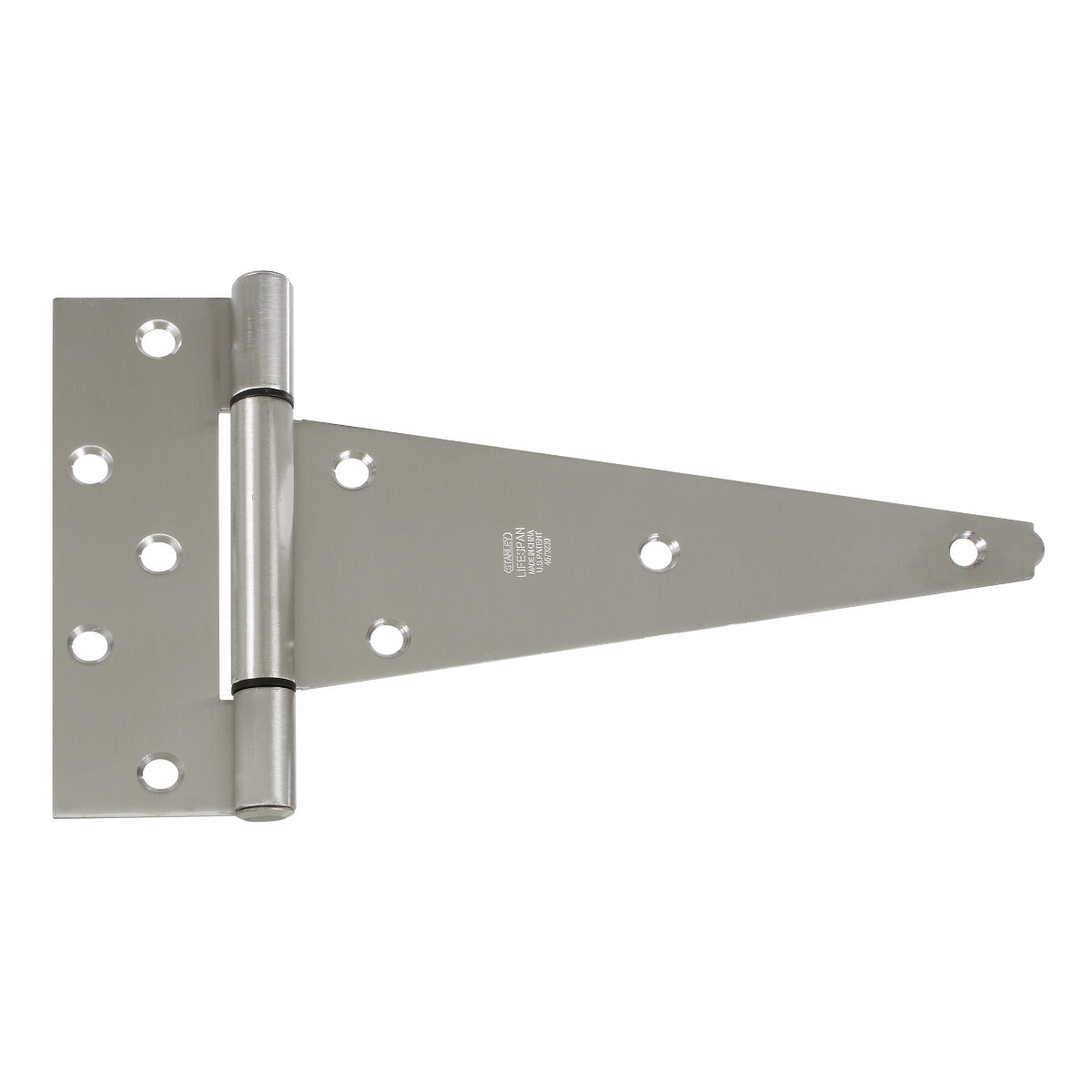

10" Strap Length
  • Open Width: 12"
  • Pad Length: 6-5/8"
  • Pad Width: 2"
  • Strap Width: 3-1/2"
  • Gauge: 0.125

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10539

  • Finish Name
    Satin Stainless Steel
  • Material
    Stainless Steel (304)
  • Mounting Hardware Included
  • Mounting Hardware Type
    Matching Wood Screws
