SKU: 782500

Round Body Barrel Weld-On Hinge

$4240 Per Pair
Weight Rating
Finish Name: Zinc

Description

  • Weld-on barrel hinge is a lift off pivot hinge.

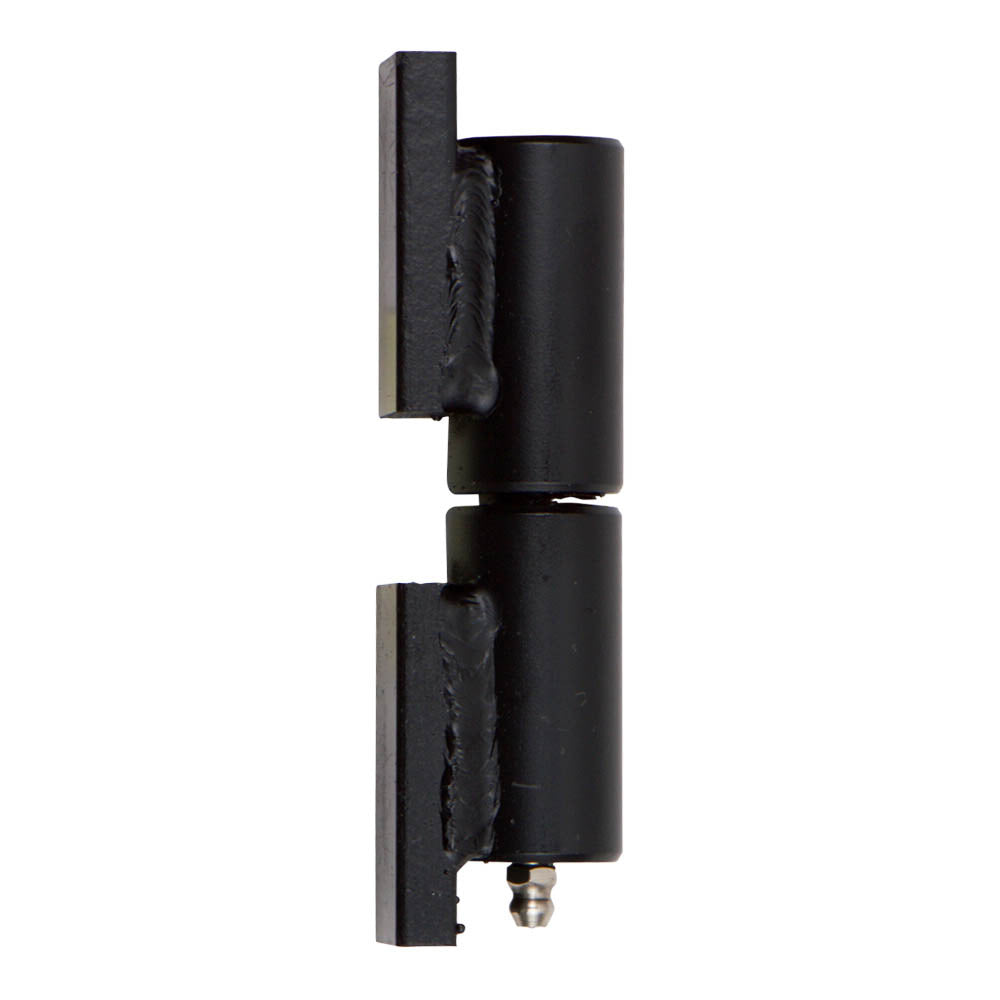

  • Available in two finishes: zinc plated and black
  • Features a zerk type grease fitting to keep the bearings lubricated.
  • The hinge pin is fixed in one of the barrels.

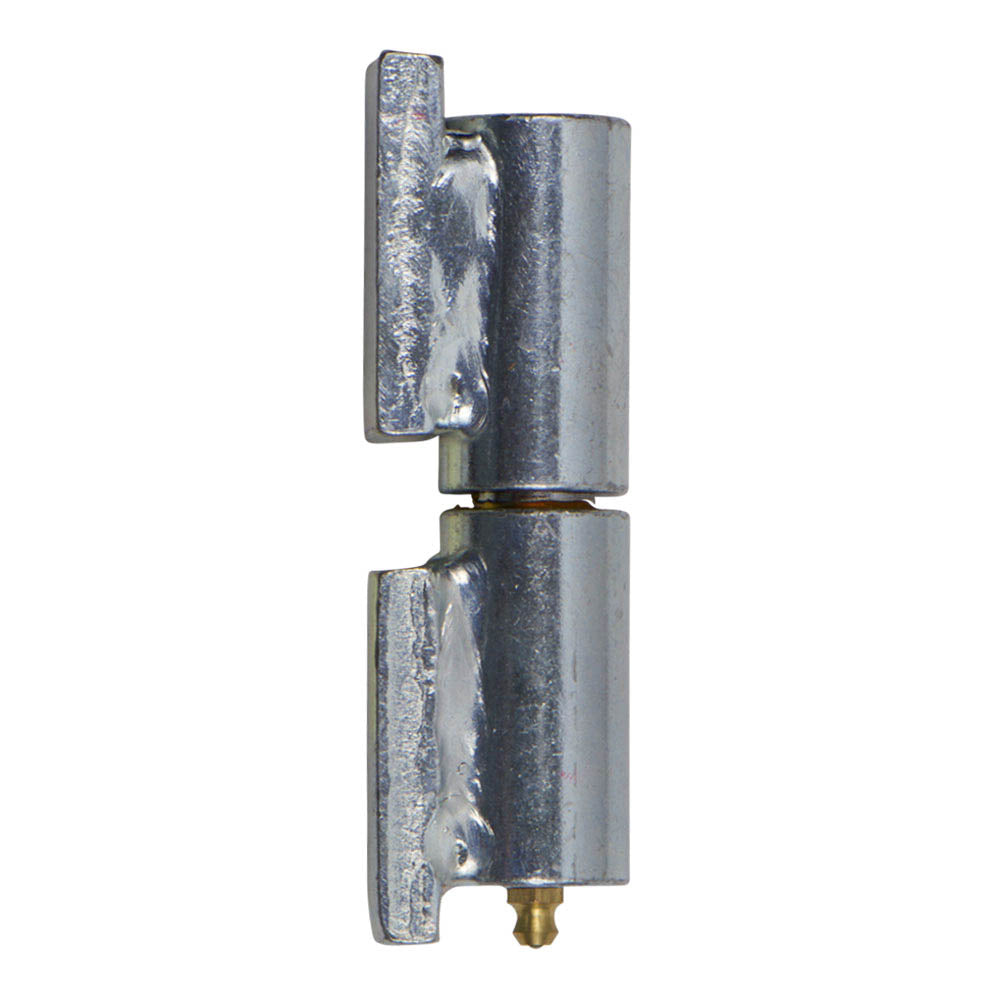

500 lb Model Specifications:

  • 4-1/2" H x 7/8" W.
  • Barrel diameter is 1".
  • Pin diameter is 5/8".
  • For gates up to 8' wide.
  • Leaves a 1-3/4" gap between the post and the gate after the hinge is installed.

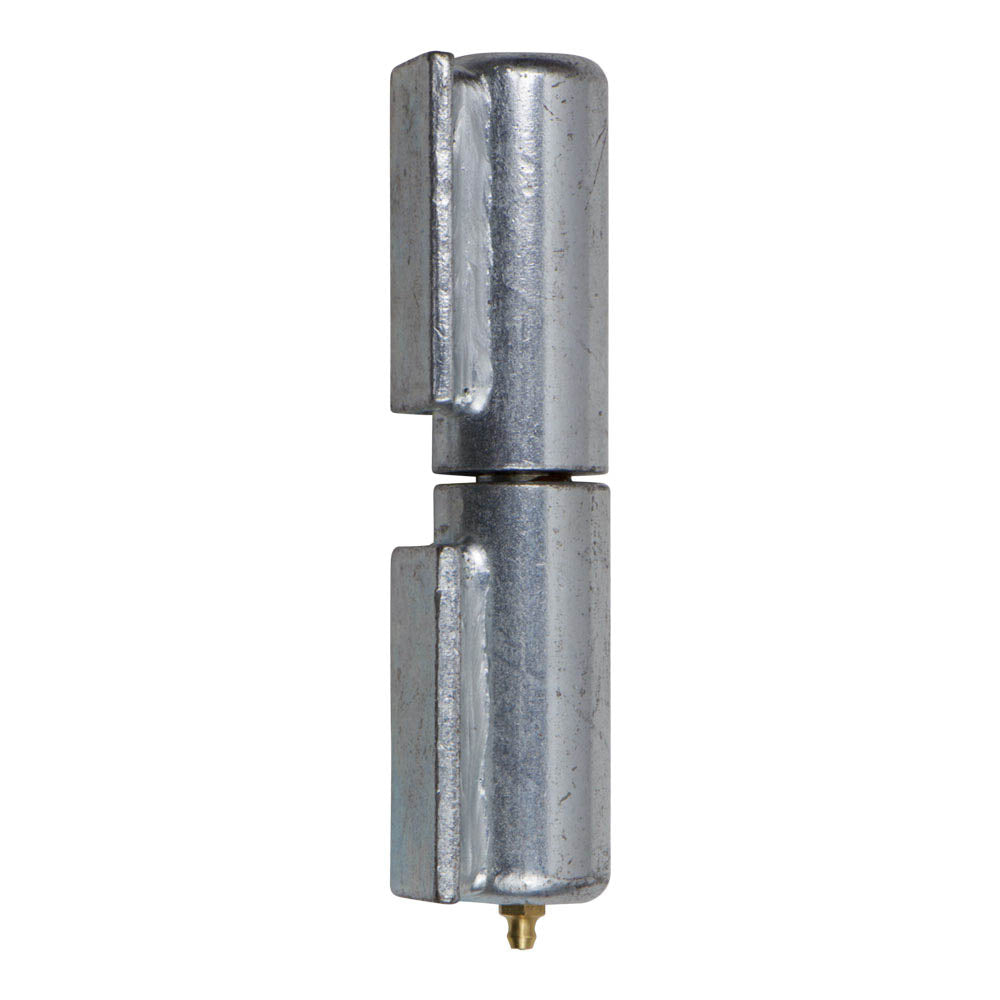

800 lb Model Specifications:

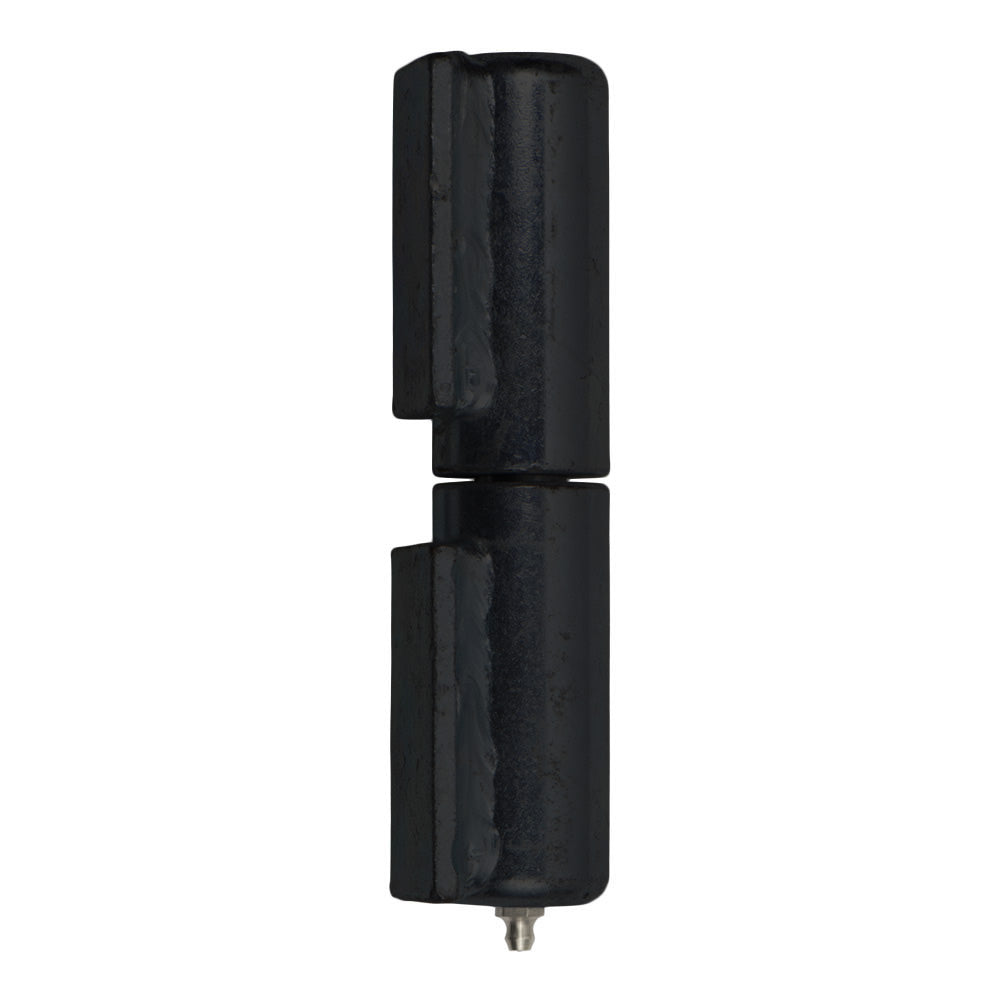

  • The Black Model is 7" H x 1-3/8" W, and the Galvanized Model is 7" H x 1-3/4" W.
  • Barrel diameter is 1-1/2".
  • Pin diameter is 3/4".
  • For gates up to 15' wide.
  • Leaves a 1-15/16" gap between the post and the gate after the hinge is installed.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10326

  • Material
    Steel
  • Heavy Duty Hinge Type
    Weld-On
  • Bearings
    Ball Bearing
