D&D Technologies  |  SKU: 980030

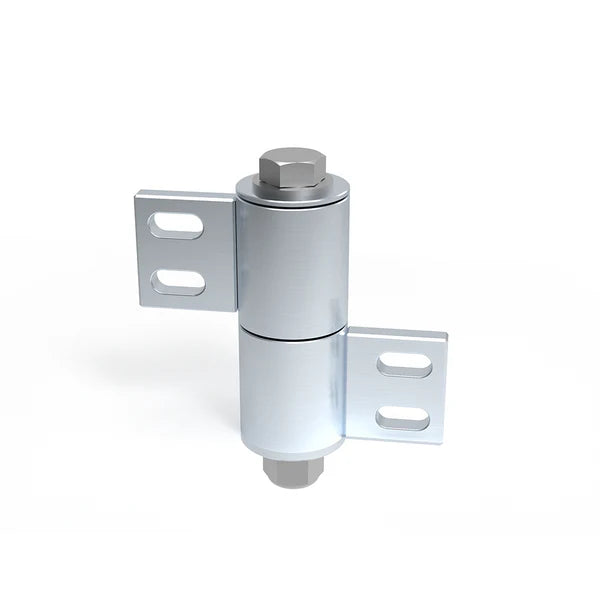

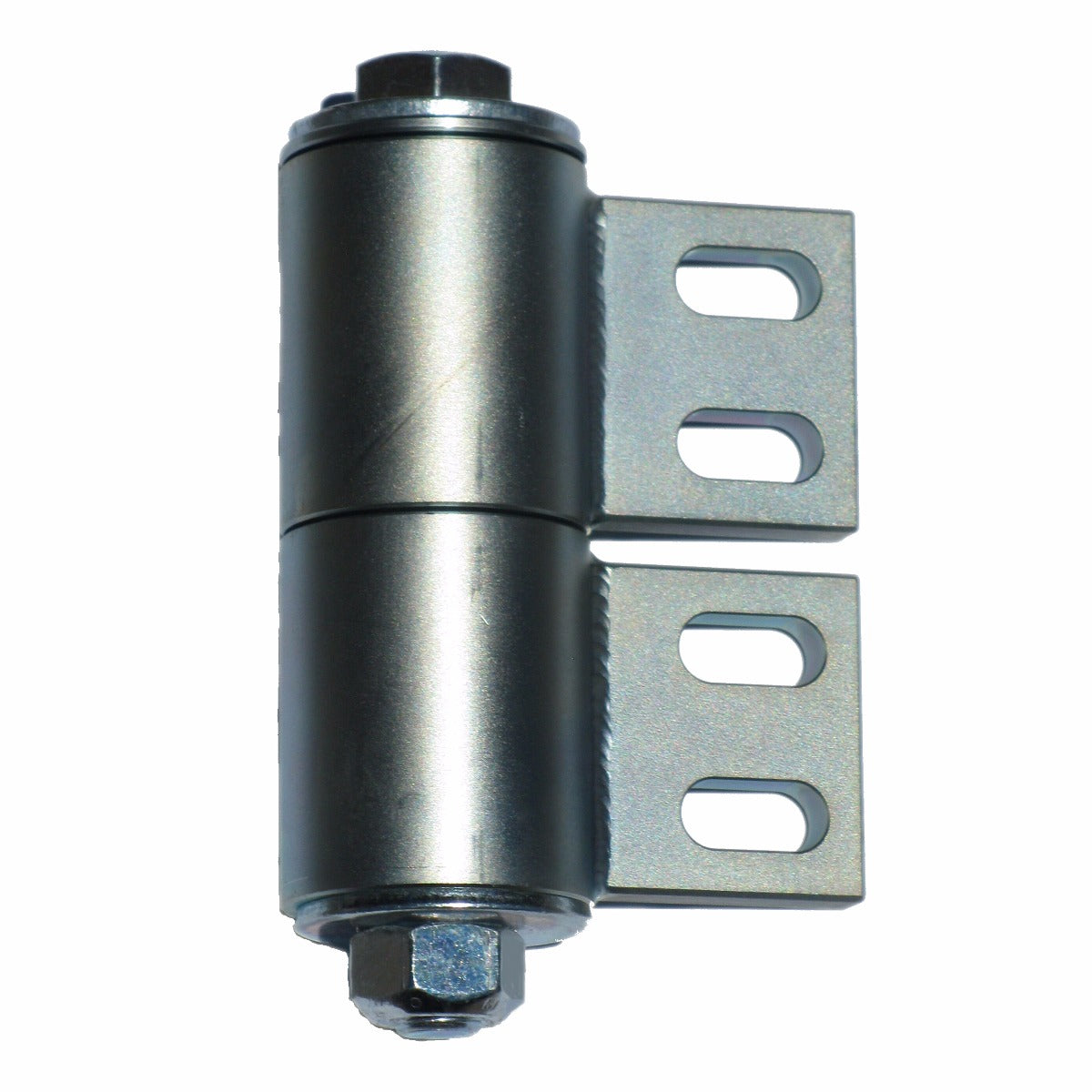

Barrel Hinge Heavy Duty Bolt or Weld-On

$11213 Each

Fasteners Not Included


  • This heavy duty weld-on barrel hinge is perfect for trash enclosures, heavy gates, or high-security applications.
  • High-temperature sealed bearings – safe to powder coat with hinges installed on gate.
  • Ideal for nearly all flat post installations.
  • Designed to reduce the gap between the jamb or post and the gate.
  • No greasing or maintenance required on sealed bearings.
  • Allows for 180 degree swing for most applications.
  • Hardened roller bearing design.
  • High security welded pin design.

Read More

If you need a heavy-duty barrel hinge for your gates, the zinc chromate heavy-duty bolt or weld-on hinge offers great versatility. These hinges are designed for your heaviest gates on either commercial or residential property. Equip your existing gates with these extremely durable and long-lasting hinges for years of use.

The heavy-duty bolt or weld-on hinge, zinc chromate option can be used in both weld-on and bolt-on applications. Measuring 6" tall, this steel hinge has a 1 - 7/8" barrel, which contributes to the high weight rating of 3,000 lbs. To get the 3,000 lb. weight rating, you will need to use Grade 5 or better 3/8" bolts. The hinge will have a very small install gap between the fence and post, which can be altered depending on how you mount it. If welded, the gap can be as small as half an inch. If you choose to bolt it, this gap can be as small as 5/8". The head size of your bolts will affect this gap too. Depending on the thickness of your gate, these hinges are capable of opening up to 180 degrees, which is ideal for farms, manufacturing facilities, gated water access, and other places where this type of clearance is needed. For a barrel hinge that can do it all, choose the heavy-duty bolt or weld-on hinge, zinc chromate option.

For specifics on the heavy-duty bolt or weld-on hinge, zinc chromate option, download the Dimensional Diagram located on this page. Please note that these hinges are sold individually, not in pairs. Once you've placed your order, we will ship your hinges within the next business day. Use our LiveChat system on our website to get your product questions answered by our online agents. If you have any other questions about the zinc chromate heavy-duty bolt or weld-on hinge or would like to learn more about our expansive selection of door and gate hinges, please feel free to contact us for additional information.

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 980030

  • Manufacturer
    D & D Technologies
  • Finish Name
  • Material
  • Weight Rating
    3000 lb per pair
  • Heavy Duty Hinge Type
    Bolt-On, Weld-On
  • Bearings
    Roller Bearing
  • Mounting Hardware Included
  • Mounting Hardware Type
    Four 3/8" Bolts, Grade 5 or Better
