Blum  |  SKU: 652276

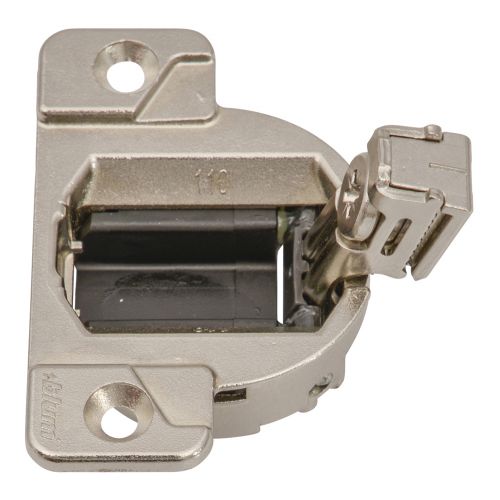

Blum Compact 33 - Hinge Only

$399 Each

This page is for the Compact 33 hinge ONLY, and does not include the mounting plate or screws. To view the bundle which includes these products, please see related products below.

Fasteners Not Included

Description

Installation:

  • Mounts into a 35mm cup in the back of the cabinet door. Cup depth is 1/2".
  • The bore distance (the distance from the edge of the 35mm cup to the edge of the door) is 1/8" for all applications of this hinge.
  • This hinge is adjustable after installation. Side to side adjustment is plus or minus 1/8" and height adjustment is plus or minus 9/64".

Mounting Plates:

  • These hinges require mounting plates.
  • This product page includes the hinge only.
  • If you need mounting plates with your hinge they may be purchased separately or as part of a Compact 33 kit. Both pages are linked below.
  • You must determine your door's overlay before purchasing a mounting plate.

Replacements:

  • It is okay to reuse your existing mounting plates. They will work with the new hinge.
  • The following are some possible numbers that Blum has stamped on these hinges over the years: 120, 32.160, 30.310, PA66, 32.260
  • It is advisable to replace all of the hinges at the same time on any door when you have worn out hinges.
  • Prior versions of this hinge were made to open to 120 degrees. The 120 degree hinge can be replaced with this new 110 degree version . It is not advisable to mix 120 degree hinges with the new 110 degree hinge.
  • This hinge used to be made in a dark antique brass finish. Nickel is now the only finish available.

The "Old Style" Blum Compact 33:

  • You can use this new model hinge to replace your "old" style Blum Compact 33 hinge. The old style and the new style are functionally the same even though they look like different hinges (please trust us on this one).
  • The only difference is in the old style had its screw holes located closer to the pivot point of the hinge,
  • When replacing the Old Style with the New Style, you will have to re-drill the small wood screw holes. The new screw hole location will not interfere with the old screw hole location.
  • To view a comparison of the Old Style and the New Style click on the document found under Downloads.

Read More

Blum Compact 33 hinges are commonly used in cabinet making and furniture manufacturing because of their many advantages. Here are some reasons why you might want to use a Blum Compact 33 hinge:

  1. Easy installation: The Blum Compact 33 hinge is easy to install and adjust, making it a favorite among furniture makers.
  2. Space-saving: The hinge is compact and fits snugly into the furniture without taking up too much space. This is especially useful in smaller rooms or where space is at a premium.
  3. Durability: The Blum Compact 33 hinge is made of high-quality materials that make it durable and long-lasting. It can withstand frequent use and will not wear out easily.
  4. Versatility: The hinge can be used for a variety of cabinet styles and sizes, making it a versatile choice for furniture makers.

Overall, the Blum Compact 33 hinge is a popular choice for furniture makers and cabinetmakers because of its ease of installation, space-saving design, smooth operation, durability, and versatility.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 652276

  • Manufacturer
    Blum
  • Model Number
    B33360
  • Finish Name
    Nickel
  • Material
    Cast Metal
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Screw-On
  • Opening Angle
    110 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Screws (Our SKU 652360)
