SKU: 344070

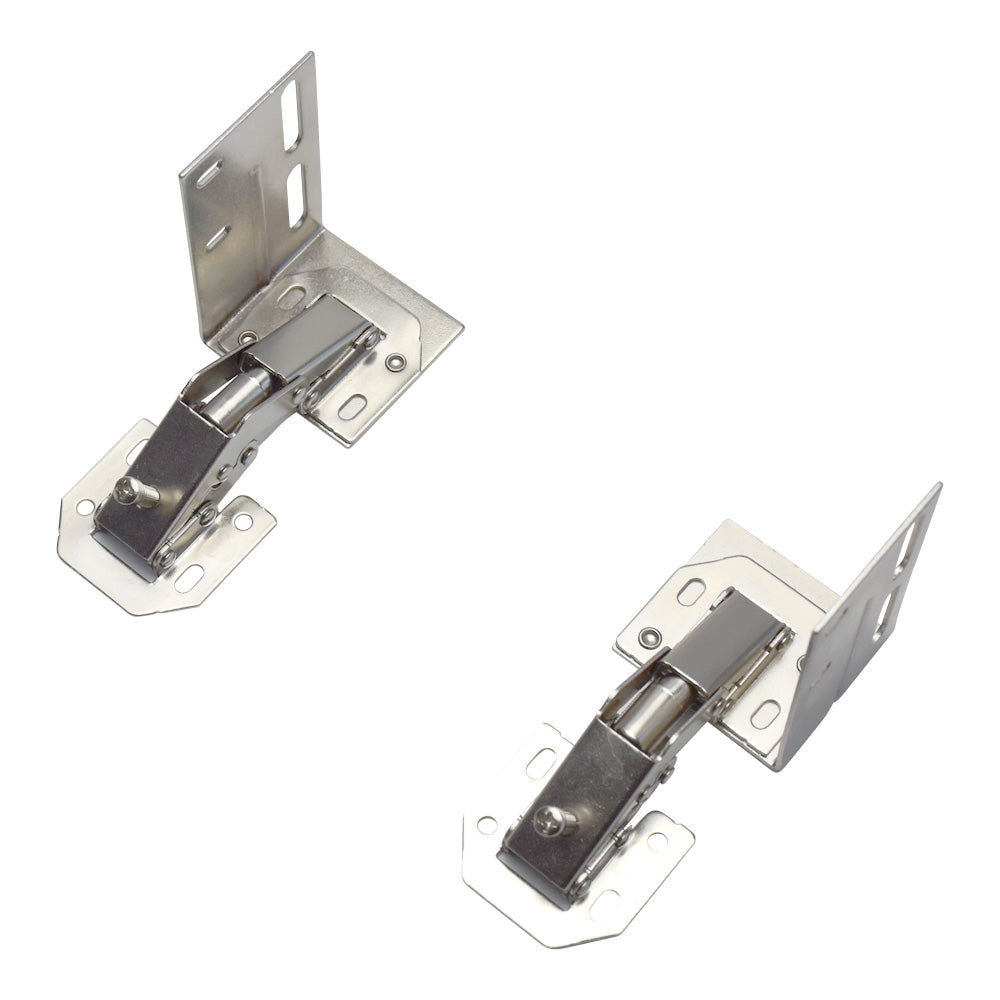

90 Degree No-Bore Tip Out Tray Hinge

$1199 Per Pair

Description

  • This hinge allows the panel which is found on the cabinet in front of a kitchen sink to tip out up to 90 degrees.
  • This will allow a small tray to be installed on the back of the panel for storing small items.
  • Hinge works on "overlay" panels or doors (up to a 15/16" maximum overlay).
  • Hinge installs on the edge of the cabinet face frame. For tip out trays this would be the bottom left and the bottom right hand corner of the cabinet opening. The screws attach to the vertical edge of the face frame.

Product Dimensions:

  • Plate Height: 2-13/16"
  • Plate Width: 1-3/4"

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 344070

  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Full Overlay
  • Self-Closing
    Yes
  • Plate Connection Type
    One-Piece
  • Opening Angle
    90 Degrees
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Matching screws are included.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 2 products
Facet

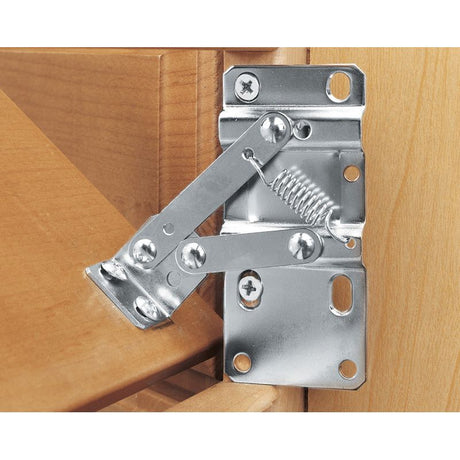

Tip-Out Tray Hinges
View details

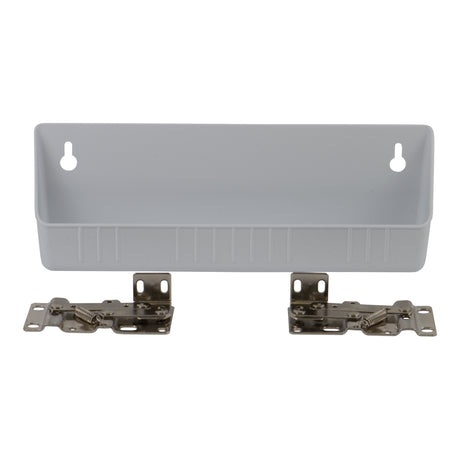

Tip-Out Tray Kits
