Blum  |  SKU: 701140, 652296, 652360

35mm Medicine Cabinet Hinge

$587 Per Bundle

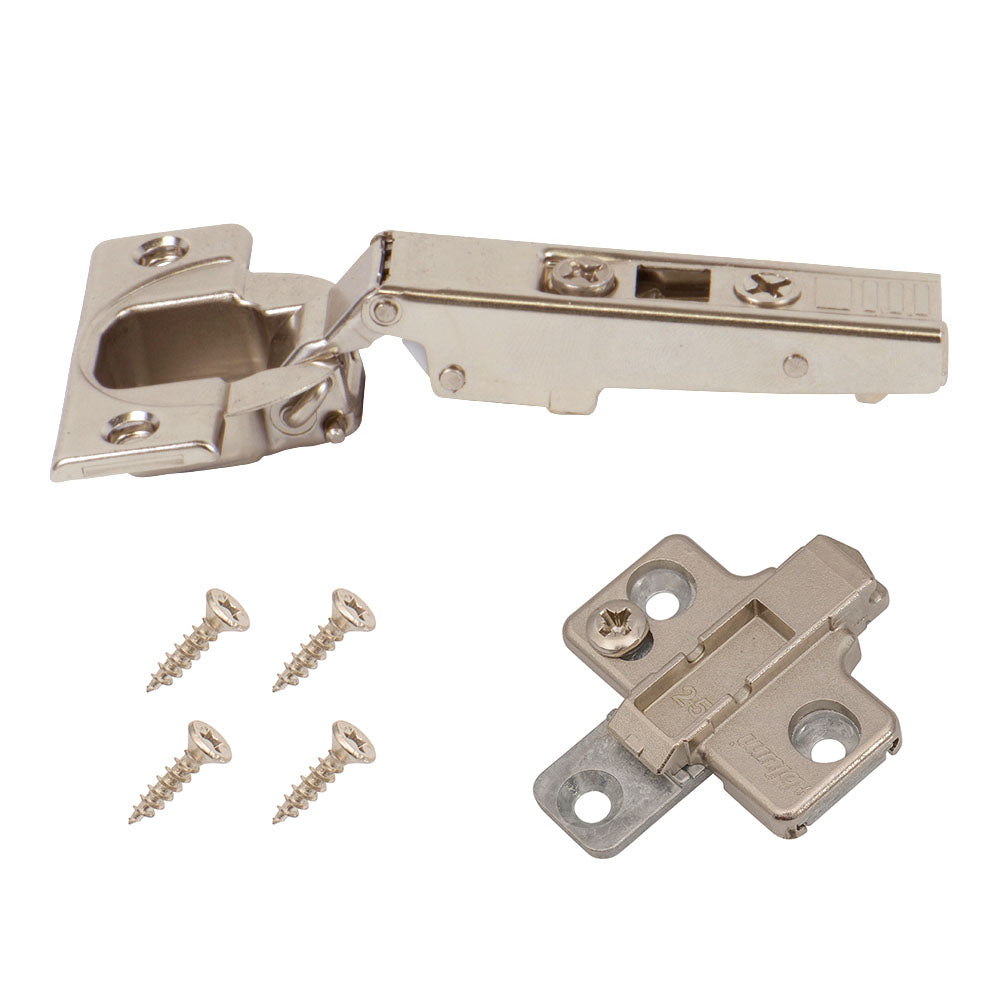

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Hinge Type
Mounting Plate Height

Description

  • Replacement hinge and mounting plate for medicine cabinets.
  • The mounting plate snaps on the hinge and can be removed from the hinge by pressing on a small lever.
  • The hinges are adjustable after installation (in and out, up and down, and side to side) by means of three cam screws.
  • Sold by the bundle. Each bundle includes one hinge, one mounting plate, and four screws for wood or metal.
  • Most medicine cabinet doors will need two sets per door.

Dimensions

  • Hinge cup fits into a 35mm diameter hole (1-3/8").
  • The screw hole center-to-center dimension for the hinge screws is 45mm (approximately 1-3/4").
  • The screw hole center-to-center dimension for the mounting plate screws is 32mm (approximately 1-1/4").

How to Size Your Hinge System

  1. Make sure your current hinge matches the dimensions above. If you have a wood cabinet. It is possible to fill and redrill your existing screw holes if necessary. If you have metal cabinets, your current installation dimensions must match exactly.
  2. Measure your pivot point height using the upper pivot point. See the document found under Downloads for instructions on how to measure this.
  3. Find your pivot point in the list below. The best choice will be the one where your pivot point falls in the middle of the pivot point ranges.
  4. Select the hinge and mounting plate listed next to your pivot point from the drop downs above.
Pivot Height Hinge Mounting Plate
1/2" to 3/4" Straight Arm Hinge 0mm mounting plate
5/8" to 7/8" Straight Arm Hinge 3mm mounting plate
3/4" to 1" Straight Arm Hinge 6mm mounting plate
7/8" to 1-1/4" Straight Arm Hinge 9mm mounting plate
15/16" to 1-1/8" Half Cranked Hinge 0mm mounting plate
1-1/16" to 1-1/4" Half Cranked Hinge 3mm mounting plate
1-3/16" to 1-1/2" Full Cranked Hinge 0mm mounting plate
1-5/16" to 1-5/8" Full Cranked Hinge 3mm mounting plate
1-7/16" to 1-3/4" Full Cranked Hinge 6mm mounting plate
1-9/16" to 1-7/8" Full Cranked Hinge 9mm mounting plate
1-7/8" to 2-1/4" Full Cranked Hinge 18mm mounting plate



Replacing Medicine Cabinet Hinges

  • When replacing hinges on a medicine cabinet it is necessary to replace all the hinges and mounting plates on any for that are you are working on. Mixing different brands of hinges can cause binding problems because they may have slightly different articulations.

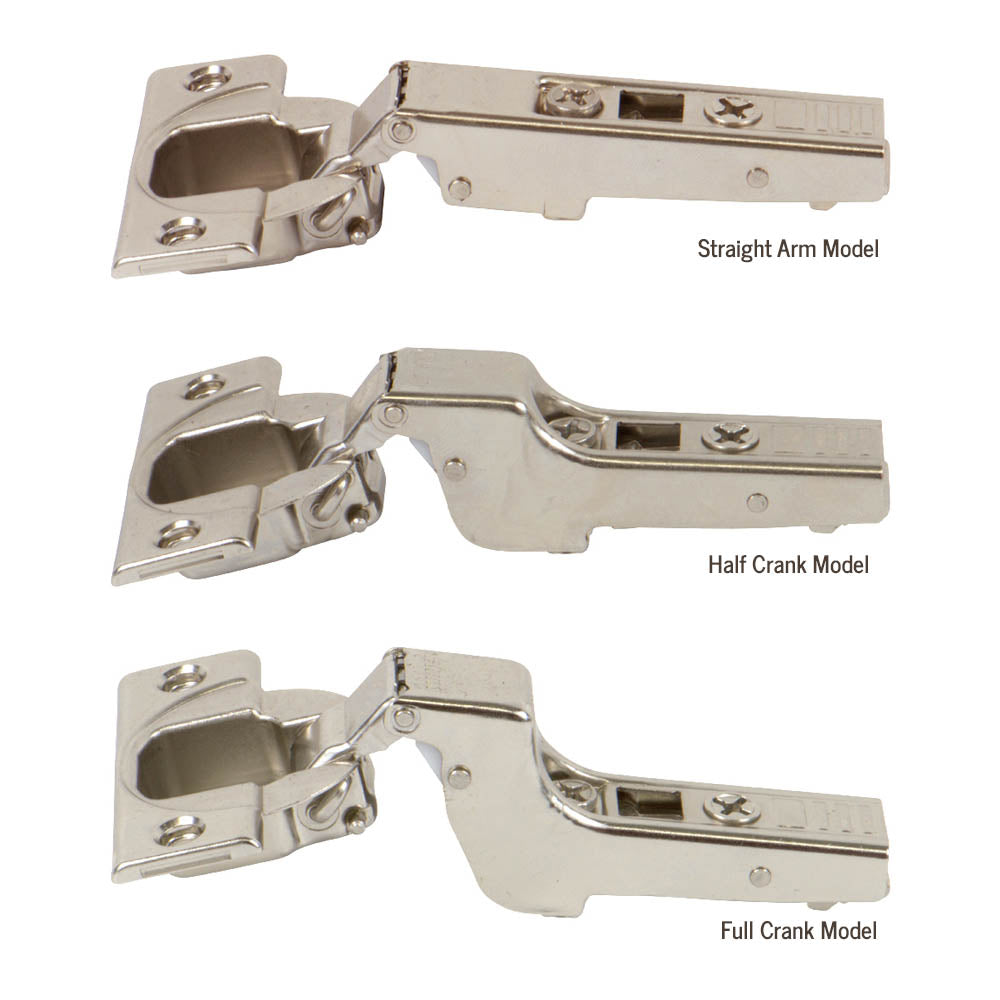

  • The hinge and mounting plate combination that you receive may look slightly different than what you see in the above image. To achieve all of the different pivot point heights we use three different hinge types and five different mounting plate heights.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10027

  • Manufacturer
    Blum
  • Model Number
    Straight Arm Hinge: 71T3550
    Half Crank Hinge: 71T3650
    Full Crank Hinge: 71T3750
    0mm Plate: 175H7100
    3mm Plate: 175H7130
    6mm Plate: 175H9160
    9mm Plate: 175H7190
    18mm Plate: 175H719.22
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Flush Inset, Half Overlay, Full Overlay, Medicine Cabinet
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    110 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Four #6 x 5/8" Flat Head Wood Screws
