Blum  |  SKU: 652300, 652296, 652360

170 Degree Medicine Cabinet Hinge, 45mm Screw Hole Spacing - Bundle

$839 Per Bundle

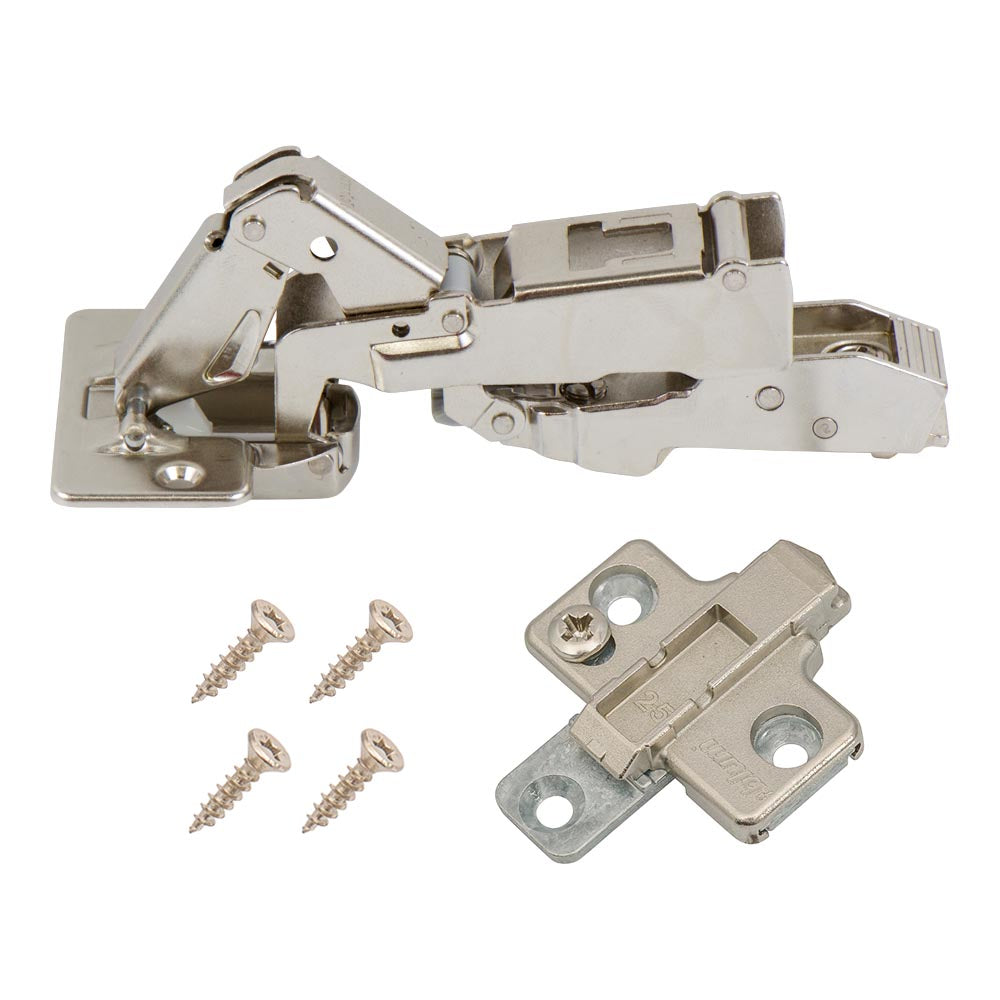

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Description

  • Replacement hinge and mounting plate system for Medicine Cabinets which use a 170 degree wide opening hinge.
  • The hinge is adjustable after installation (in and out, up and down and side to side adjustments).
  • The screw hole center-to-center of the mounting plate is 32mm (approximately 1-1/4").
  • This hinge has a 45mm (1-3/4") screw hole pattern. This is the distance between the screw hole centers on the hinge cup. See the document found under Downloads to view a diagram of the screw hole pattern.

Important Ordering Information

  • This item is sold by the bundle: a bundle includes 1 hinge, 1 mounting plate, and 4 #6 x 5/8" Flat Head Screws for wood or metal.
  • You will normally order two bundles per door
  • When replacing hinges on a medicine cabinet it is necessary to replace all of the hinges and mounting plates on any door that you are working on. Mixing different brands of hinges can cause binding problems because the hinges may have slightly differing articulations.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10039

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71T6550
    0mm Plate: 175H7100
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Medicine Cabinet
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    170 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Four #6 x 5/8" Flat Head Screws
