Blum  |  SKU: 701164, 652296, 652360

Blum Inserta 170 Degree Hinge for Frameless Overlay Cabinets - Bundle

$1045 Per Bundle

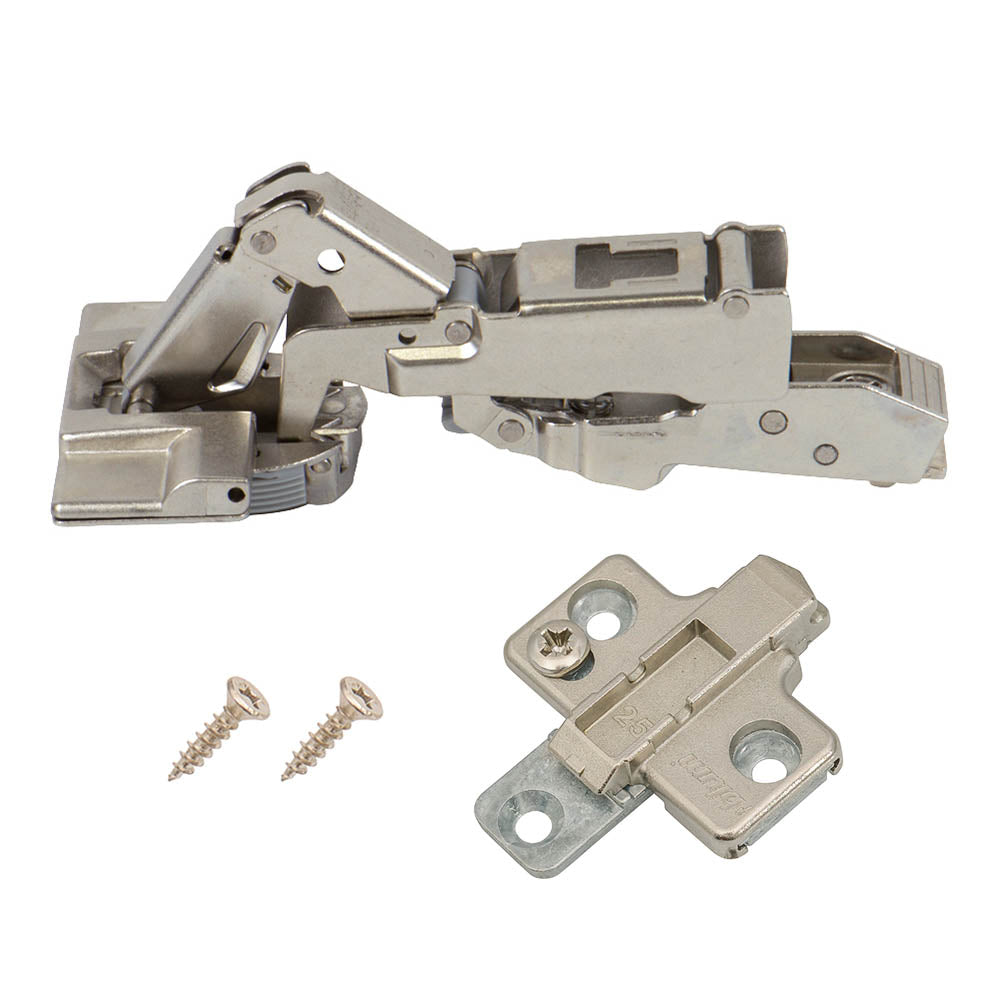

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Mounting Plate Height

Description

  • Blum Inserta 170 degree hinge bundle for overlay doors on frameless cabinets.
  • Inserta hinges install on the door without using screws. On the hinge cup is a cover that acts as a lever. By pressing down on the lever, an anchor device is expanded which secures the hinge. This type of hinge is also known as a tool-free or toolless hinge.
  • This hinge uses two 8mm (5/16") holes where the wood screw holes would normally be to secure the hinge. See the document found under Downloads to view the Inserta screw hole pattern.
  • The hinge and mounting plate attach to each other by snapping on.

What's Included

  • 1 Blum Inserta 170 Degree Hinge
  • 1 Blum Frameless Mounting Plate
    • There are four possible mounting plates for frameless overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" document found under Downloads.
  • Two #6 screws for the mounting plate

Optional Accessories - Available for purchase separately:

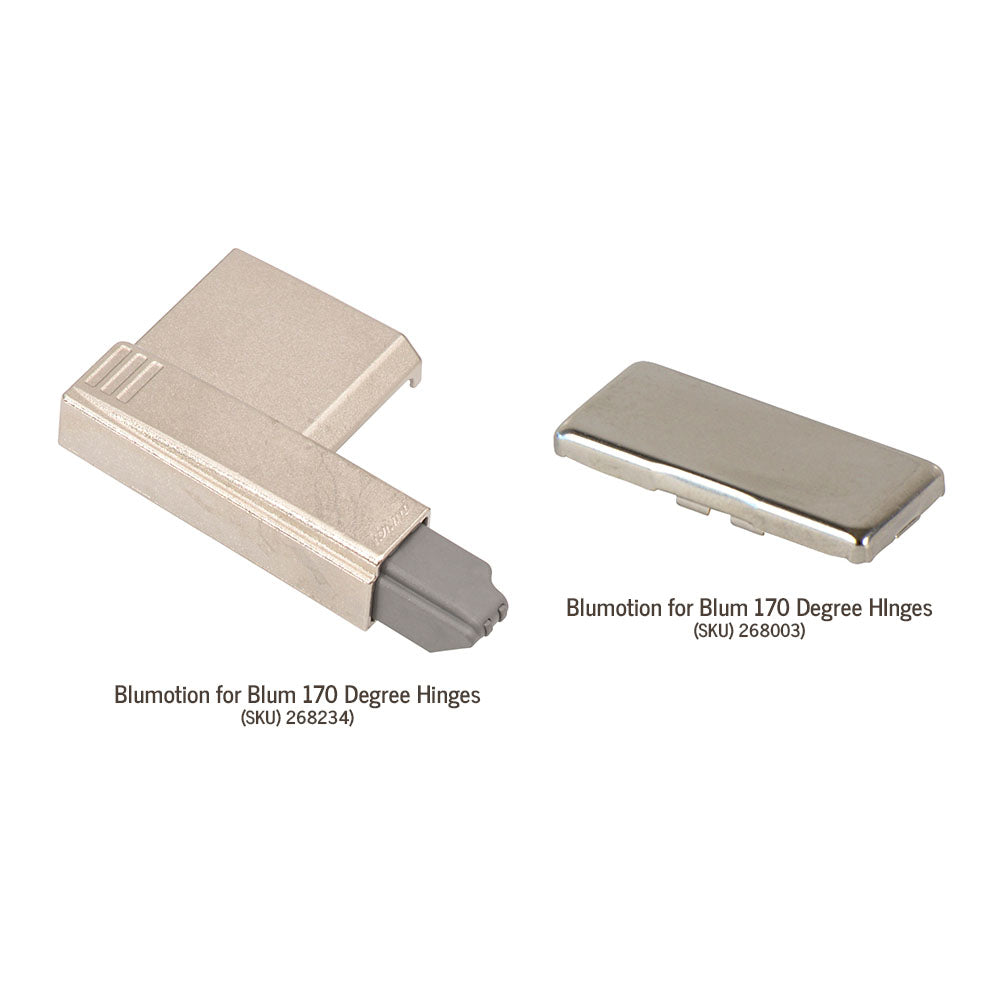

  • Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268003)
  • Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268234)
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Restriction clip. Limits angle of opening to 130 degrees (SKU 652033)
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)
  • 35mm Forstner Bit, for new installations (SKU 204000)
  • Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10121

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71T6540
    0mm Plate: 175H7100
    3mm Plate: 175H7130
    6mm Plate: 175H9160
    9mm Plate: 175H7190
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    170 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Wood Screws
