Blum | SKU: 652000

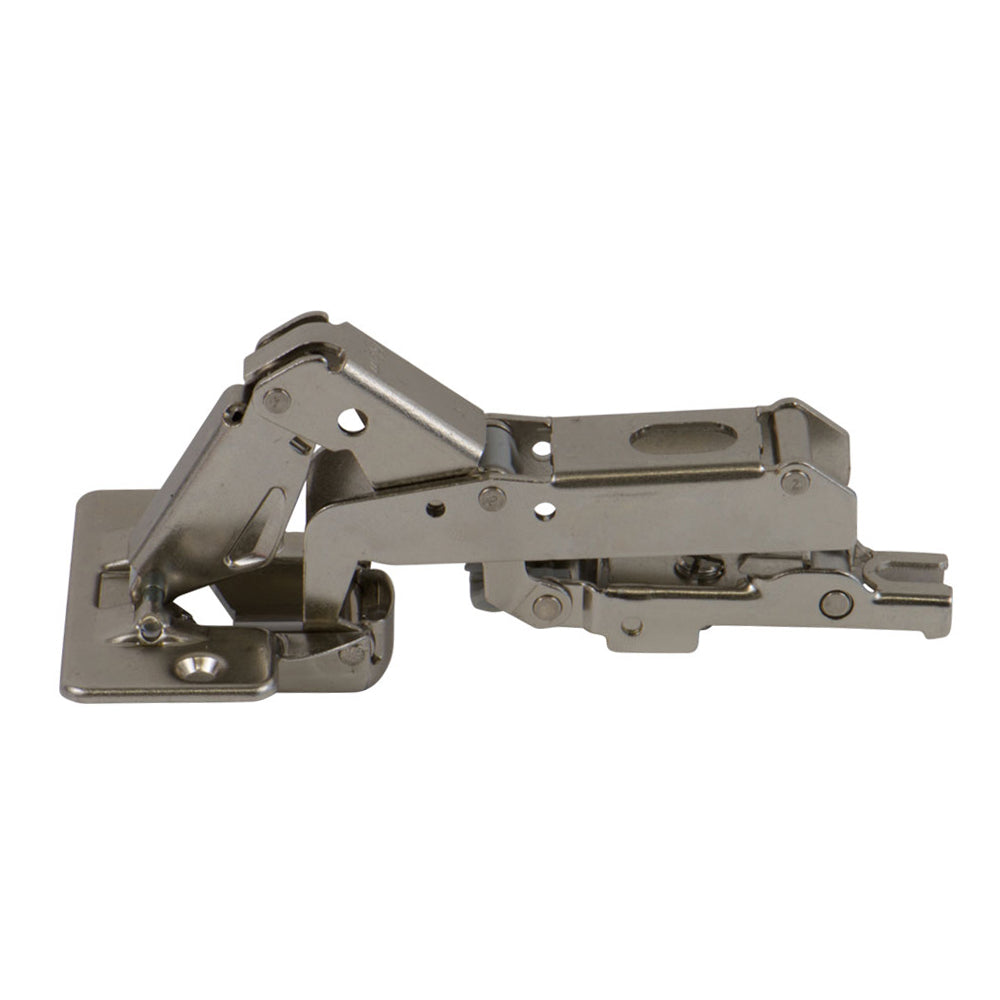

Blum 170 Degree Modul Hinge

Name: Blum 170 Degree Modul Hinge
Brand: Blum
SKU: 652000
Price: 7.76 USD
Availability: InStock

$7⁷⁶Each

Description

Important Note: This page is for the hinge only. Please read below to determine if additional components are required.

Mounting Plates for this hinge must be ordered separately. This is the component which mounts the hinge to the side wall of your cabinet. You can find these under related products below. The options available are:

Blum's Modul Frameless mounting plate (our SKU 652007).
Blum's "Special Face Frame Mounting Plate" (our SKU 701100).

Each hinge comes with two plastic dowels and screws. These are typically used for manufactured wood products such as MDF to provide a stronger hold. If drilling directly into hardwood, you can discard these and use two #6 x 5/8" wood screws (our SKU 652360) instead. These can be found under related products below.
If you are doing new construction we highly recommend that you use Blum's newer Clip Top Hinges rather than these older style Modul Hinges. Some common options can be found under related products below.
PLEASE NOTE: If you are going to use your existing Modul mounting plates to install this hinge the machine screw that attaches the hinge to the mounting plate is part of your existing mounting plate. That screw is not included with this hinge

Accessories available for this hinge:

Touch Latch (SKU 268038)
35mm Forstner Bit, for new installations (SKU 204000)
Ecodrill, installation jig, for new installations (SKU 701000)

Please note: Blum's Modul Face Frame mounting plate has been discontinued. If you have a face frame application, you will need to switch to the new clip top style hinge.

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 652000

CA Prop 65 Warning

Manufacturer

Blum
Model Number

91A6580
Finish Name

Nickel
Material

Steel
Self-Closing

Yes
Opening Angle

170 Degrees
Cup Diameter

35mm
Screw Hole Spacing

45mm (1-3/4")
Mounting Hardware Included

Yes
Mounting Hardware Type

Two 8mm dowels pre-attached with two dowel screws
