Blum  |  SKU: 268770, 652301, 652360

Blum Blumotion 155 Degree Hinge For 3/8" Partial Inset Cabinets - Bundle

$1702 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.


  • Blum Blumotion 155 degree hinge bundle for 3/8" partial inset cabinets.
  • Blumotion is Blum's built-in soft close feature which adds a silent and effortless door closing action.
  • For frameless type cabinets.
  • This setup can be used on face frame type cabinets only by blocking out behind the frame. This is when a block of wood (not included) is installed to the cabinet side wall to be flush with the face frame. This essentially simulates a frameless type cabinet where the hinges are mounted.
  • To view an example of this, see the document found under Downloads titled "Blocking Out a Face Frame".
  • Note: with all installations of this hinge, trial applications are highly advised as unforeseen variables often exist.

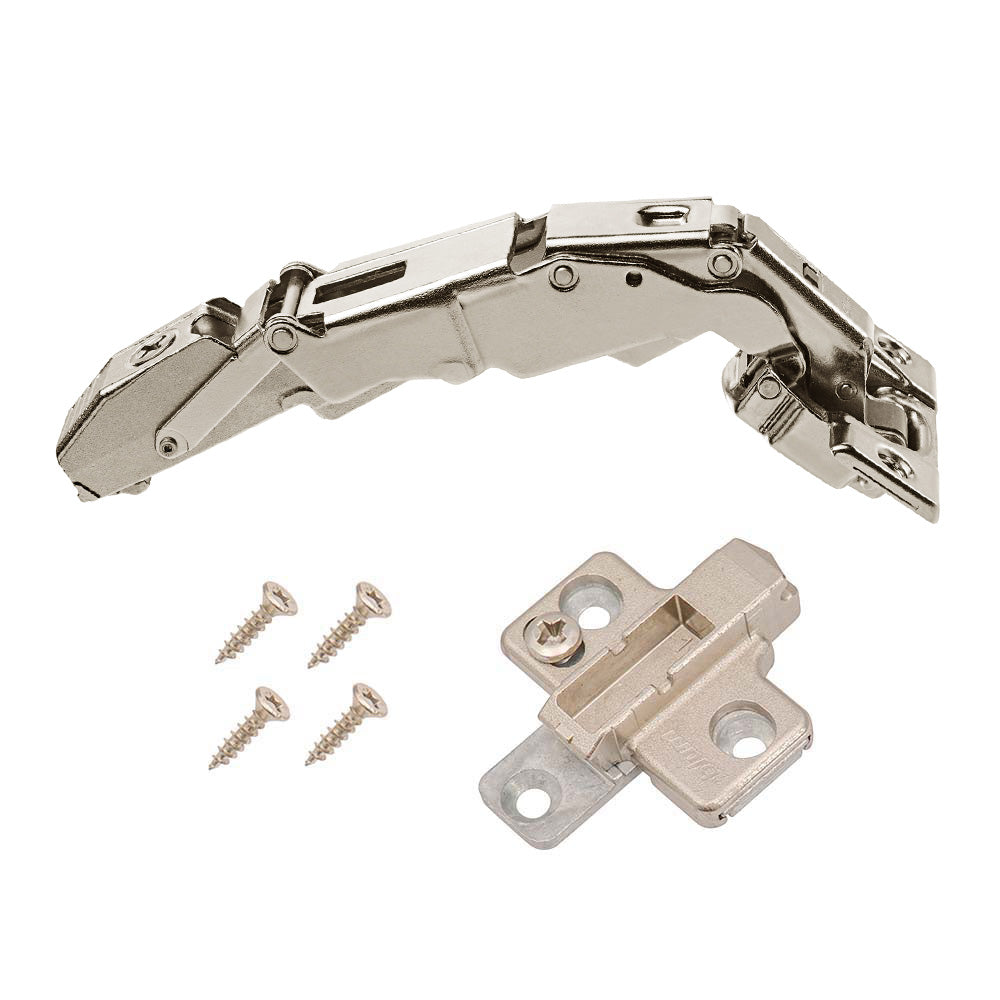

What's Included:

  • 1 Blum Blumotion 155 Degree Half-Cranked Hinge
  • 1 Blum 3mm Frameless Mounting Plate
  • Four #6 screws for the hinge and mounting plate

Available for purchase separately:

  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Restriction clip. Limits angle of opening to 92 or 110 degrees.
    • 92 degree option is our SKU 268774
    • 110 degree option is our SKU 268772
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)
  • 35mm Forstner Bit, for new installations (SKU 204000)
  • Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10114

  • Manufacturer
  • Model Number
    Hinge: 71T7600
    3mm Plate: 175H7130
  • Finish Name
  • Material
  • Cabinet Door Type
    Partial Inset
  • Soft Close
  • Self-Closing
  • Plate Connection Type
  • Opening Angle
    155 Degrees
  • Cup Diameter
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
  • Mounting Hardware Type
    Four #6 x 5/8" Flat Head Wood Screws
