Blum  |  SKU: 652300, 652304, 652360, 268000

Blum 170 Degree Hinge for Face Frame Overlay Cabinets - Bundle

$646 Per Bundle

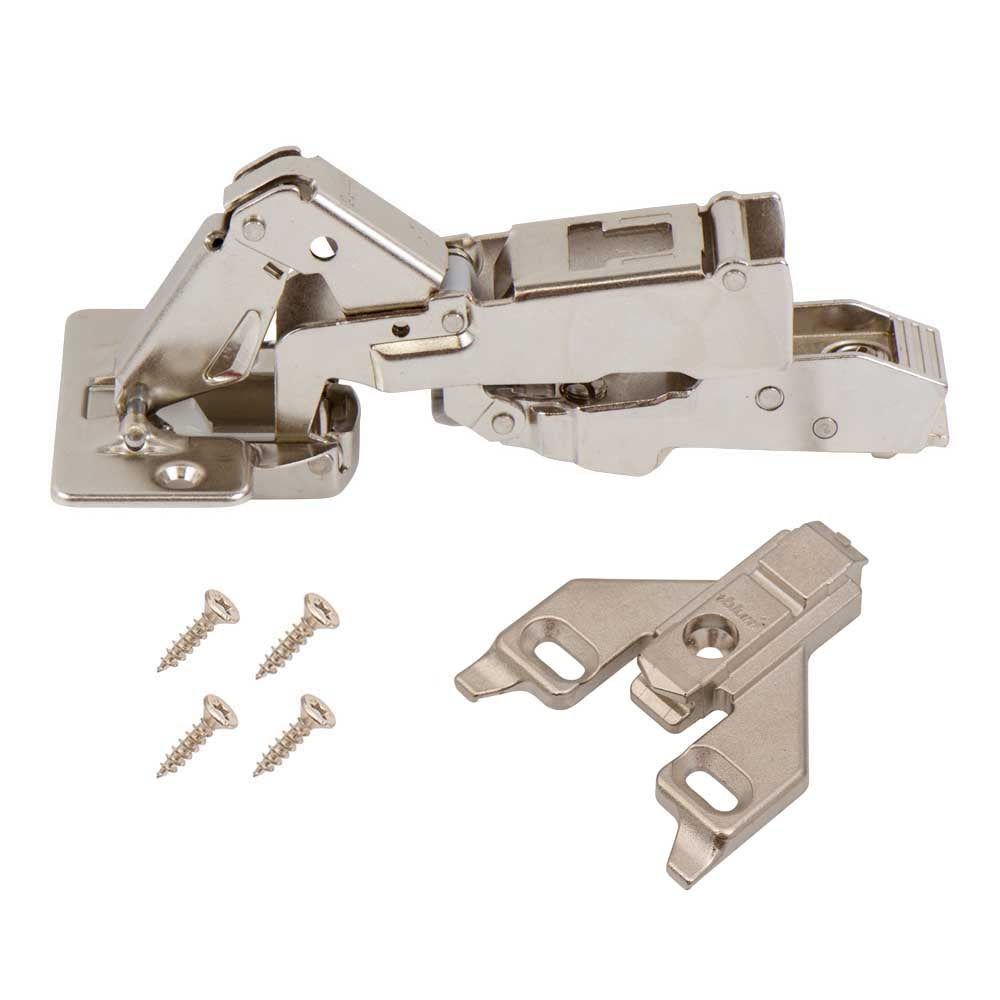

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Hinge Type
Mounting Plate Height


  • Blum 170 degree hinge bundle for overlay doors on face frame cabinets.
  • Available in self-closing and free swinging functionalities.
  • The hinge and mounting plate attach to each other by snapping on.

What's Included

  • 1 Blum 170 Degree Hinge
  • 1 Blum Face Frame Mounting Plate:
    • There are three possible mounting plates for face frame overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" document found under Downloads.
  • Two #6 screws for the hinge
  • Two #7 screws for the mounting plate

    Optional Accessories - Available for purchase separately:

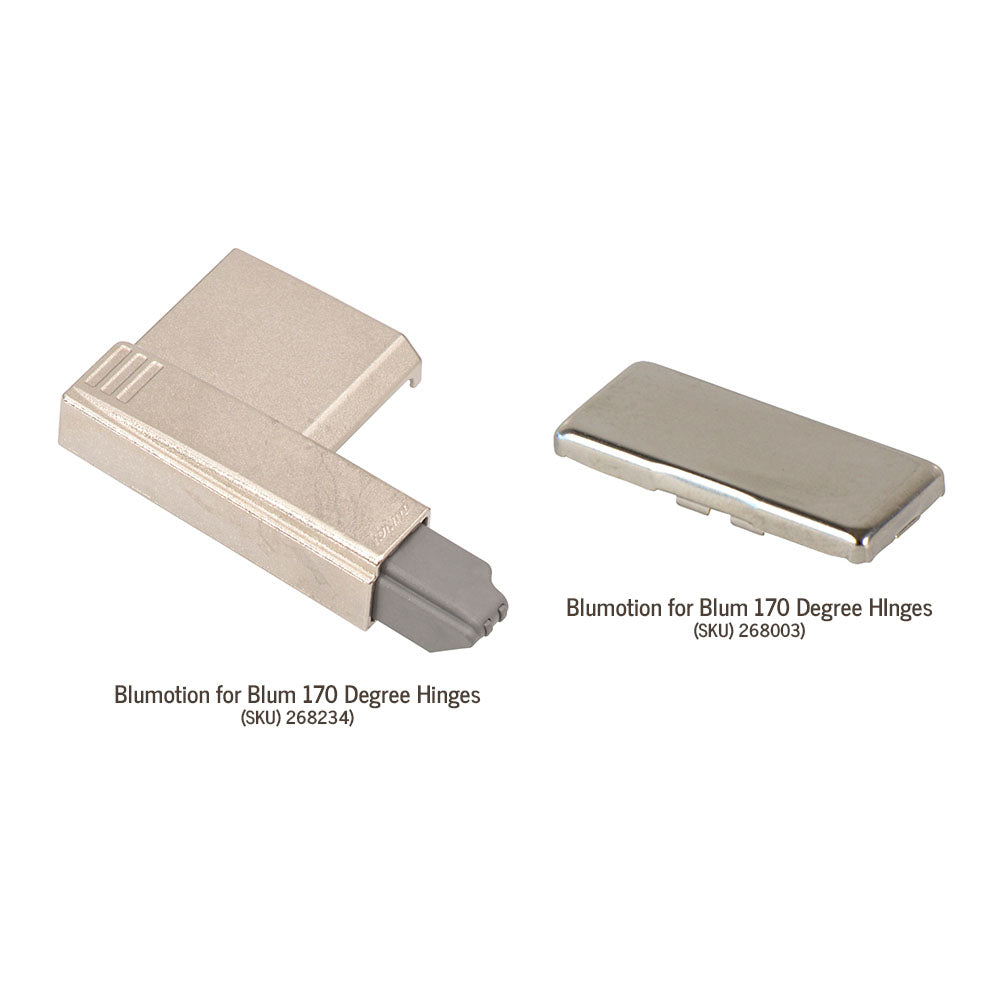

    • Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268003)
    • Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268234)
      • Note: Soft close does not work with free swinging hinge.
    • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
    • Restriction clip. Limits angle of opening to 130 degrees (SKU 652033)
    • Blum Touch Latch for Self-Closing Doors (SKU 268822)
    • 35mm Forstner Bit, for new installations (SKU 204000)
    • Ecodrill, installation jig, for new installations (SKU 701000)

      Store Policies & Information

      Shipping & Delivery
      Contact Us

      We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

      Page Code: B10118

      • Manufacturer
      • Model Number
        Self-Closing Hinge: 71T6550
        Free Swinging Hinge: 70T6550
        0mm Plate: B175L6600.22
        3mm Plate: B175L6630.22
        6mm Plate: B175L6660.22
      • Finish Name
      • Material
      • Cabinet Door Type
        Half Overlay, Full Overlay
      • Soft Close
      • Self-Closing
      • Plate Connection Type
      • Opening Angle
        170 Degrees
      • Cup Diameter
      • Screw Hole Spacing
        45mm (1-3/4")
      • Mounting Hardware Included
      • Mounting Hardware Type
        Two #6 x 5/8" Flat Head Wood Screws for the hinge and two #7 x 5/8" Flat Head Wood Screws for the mounting plate
