Acorn Mfg.  |  SKU: 778222

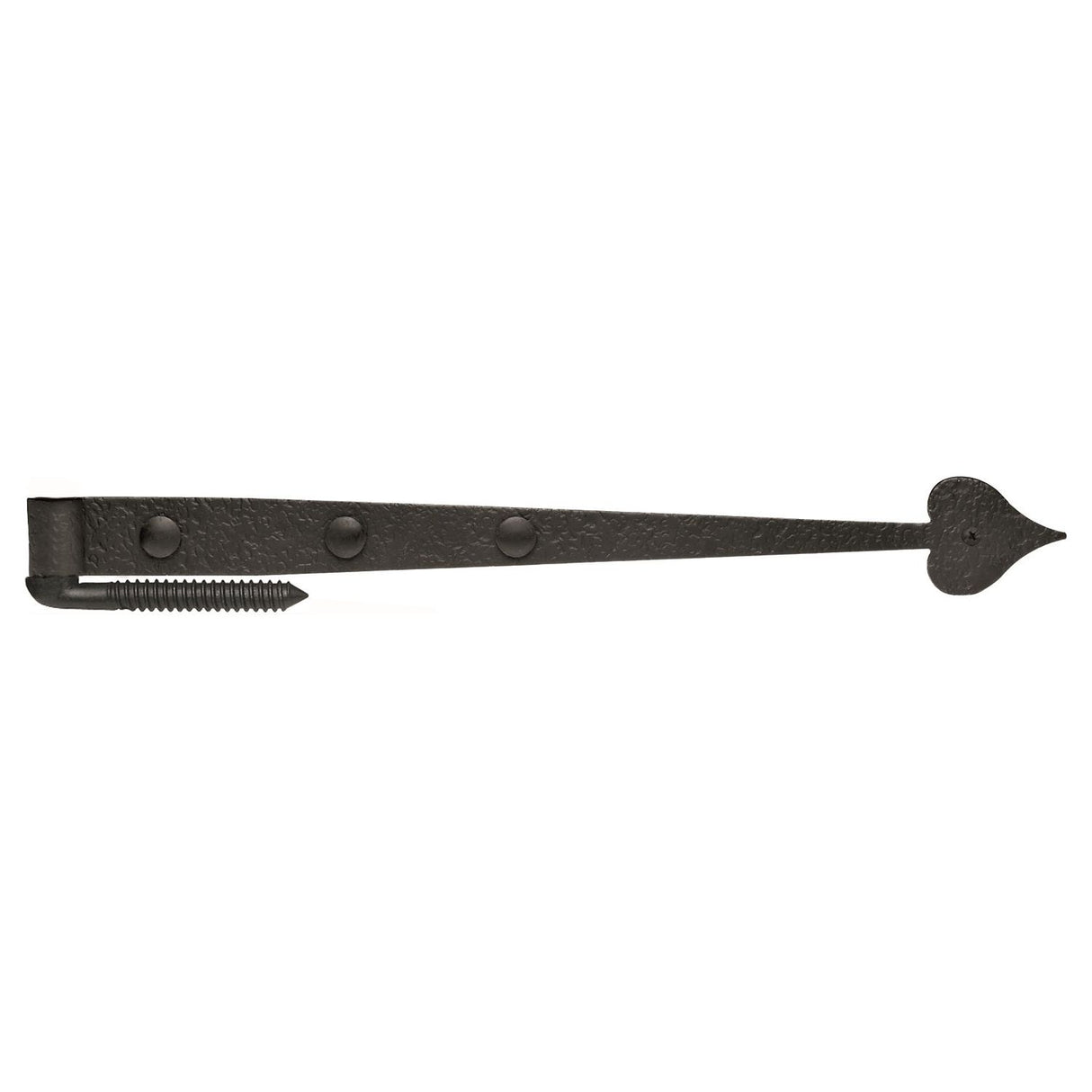

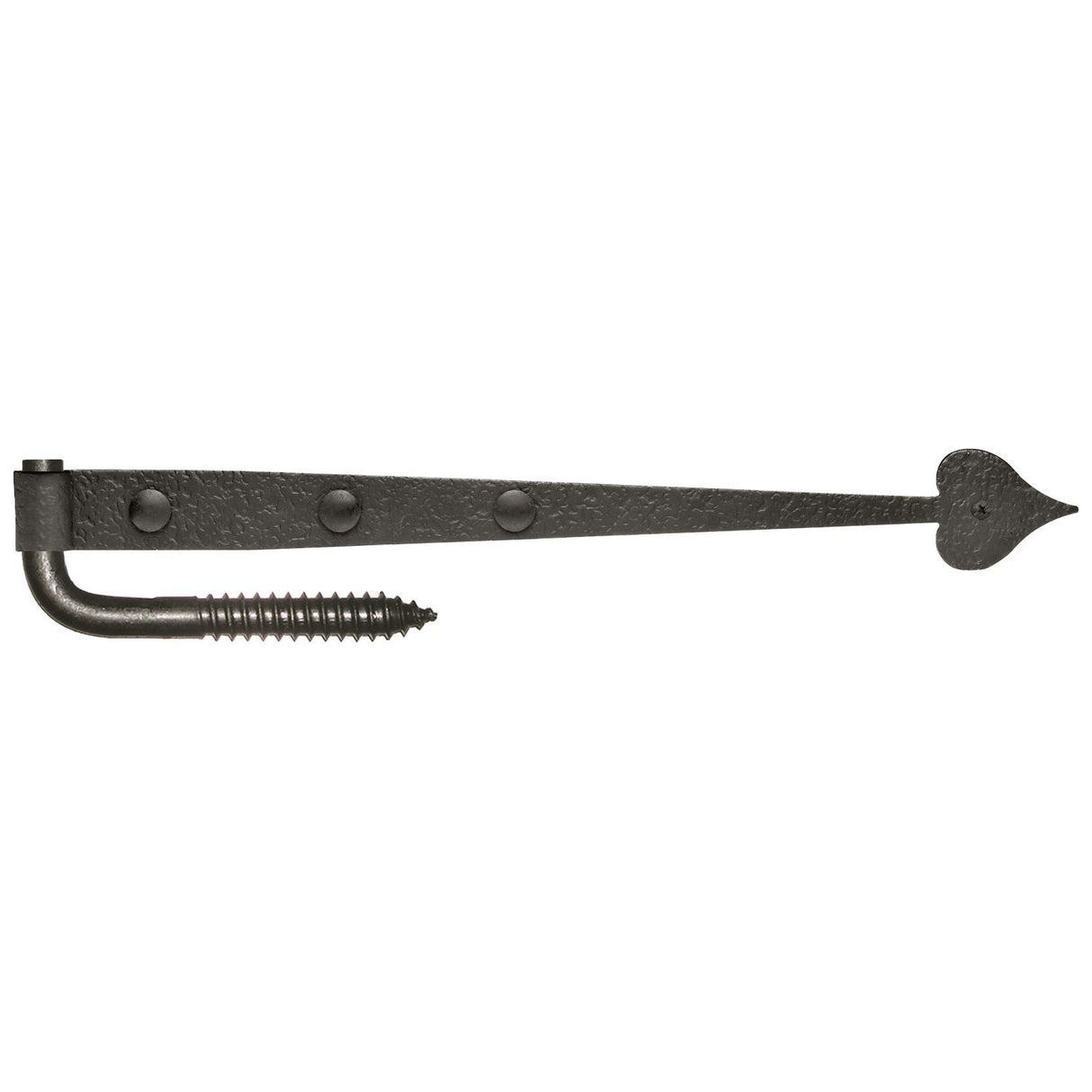

Pintle Type Strap Hinge with Carriage Bolts

$5710 Each
Strap Length

Description

  • Heart style strap hinge with a pintle end that fastens to wood or masonry (with masonry anchor, not included)
  • Pintle style mounting allows gate to be removed by lifting off pintle
  • With "pintle style mounting" your gate can be installed so it can swing both ways (in and out) or it can be installed so that it opens only one way (either in or out).

17" Hinge

  • Hook Size: 1/2" x 3-3/8"
  • Pin Diameter: 7/16"
  • Screw Size: 1/4" x 3-3/8"
  • Strap Width: 1-1/2"

19-7/8" Hinge

  • Hook Size: 3/4" x 5"
  • Pin Diameter: 9/16"
  • Screw Size: 3/8" x 5"
  • Strap Width: 1-9/16"

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10695

  • Manufacturer
    Acorn Mfg.
  • Finish Name
    Black Iron
  • Material
    Steel
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    3 Black carriage bolts (plus nuts washers) & black square head wood screw

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet
Bean Style Pintle Strap Hinge
View details

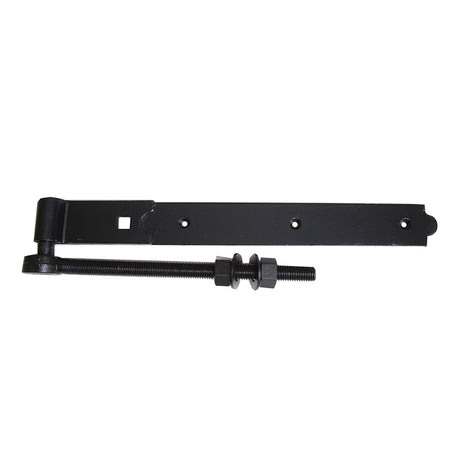

Bolt & Strap Pintle Hinge Back
View details
Black Iron Bean Style Pintle Hinge
View details

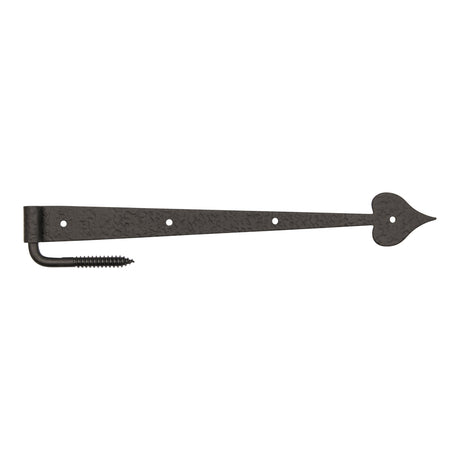

Pintle Type Strap Hinge
