- Spring loaded pivot set, free swings between 90 & 31 degrees, self closes at 30 degrees.
- Do not open beyond 90 degrees or damage to the pivot will occur.
- For use on wood or metal doors up to 100 lb., not larger than 3.5 feet wide and 7 feet tall.
- Camtrol action makes possible a snug application without rounding of the door edge.

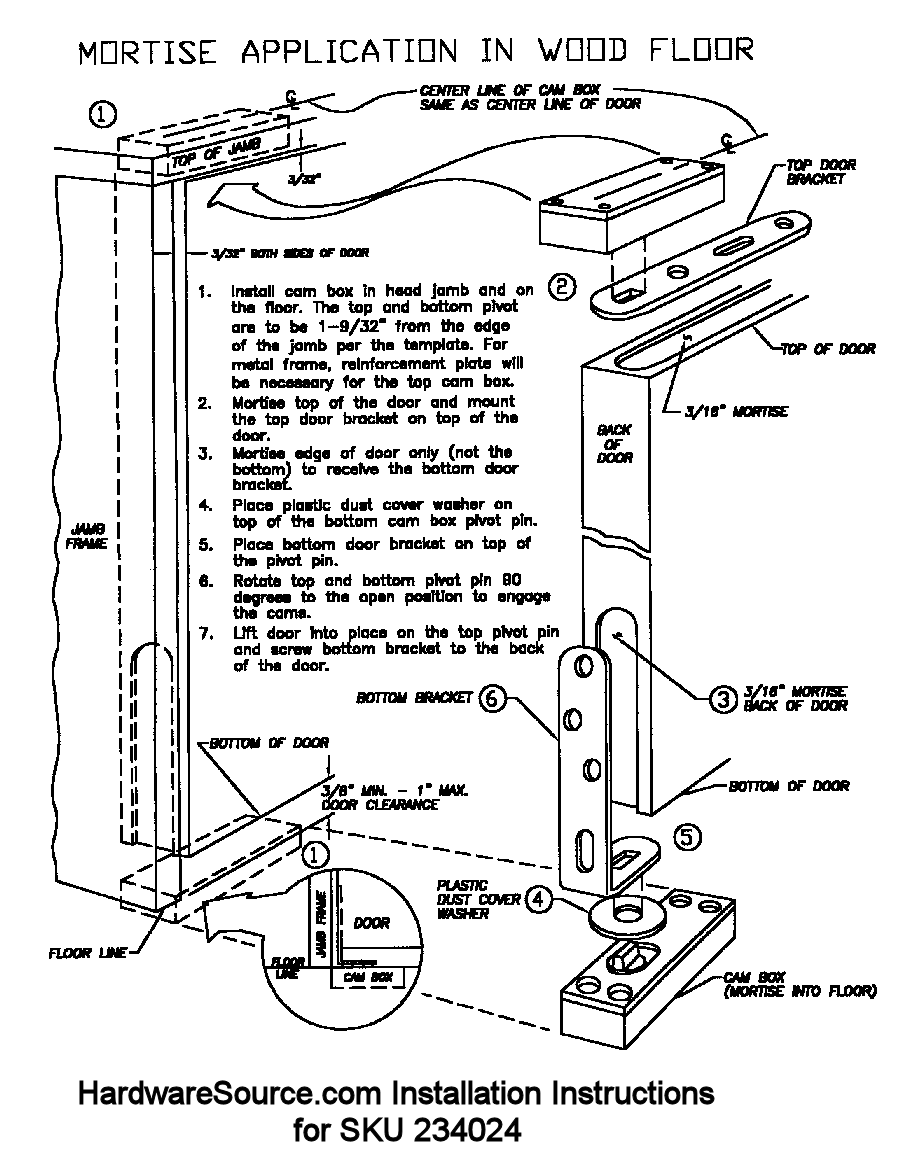

- Cam box mortises into wood floor.
- For door thicknesses of 1-3/8" to 1-3/4".
- Cam boxes are brass, door brackets are steel (satin chrome plated), cam box trim plates are brass (satin chrome plated).
- Each cam box measures 3-7/8" by 1-1/4" by 29/32" tall.
|Finish Name||Satin Chrome|
|Weight Rating||100 lbs Per Set|
|Mounting Hardware Included||Yes|
|Mounting Hardware Type||Matching Wood Screws|
|California Residents||Prop 65 Warning|
