- Bolt-on Gorilla Hinge.
- Hinge features a grease fitting for ease of lubrication.
- Made for installations where the post or frame is flush with the gate or door.

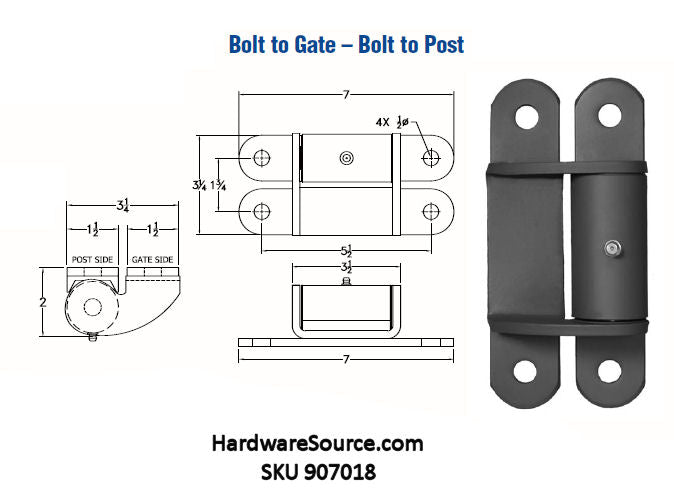

- Hinge measures 7" tall by 3-1/4" wide. For more detailed dimensions, see dimensional diagram below.
- Gorilla gate hinges are sold individually but weight rated by the pair. You will normally order 2 or more hinges per door or gate.
- Grade 5 or better bolts must be used for attachment.
- Note: we do not stock grade 5 or better bolts, they must be purchased from an alternate source.
Are your gate posts or door frames flush with the gates or doors? If so, the bolt-on gorilla hinge is an ideal choice. Capable of mounting up to 1,000 lb. gates or doors, these steel hinges can be used in both commercial and residential applications.
The bolt-on gorilla hinge is a durable, reliable option for gates and doors of all types. The hinge measures 7" tall by 3 ¼" wide and has roller bearings. These are specifically made for doors and gates that are flush with their frames or posts. The bolt-on gorilla hinge will install easily and support medium and heavyweight doors and gates. It also features a grease fitting for ease of lubrication. When you receive these steel hinges, they'll be prime coated for painting. Use the steel bolt-on gorilla hinge on gates to the backyard, farm, warehouse, private property, dock, and other locations. You can also use them on door frames wherever they're flush with the door. We recommend using four Grade 5 or better 1/2" diameter bolts. Bolts must be of this caliber to achieve the listed weight rating. For specific information on the bolt-on gorilla hinge, download the Dimensional Diagram located on this page. Please note that these hinges are sold individually, not as a pair.
These steel hinges are in stock and ready to ship within the next business day. Need clarification about these before ordering? Use the LiveChat system on our website to speak directly with one of our online agents. Should this hinge not be the correct option for you, our online agent will help you find the perfect one for your gate or door. If you have any other questions about the bolt-on gorilla hinge or would like to learn more about our expansive selection of weld-on gate hinges, please feel free to contact us for additional information.
|Finish Name||Primed for Painting|
|Weight Rating||1000 lbs per pair|
|Weight Rating||1000 lb per pair|
|Heavy Duty Hinge Type||
|Mounting Hardware Included||No|
|Mounting Hardware Type||Four 1/2" Diameter Bolts|
|California Residents||Prop 65 Warning|
