- This Blum Clip Top hinge is for 45 degree cabinets.
- Made for either an overlay or inside corner installation.
- Thee-dimensional adjustment after installation.
- For doors up to 19mm (3/4") thick.

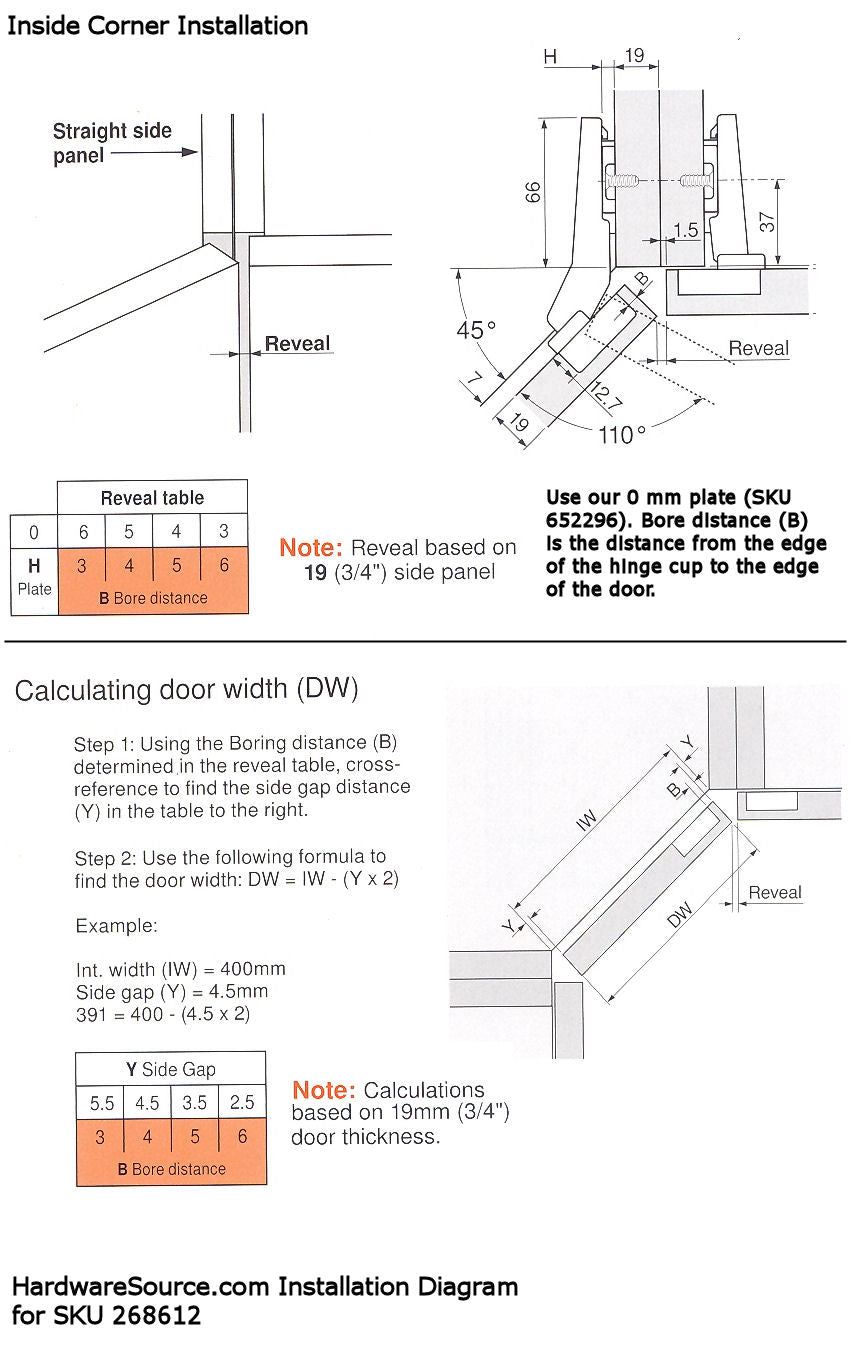

- See the links below to view diagrams for both types of installations.
|Model Number||79T5550 (Hinge)
175H7100 (0mm Plate)
|Cabinet Door Type||
|Plate Connection Type||Clip-On|
|Opening Angle||110 Degrees|
|Screw Hole Spacing||45mm (1-3/4")|
|Mounting Hardware Included||No|
|Mounting Hardware Type||Four #6 x 5/8" Wood Screws For The Hinge and Mounting Plate|
|California Residents||Prop 65 Warning|
