Overview
- Swing clear hinge with ball bearings.
- Use swing clear hinges wherever doors are required to swing completely clear of the door opening. (door must open to at least 95 degrees to swing completely clear).
- This hinge is made to fit on doors that are 1-3/4" thick.
- Improves clearance for wheelchairs, carts, etc.
- Hinge is reversible for left or right swinging doors. To reverse the hinge; tap out the hinge pin, tap out the bottom plug, flip the hinge over and reassemble the bottom plug and hinge pin.
Specs
| Finish Group | Bronze Tones,Brushed Chrome / Aluminum,Other |
| Material | Steel |
| Cabinet Door Type | |
| Cabinet Type | |
| Overlay | |
| Size (H x W) | 4 - 1/2" |
| Grade | Architectural |
| Corner | Square |
| Bearings | Ball Bearing |
| Removable Pin | Yes |
| Decorative Tips | No |
| Mounting Hardware Included | Yes |
| Mounting Hardware Type | Matching Wood Screws |
More Info
Reviews
You're reviewing Ball Bearing Swing Clear HingeNo Reviews Yet
Product Questions
1 Question asked about Ball Bearing Swing Clear Hinge
Q
Richard Brodman • 03/18/2018, 8:45:25 AM

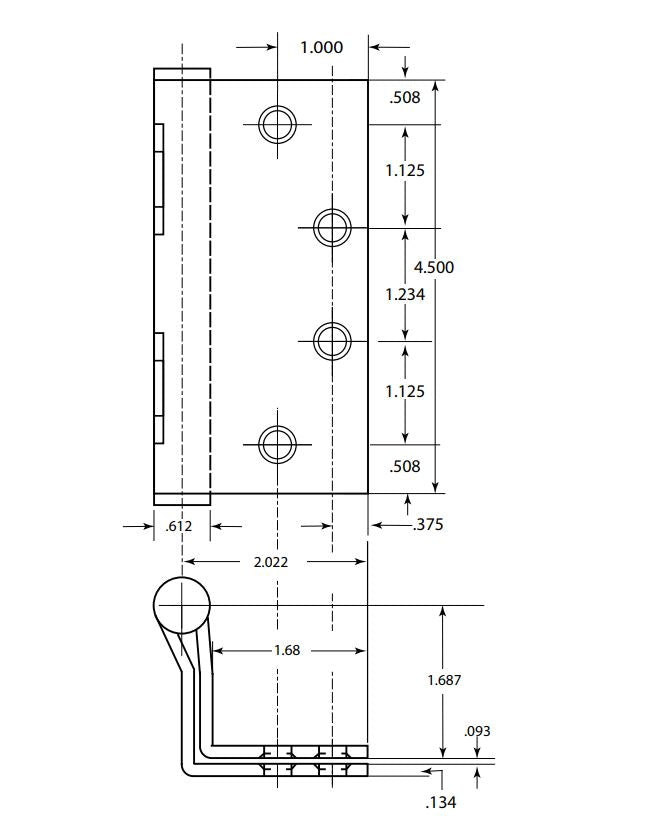

The only dimension given is the width of the hinge 4 1/2". Could you provide me with a CAD showing all the dimensions of this hinge?
A
03/19/2018, 10:35:47 AM
Detailed specifications can be seen here: https://www.hardwaresource.com/amfile/file/download/file_id/2583/product_id/9771/
