4" x 4-1/4" Spring Butt Hinge, Johnson Pattern 4" x 4-1/4" Spring Butt Hinge, Johnson Pattern
    4" x 4-1/4" Spring Butt Hinge, Johnson Pattern
    Click to zoom
    Purchase 4" x 4-1/4" Spring Butt Hinge, Johnson Pattern
    SKU #: 760308 Not Rated Yet

    4" x 4-1/4" Spring Butt Hinge, Johnson Pattern

    $12.97 Each
      HardwareSource - Checkmark In Stock  & Ships by the next day!
      In Stock

      Overview

      • Combination corner hinge: one leaf has square corners, one leaf has 5/8" radius corners.
      • This hinge is made to fit Johnson doors with Johnson's special screw hole pattern.
      • Spring tension is easily adjustable.
      • MADE IN USA.

      Specs

      Brass Tones
      Brass Tones
      Satin Brass
      Steel
      Single Acting
      Combination
      Yes
      Comes with 4 wood screws and 4 machine screws

      Reviews

      You're reviewing 4" x 4-1/4" Spring Butt Hinge, Johnson Pattern
      Rate Product
      No Reviews Yet

      Product Questions


      2 Questions asked about 4" x 4-1/4" Spring Butt Hinge, Johnson Pattern

      Q Michael P. Spong • 10/11/2018, 10:34:09 PM Okay, looks like these might work for my SDRD2068 hinges from 30 yrs ago as I need 4" x 4-1/4" hinges. Do they come in RH/LH or do you just reverse them? My hinges sit just the opposite of your image and think they might be referred to as "LH" if I remember my door hanging days so long ago. I'd rather have the adjustment on the top, but if they only come one way, that's fine. Glad I did a bit more searching on your site. Mike Spong

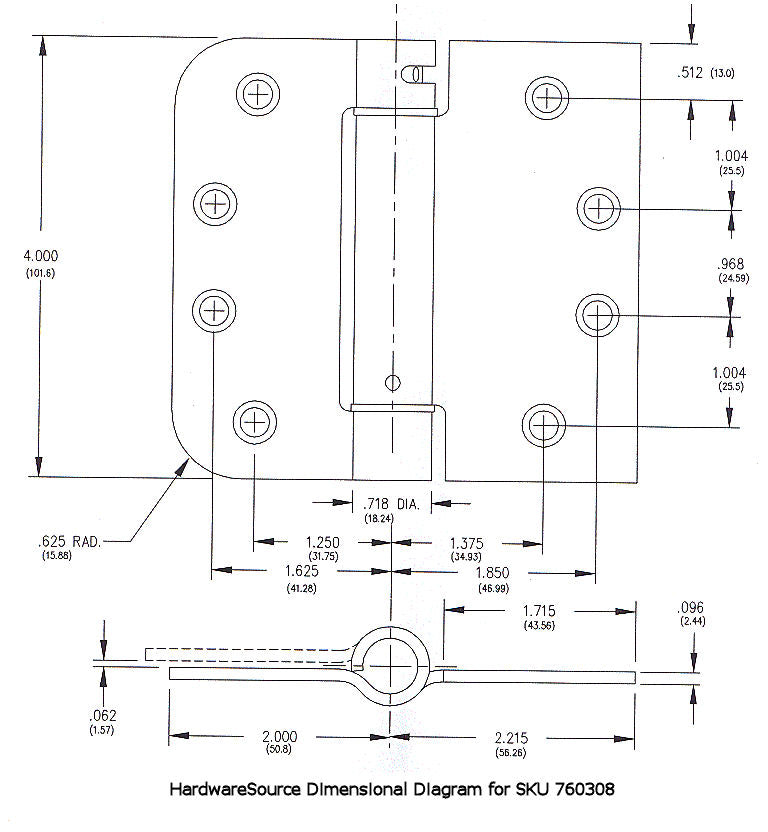

      A 10/12/2018, 10:17:55 AM Hi Michael! These are not handed and you would just flip it upside down so that adjustment would have to be on the bottom. You can reference the dimensional diagram to ensure you can line it up. https://www.hardwaresource.com/amfile/file/download/file_id/1640/product_id/5398/
      Q Marshall • 12/05/2018, 7:49:35 PM Is it possible to get this in a brushed nickel finish? All the hardware in my home - knobs, hinges, drawer pulls, light fixtures - are brushed nickel.
      A 12/06/2018, 8:57:00 AM Hi Marshall! Unfortunately the manufacturer only makes this particular hinge with the unique pattern in a Satin Brass.
