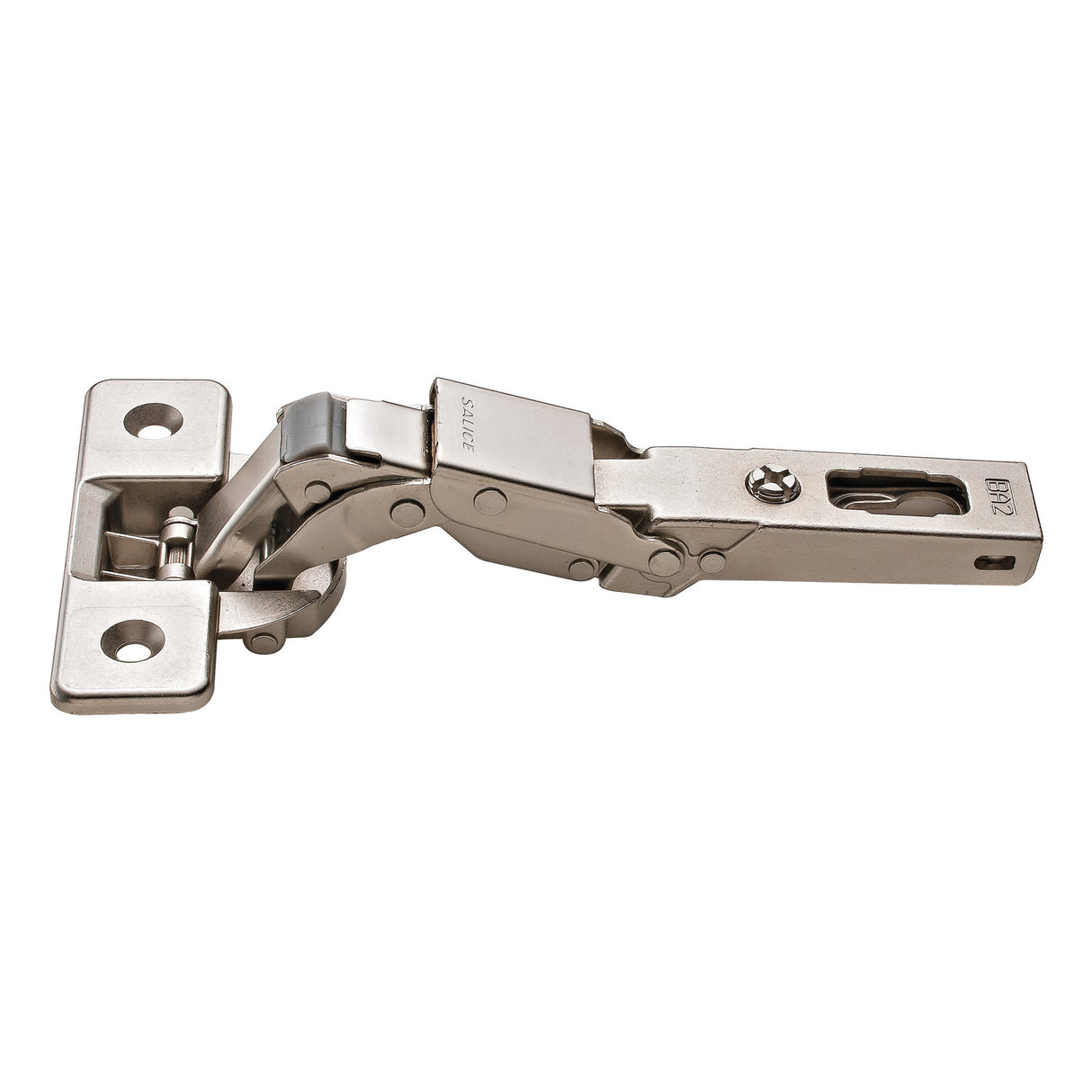

Salice Special Profile Hinge - Hinge Only
Couldn't load pickup availability
Description
Description
- European hinge designed by Salice for doors with special profiles or for doors with special drilling requirements.
- Note: This is for the hinge only and does not include the mounting plates. If you need the complete unit with mounting plate and screws please visit our bundle page here.
Installation
- Hinge cup size is 35mm (1-3/8"). Cup depth is 9mm (11/32") minimum.
- Door opening angle is 110 degrees
- Works for bore distances from 3mm (1/8") to 18mm (23/32")
- Works for door thicknesses from 16mm (5/8") to 26mm (1-1/32")
Available for purchase separately:
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- 35mm Forstner Bit, for new installations (SKU 204000)
- Ecodrill, installation jig, for new installations (SKU 701000)
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 796803
-
Manufacturer
-
Finish Name
-
MaterialSteel
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle110 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
