Truth Stainless Steel 4 Bar Hinge, Standard Duty, 401 Series
Couldn't load pickup availability
Description
Description
- Truth 401 series, 4 bar hinge is for casement windows.
- Designed for residential projects requiring relatively light window sections.
- Maximum weight of 65 lbs for a 32" wide window. Fits sash widths of from 12" to 36"
- Nominal size is 12". Actual length is 12.156".
- 4 Bar Standard Duty Window Hinges, for casement windows and for projected vents with a lip on the outside edge.
- 4 Bar Hinges are designed to project the sash out as it pivots to avoid interference between a lipped vent and frame.
- These hinges are non-handed, they work on both left and right opening windows. Arm swings in both directions so the hinge can be used in either hand.
- Features set screw friction adjustment.
- Hinge stops at 90 degrees.

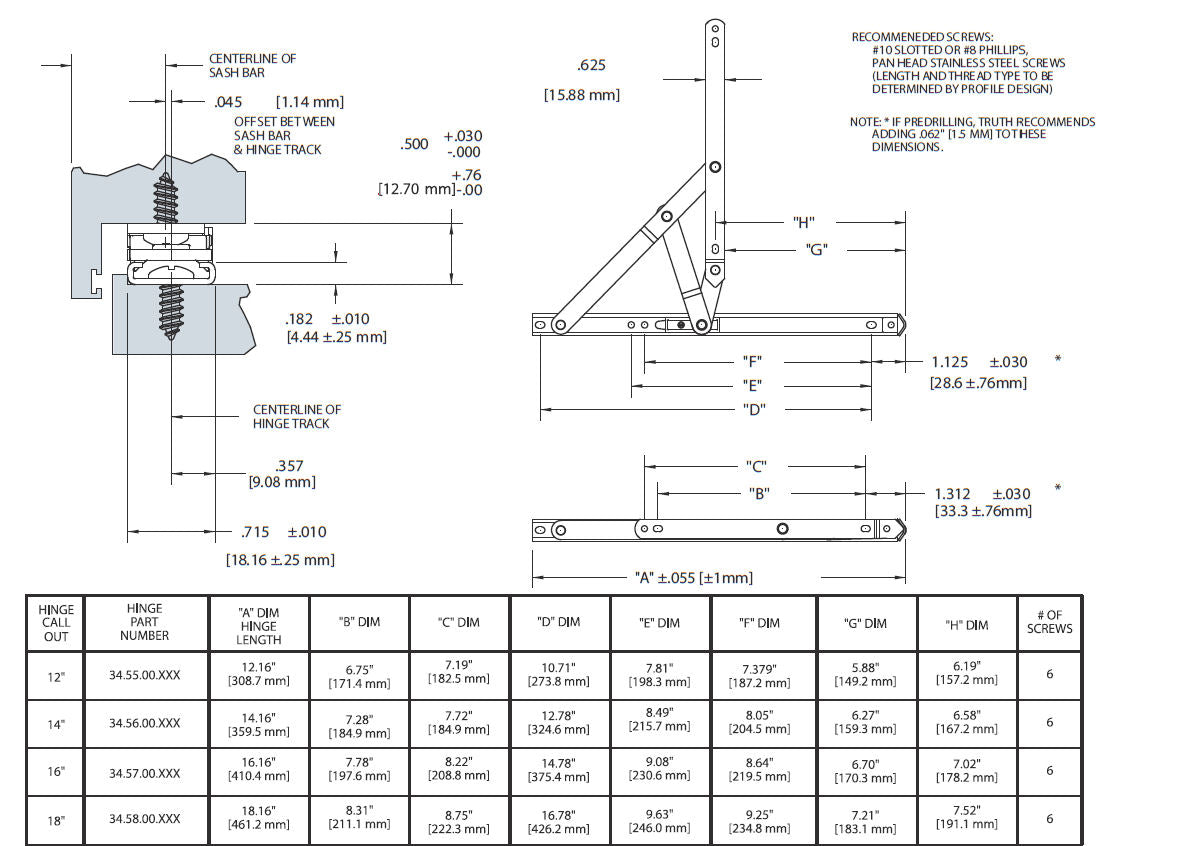

- See the document found under Downloads for dimensions.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 997028
-
Manufacturer
-
Model Number
-
MaterialStainless Steel (304)
-
Weight Rating
-
Window TypeCasement Windows
-
Track Length
-
Mounting Hardware Included
-
Mounting Hardware Type
