Overview
- Hinge is completely concealed when door is closed
- Maximum door opening is 180 degrees

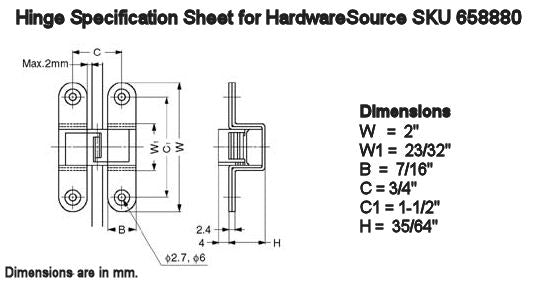

- Click on specification document found under Downloads for detailed dimensions
- Hinge is sold by the each. Usually two each are needed per door.
- Made entirely of type 304 stainless steel
- Maximum door size is 17-23/32" wide by 27-9/16" tall.
| Manufacturer | Sugatsune |
| Finish Name | Satin Stainless Steel |
| Material | Stainless Steel (304) |
| Door Thickness | 7/8" |
| Mortise Depth | 35/64" |
| Weight Rating | 5.72 lbs per pair |
| Plate Size (H x W) | 2" x 7/16" |
| Mounting Hardware Included | Yes |
| Mounting Hardware Type | Flat head stainless wood screws are included |
| California Residents | Prop 65 Warning |
