- Titanium finish European style hinge bundle.
- Straight arm model for frameless overlay doors.
- Features Silentia soft-close to close doors softly and quietly.
- Titanium plating over steel base material. This plating provides a nice aesthetic while offering superior corrosion resistance.
- Please note that these hinges do have some nickel parts that are visible. For example, the adjustment screw, rivet ends and some visible internal parts are nickel finish.

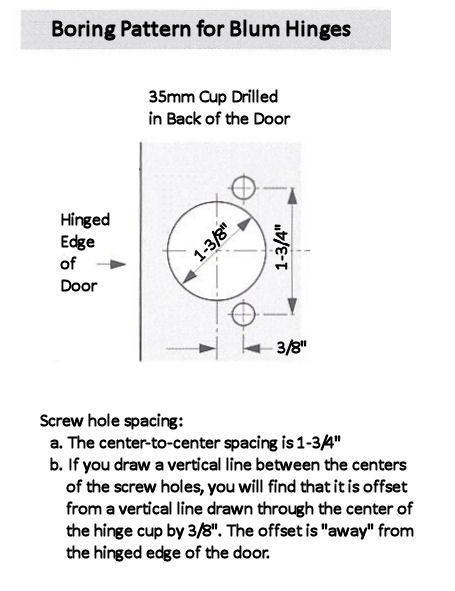

- Hinge cup installs in a 35mm (1-3/8") diameter cup drilled in the back of the door
- Cup depth needs to be a minimum of 11 mm deep (7/16").
- This hinge and the proper mounting plate will accommodate any overlay from 1/8" to just under 13/16.
- European hinges are a two part hinge, made up of the hinge and a mounting plate. Use the document found under Downloads for information on how to choose the correct mounting plate.
- Each hinge comes with two plastic dowels and two dowel screws
- Dowels and dowel screws are recommended for doors that are made from pressed or manufactured wood
- Dowel screws are regular wood screws that are a slightly shortened and blunt version of a wood screw.
- For solid wood doors, wood screws (no dowels) are recommended.
- For solid wood doors, discard the plastic dowels and either use the dowel screws or purchase regular bronze #6 flat head wood screws (2 each per hinge, our SKU 286255)
- 1 x Titanium Finish Soft-Close Straight Arm European Hinge
- 1 x Frameless Mounting Plate (two options available).
- 2 x Plastic Dowels and Dowel Screws (preattached to hinge)
- 2 x #6 Screws for Mounting Plate
|Model Number||Hinge: C1R6AD6
2mm Plate: BAR3R26
12mm Plate: BAR3RC6
|Cabinet Door Type||
|Plate Connection Type||Clip-On|
|Opening Angle||110 Degrees|
|Screw Hole Spacing||45mm (1-3/4")|
|Mounting Hardware Included||Yes|
|Mounting Hardware Type||Two plastic dowels and dowel screws for the hinge cup and two #6 screws for the mounting plate.|
|California Residents||Prop 65 Warning|
|HS SKU||Hinge: 268704
2mm Plate: 268713
12mm Plate: 268714
