Soft Close Add-On Device for 48mm 110 Degree Hinge

Overview

• Device slows door action to close the door quietly
• Damping force is adjustable by means of a knurled screw at the end of the device

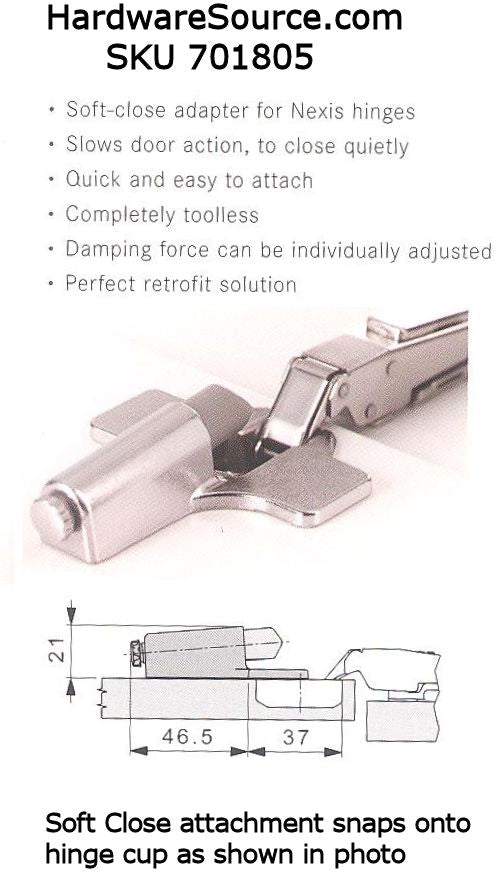

• Installs easily by snapping on to the hinge cup area
• Click on link below for more installation information
• No fasteners required
• Made from die cast, nickel plated material with nylon plunger

Soft Close Add-on Device made to fit the following products:

• SKU 701802  110 Degree Straight Arm Hinge with 48 mm Screw Hole Spacing
• SKU 701803  110 Degree Half Cranked Hinge with 48 mm Screw Hole Spacing
• SKU 701804  110 Degree Full Cranked Hinge with 48 mm Screw Hole Spacing
