Shower Door Hinge, Wall to Glass, Polished Chrome
    Shower Door Hinge, Wall to Glass, Polished Chrome
    Click to zoom
    Purchase Shower Door Hinge, Wall to Glass, Polished Chrome
    SKU #: 755002 Not Rated Yet

    Shower Door Hinge, Wall to Glass, Polished Chrome

    $54.69 Each
      HardwareSource - Checkmark In Stock  & Ships by the next day!
      In Stock

      Overview

      • This high quality shower door hinge is designed to fit industry standard templates. It features a solid brass drop forged construction, stainless steel coil springs, and a stainless steel reversible hinge pin. The reversible hinge pin allows the hinge to be set at 0 degrees or 5 degrees. The 5 degree setting holds the door against a stop.

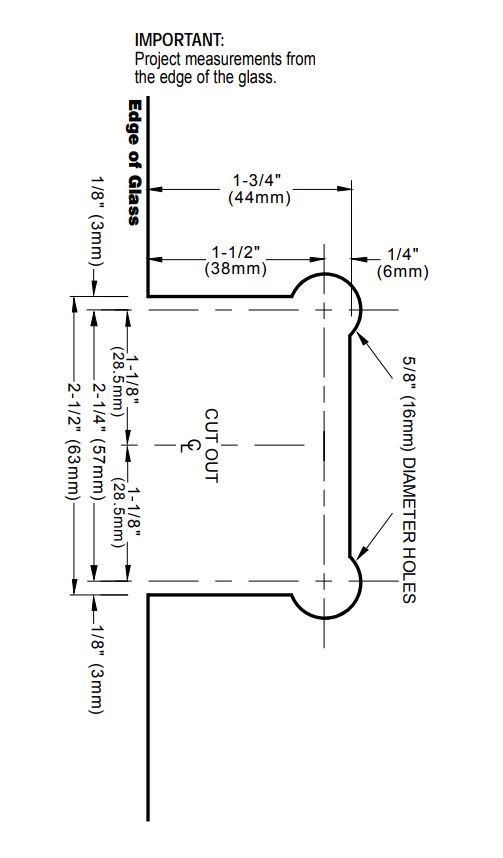

      • Fits tempered glass 3/8" to 1/2" thick. Installation requires a cutout in the glass where the hinge is installed.
      • The wall plate measures 1-15/16" W x 3-1/2"H. The glass leaf measures 2-1/8"W x 3-1/2".
      • Includes gaskets and allen wrench.

      Weight Ratings
      For 3/8" thick glass:

      • 2 hinges will support 80lbs and a 28" maximum width.
      • 3 hinges will support 120lbs and a 32" maximum width.

      For 1/2" thick glass:

      • 2 hinges will support 80lbs and a 26" maximum width.
      • 3 hinges will support 120lbs and a 30" maximum width.

      Specs

      Polished Chrome
      Brass
      90 Degrees
      Wall to Glass
      Yes

      Reviews

      You're reviewing Shower Door Hinge, Wall to Glass, Polished Chrome
      Rate Product
      No Reviews Yet

      Product Questions


      1 Question asked about Shower Door Hinge, Wall to Glass, Polished Chrome

      Q Antonio Sosa • 01/17/2018, 9:44:44 AM Need template for glass cut out this would be replacement hinges.

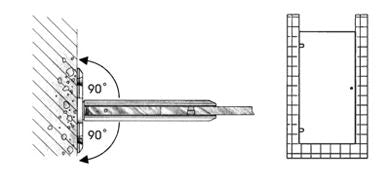

      A 01/17/2018, 12:06:13 PM An installation diagram for these hinges can be seen here: https://www.hardwaresource.com/amfile/file/download/file_id/2525/product_id/5251/
