Restriction Clip for Grass Compact Hinges

Overview

• Optional nylon clip for Grass Compact European Hinges
• Clip restricts door opening angle to 85 degrees.
• This is important if your door opens wide enough to hit another cabinet, wall, glass door, TV screen, etc

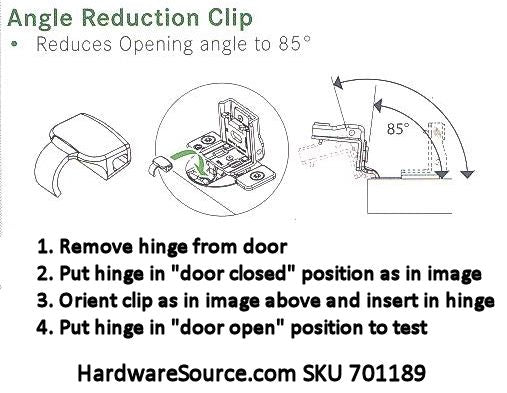

To install:

• Remove hinge from door
• Put hinge arm in "door closed" position
• Insert clip under pivoting arm of the hinge with curved part of clip orientated towards the bottom of the hinge cup
• Put hinge arm in "door open" position to make sure that it is restricting the final opening angle of the hinge
