- Used for full size doors where a hidden door application is desired.
- As the door opens, the Rack and Pinion Pivot moves the pivot point away from the door jamb (7/8" movement) so that the hinge side edge of the door does not need to be rounded.
- Maximum opening angle is 105 degrees.
- Opening beyond 105 degrees will damage pivot.

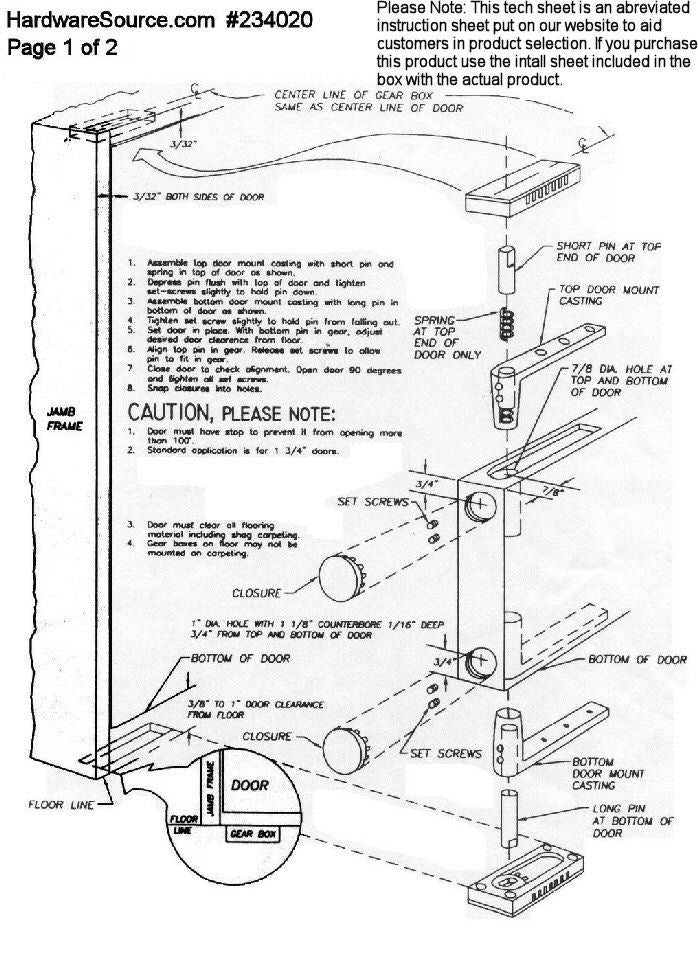

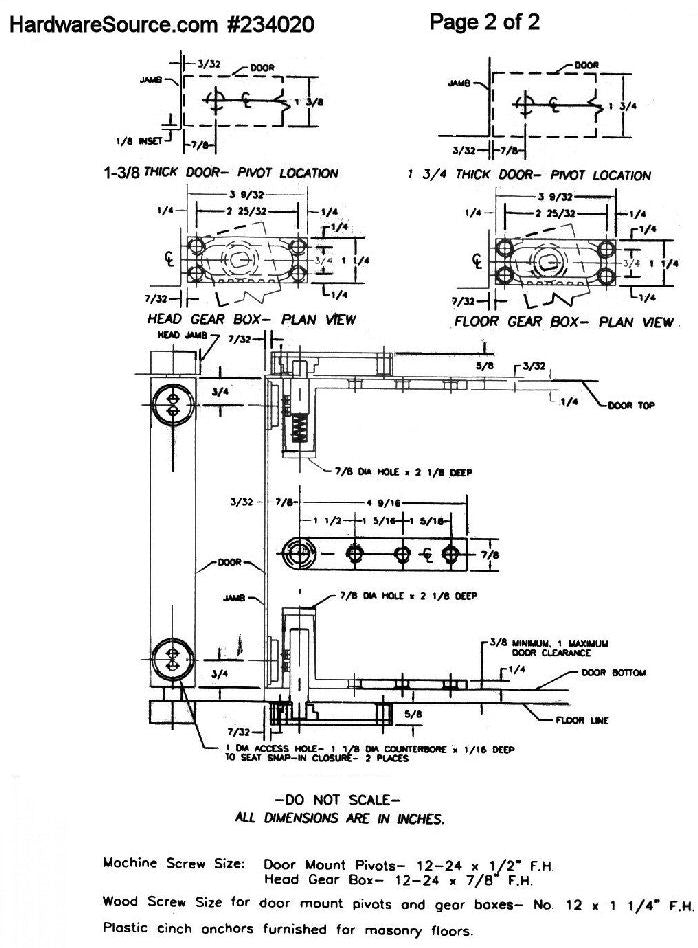

- Top and bottom gear boxes are designed to be fully mortised into floor and door frame.
- Frame not to have door stop at head and pivot jamb.
- Standard application is for 1-3/8" and 1-3/4" doors.
- This unit is sold by the set. One set is needed per door.
- Maximum door width is 36".
- Maximum door height is 84".
|Finish Name||Satin Chrome|
|Weight Rating||80 lbs Per Set|
|Mounting Hardware Included||Yes|
|Mounting Hardware Type||Matching Fasteners|
|California Residents||Prop 65 Warning|
