Pivot Door Slide

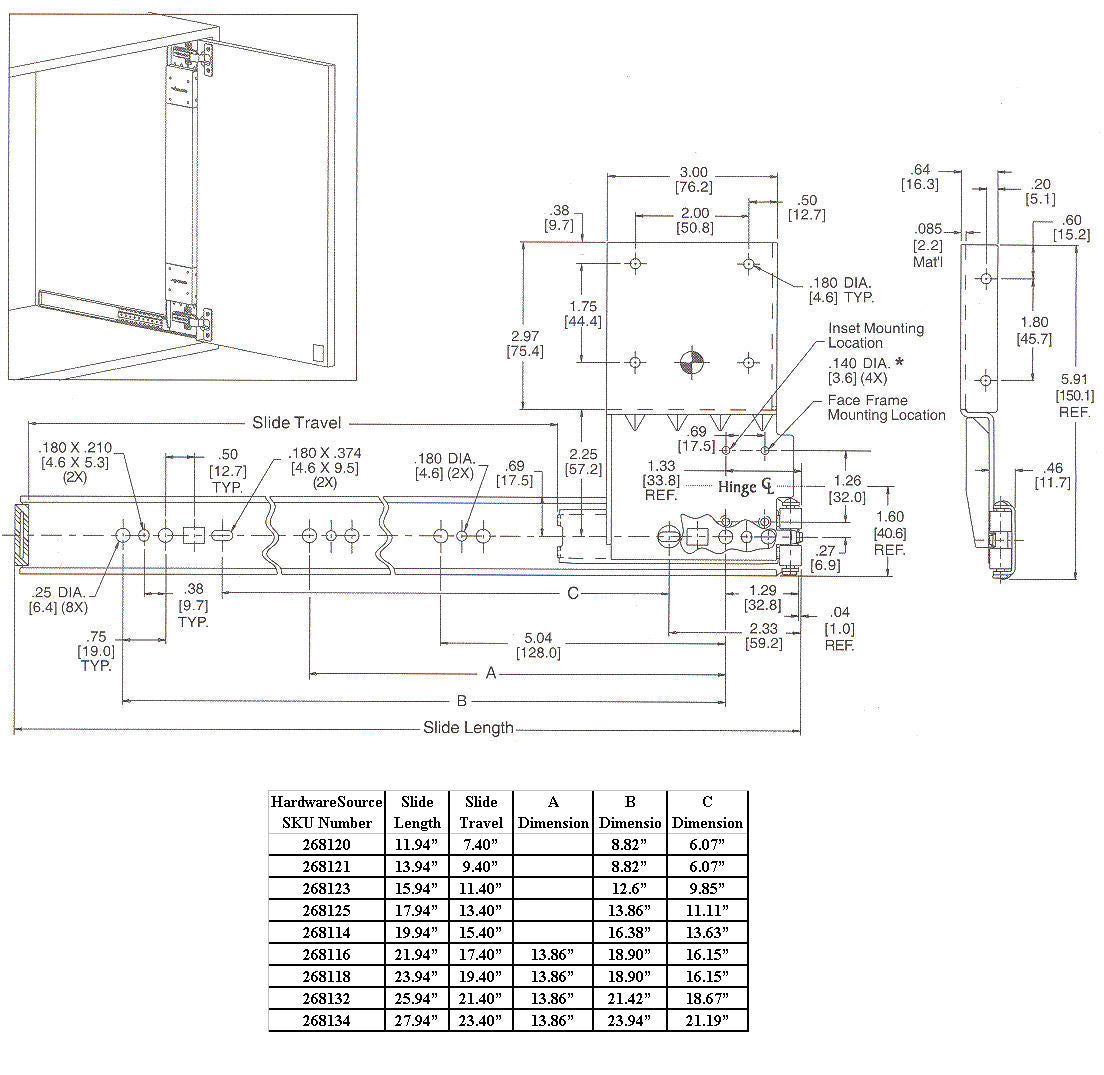

Pivot Door Slide Pivot Door Slide - Installed Pivot Door Slide - Line Drawing


  • For entertainment centers, armoires and kitchen cabinets.
  • Allows the door to open to 90 degrees and slide back into the inside of the cabinet.

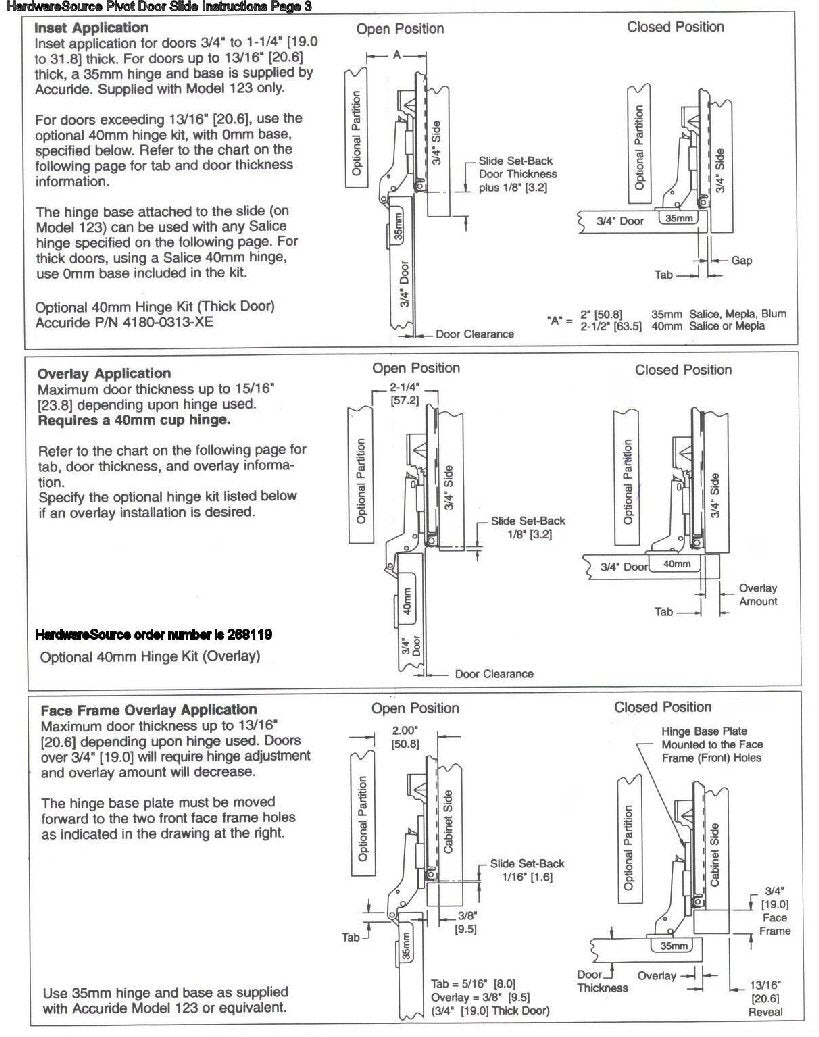

  • For "inset" cabinets without a face frame or "overlay" cabinets with a face frame.
  • For "non-face frame overlay" applications add a Non-Face Frame Overlay Hinge Kit (order our number 268119).
  • Sold by the set. Purchase one set for each door.
  • Can be used for vertical or horizontal doors



More Information
Maximum Door Height 42"
Maximum Door Weight 30 lbs
Door Thickness 5/8" to 13/16"
Cup Diameter 35
Mounting Hardware Included Yes
Mounting Hardware Type Fasteners are Included
Made in USA No
