Over-the-Top Flipper Door Slide

Overview

• Over-the-Top Flipper Door slide allows cabinet door to be opened from the bottom, pivoted up and slid back on top of the cabinet.
• Closes with "soft down" action, slows the speed and dampens the closing action.
• For frameless cabinets, door is installed as an overlay door.
• Door should be a minimum of 3/4" thick. The best installation for this product is to route out a hollow in the back of the door to fit the slide into.
• Requires few or no cabinet modifications and is easy to install.
• Door closing speed remains similiar on light and heavy doors.
• All flipper door hardware mounts inside the cabinet so that no hardware interferes with cabinets mounted to either side.
• Flipper door hardware is ideal for installations up to a maximum 48" in width

Included in package

• One pair of Over-the-Top Flipper Door Slides (installs one door)

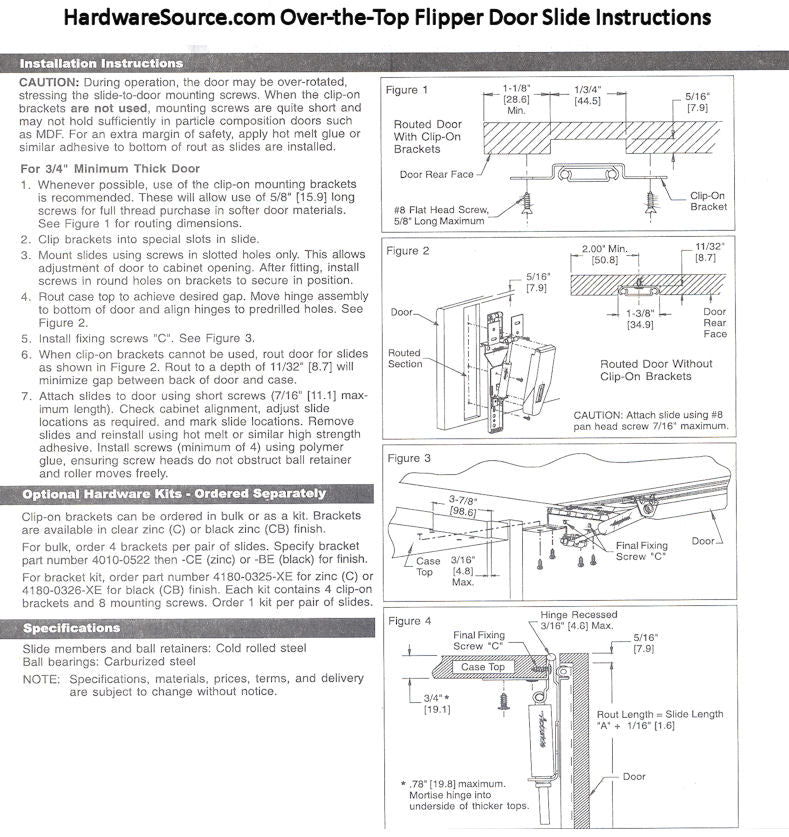

• Installation Instructions
• Fasteners
• Mounting brackets for use if installing on particle board
• Plastic covers for soft down piston

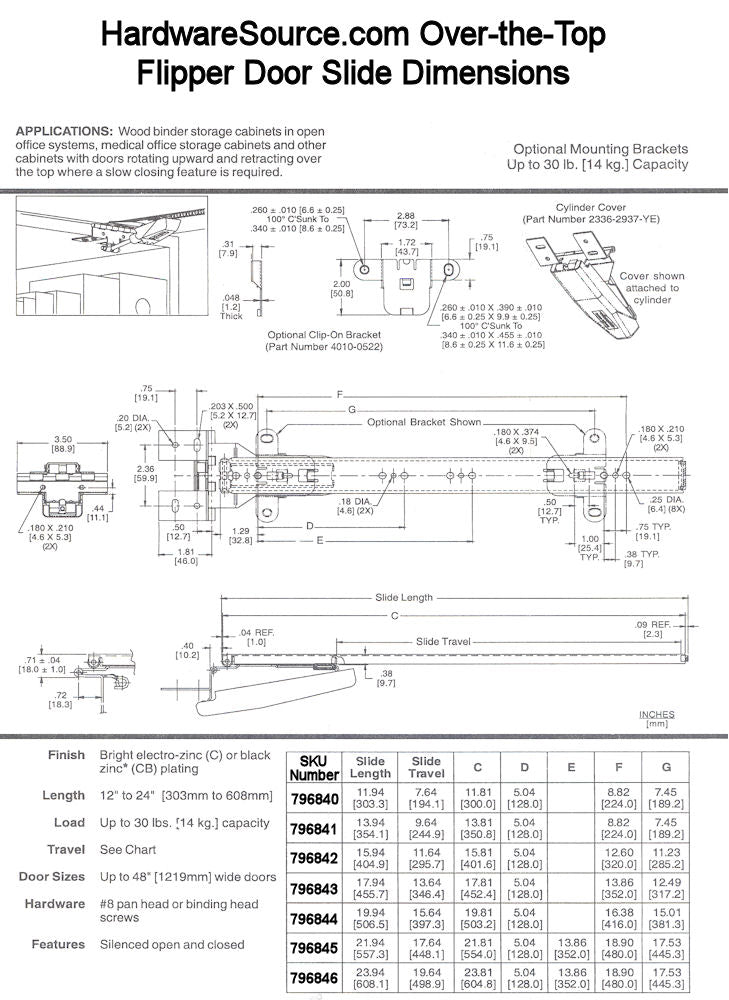

Considerations for choosing slide length

• Choose a slide length that matches as closely as possible your door height (but not shorter than the door height)
• Consider your cabinet depth. If your door is tall and your cabinet is shallow there will be a large overhang when the door is in the open position (slid back on top of the cabinet).

PLEASE NOTE: This product can only be installed on "Frameless cabinets" with a 3/4" top panel thickness. Frameless cabinets do not have a face frame. See the document found under Downloads to learn the difference between a face frame cabinet and a frameless cabinet.
