Olive knuckle hinges are for light full-inset cabinet doors and shutters. They offer a unique and decorative alternative to regular butt hinges. When the door is in the closed position, only the single hinge knuckle is visible. A door or shutter installed with olive knuckle hinges can be lifted off the frame without removing hinge pins or hinge screws (the door can only be lifted off in the closed position).
Selecting Olive Knuckle Hinges
- The 2" x 1-1/2" size works well for cabinet doors that are 1/2" to 5/8" thick.
- The 2-1/2" x 2" size works well for cabinet doors that are 5/8" to 3/4" thick.
- The 3" x 2-1/2" size works well for cabinet doors that are 3/4" to 1" thick.

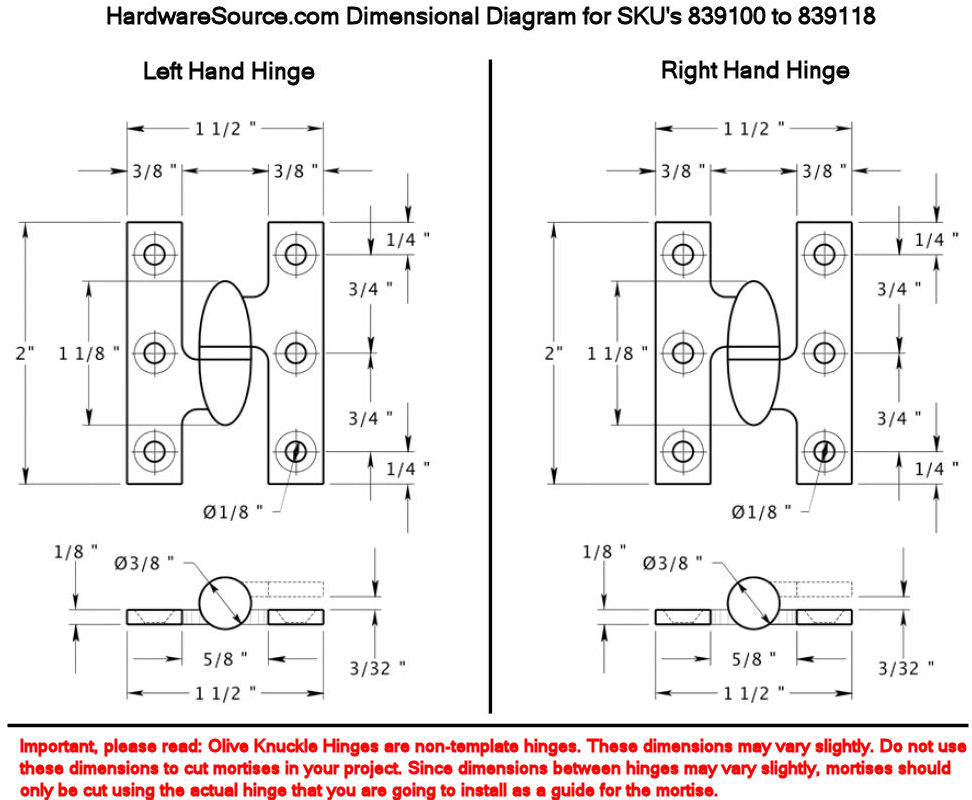

Olive Knuckle hinges are designed to be installed fully mortised (into cutouts in the edge of the door and door frame). They cannot be installed as surface mounted hinges. Dimensions are approximate. These hinges are not built to a template and the dimensions can vary slightly between hinges. We strongly advise to wait to cut mortises for your hinges until you have them in hand. Once you have your hinges in hand your mortises should be measured and cut individually for each hinge.
These hinges are handed. Please study handing information before ordering.
|Size (W x H)||2" x 1-1/2"|
|Mounting Hardware Included||Yes|
|Mounting Hardware Type||Matching wood screws|
|California Residents||Prop 65 Warning|
