Mitre Hinge for Doors and Flaps, 135 Degree

$20.11

Each

In stock
Ships by the next day!
SKU
796948
Mitre Hinge for Doors and Flaps, 135 Degree

Overview

  • European style hinge for Doors and Drop Flaps with a mitred edge (45 degree mitre).

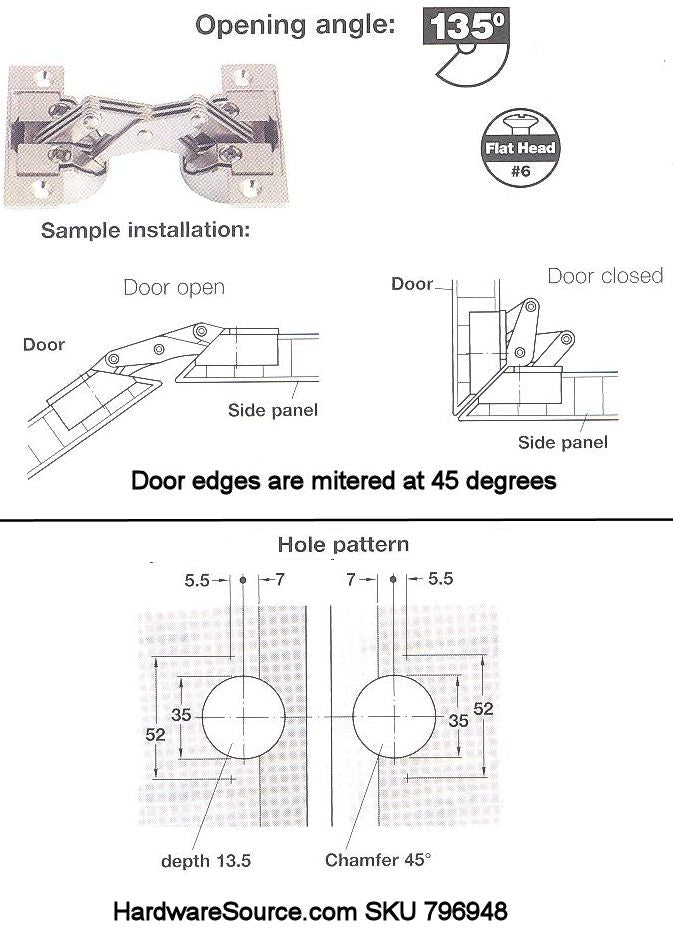

  • Hinge fits into 35mm (1-3/8") cups drilled in the back of the doors. Click on link below for drilling diagram.

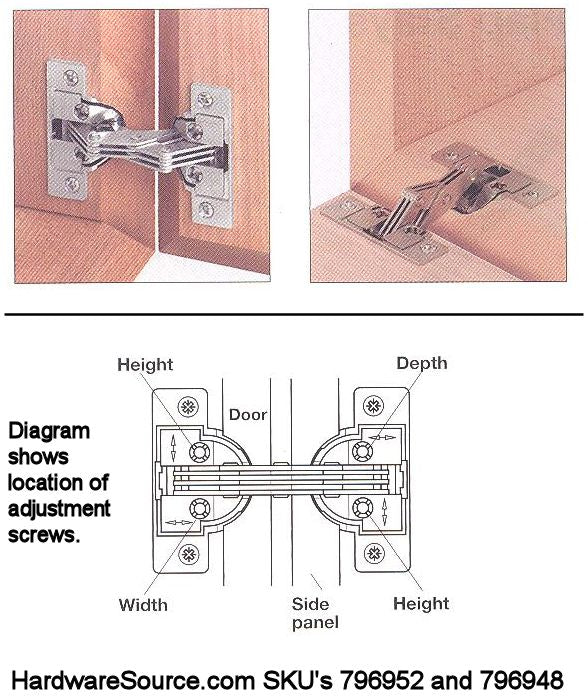

  • Adjustable after installation:
    • 3 mm in height
    • 1.5 mm in depth
    • 1.5 mm in width
  • Construction:
    • The hinge cup is made from zinc die-cast metal
    • The hinge arms are made from steel
    • The entire hinge is zinc chromate plated
  • Made for the following Door, Drop Flap and Side Panel Thicknesses
    • Door or Drop Flap thickness range of 16 to 22 mm (5/8" to 7/8")
    • Side panel thickness range of 16 to 22 mm (5/8" to 7/8")
  • This hinge is sold by the each. You will normally order 2 hinges for each door or flap.
  • Click on links below for dimension, installation and adjustment information.

PLEASE NOTE: A Drop Flap normally needs a lid stay to help support the flap in the down position. This hinge is not meant to act as the only means of support for a Drop Flap.

Features

Specs

More Information
Finish Name Zinc
Material Steel
Cabinet Type Frameless
Plate Connection Type One-Piece
Opening Angle 135 Degrees
Cup Diameter 35
Screw Hole Spacing 52mm (2-1/16")
Mounting Hardware Included No
Mounting Hardware Type Four #6 Flat head screws
