- A very heavy duty hinge designed to bolt-on to the post and weld-on to the gate frame.

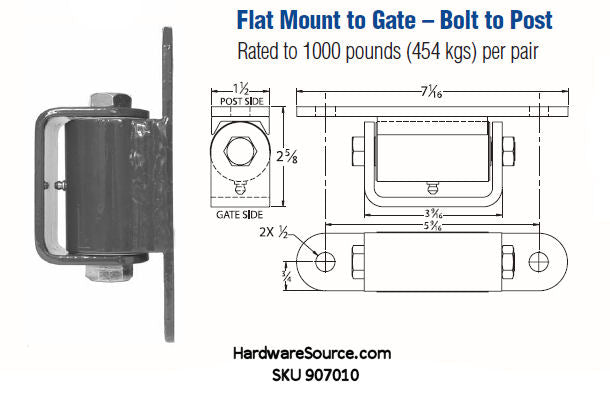

- Overall height is 7-1/16". See dimensional diagram found under Downloads for more details.
- Large weld surface.
- Includes grease fitting for lubrication.
To achieve listed weight ratings:
- It is necessary to employ standard and acceptable welding practices.
- Grade 5 or better bolts must be used for attachment.
- Note: we do not stock grade 5 or better bolts, they must be purchased from an alternate source.
|Finish Name||Primed for Painting (Red)|
|Weight Rating||1000 lb per pair|
|Heavy Duty Hinge Type||
|Mounting Hardware Included||No|
|Mounting Hardware Type||Two 1/2" Diameter Bolts, Grade 5 or Better.|
|California Residents||Prop 65 Warning|
