- Heavy duty hinge designed to bolt-on to the post and bolt-on to the gate frame.

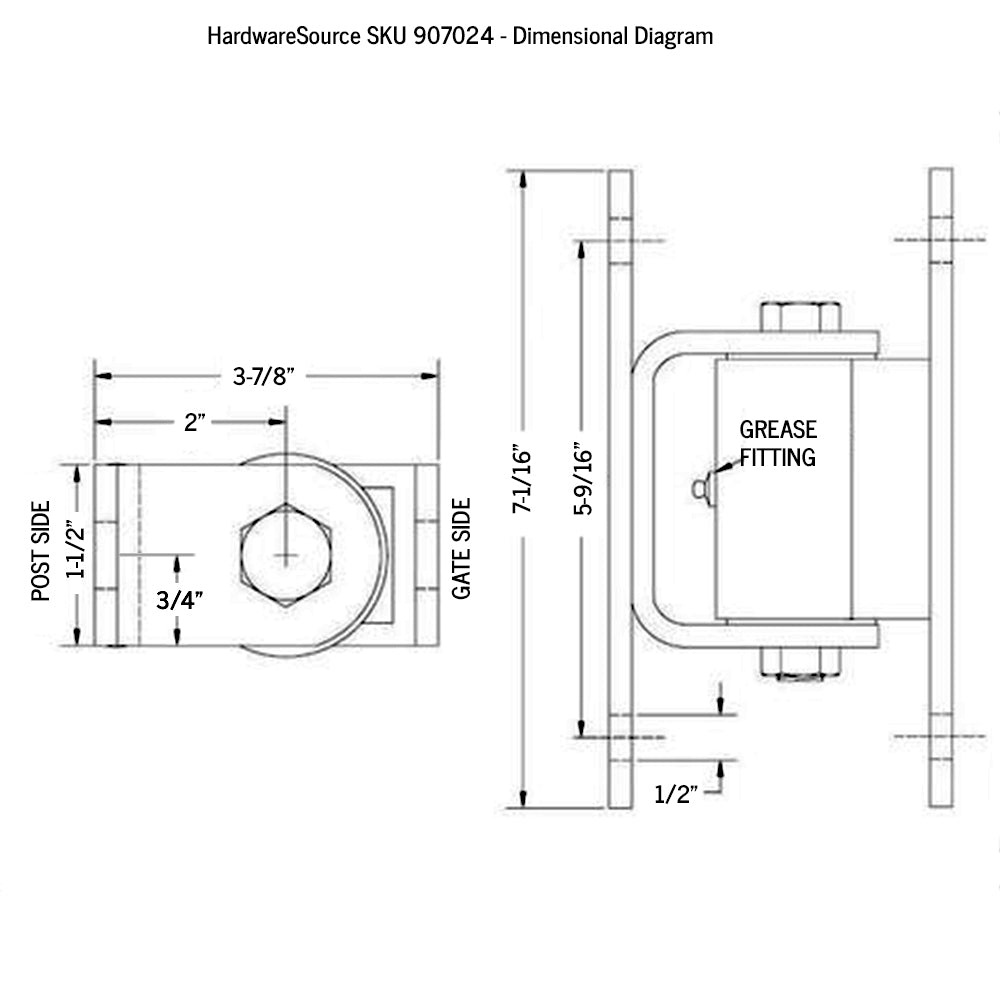

- Hinge mounting plate is approximately 7" tall by 1.5" wide. See dimensional diagram found under Downloads for more details.
- Includes grease fitting for lubrication.
To acheive the above weight ratings:
- 1/2" diameter stainless steel bolts must be used for attachment.
- Note: we do not stock stainless steel bolts, they must be purchased from an alternate source.
Note: The following parts on this hinge are made of steel (not stainless steel):
- The grease fitting (Zerk Fitting) is zinc plated steel.
- The bolt and nut that act as the pivot point are zinc plated steel.
If you're looking for a bolt-on barrel hinge for your gate, the heavy-duty bolt-on hinge, 7 inch, stainless steel option will more than satisfy your needs. Designed to bolt on to the post and gate frame, these stainless steel barrel hinges are high quality and very durable.
The heavy-duty bolt-on hinge, 7 inch, stainless steel part is your answer for mounting large gates. With a weight rating of 1,000 lbs. per pair, these hinges have mounting plates that are approximately 7" tall by 1.5" wide. In fact, these hinges have five times the weight-bearing surface of the next comparable barrel hinge. The fully lubricated grease fitting is made of zinc-plated steel instead of stainless steel. The bolt and nut of the pivot point are also made of zinc-plated steel. All other parts of this hinge are stainless steel, which will last for years to come. You can rely on this hinge with its dependable roller bearing design, which aids smooth operation and even weight distribution for your gate. They'll work fantastic on your residential or commercial gates. From large, heavy steel gates for ranches to common gates for homes, these bolt-on barrel hinges will help get the job done. For Downloads on these hinges, download the Dimensional Diagram and Hinge Construction PDF located on this page. Please note that the heavy-duty bolt-on hinge is sold individually, not as a pair.
These hinges should be installed with two 1/2" diameter bolts, Grade 5 or better. Bolts must be purchased separately. Once we've received your order, we'll have your hinges shipped within the next business day. For questioning before ordering, use our LiveChat system on our website to speak directly with one of our online agents. They'll quickly answer you and help find the right hinges for your gate. If you have any other questions about the heavy-duty bolt-on hinge, 7 inch, stainless steel or would like to learn more about our wide inventory of barrel hinges, please feel free to contact us for additional information.
|Finish Name||Satin Stainless Steel|
|Material||Stainless Steel (304)|
|Weight Rating||1000 lb|
|Heavy Duty Hinge Type||
|Mounting Hardware Included||No|
|Mounting Hardware Type||Two 1/2" Diameter Bolts, Grade 5 or Better|
|California Residents||Prop 65 Warning|
