- Rixon style high quality product at a great price.
- Features oil impregnated sintered bronze bearing on top pivot.

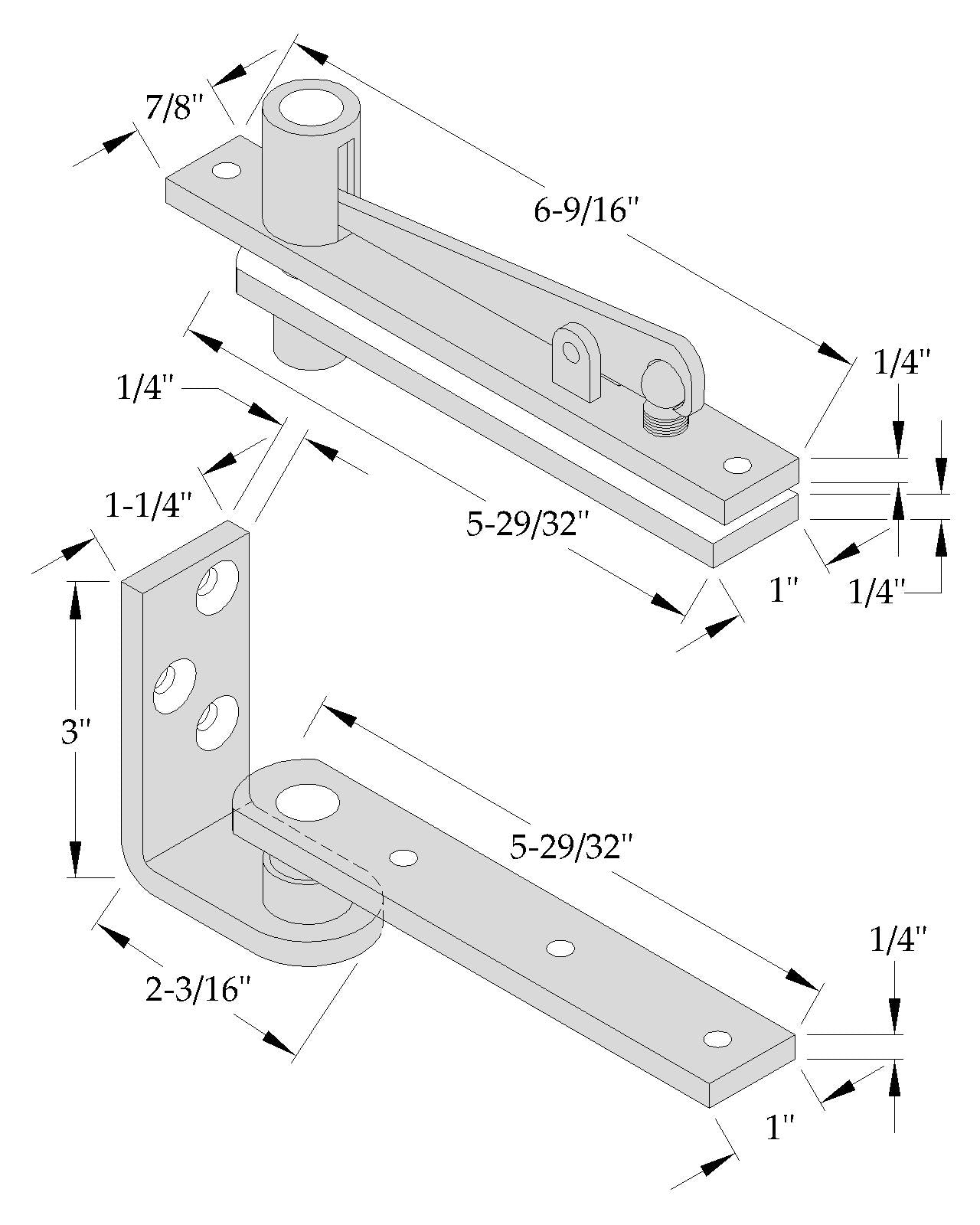

- Center hung pivot assembly for double acting interior doors.
- For both 1-3/8" and 1-3/4" thick doors.
- Maximum door height 102" (8'6") by 42" (3'6") wide.
- Bottom pivot is frame mounted. Frame must be floor supported.
- Pivot point is located 1-1/4" from jamb.
- All center hung pivot sets are double acting unless the door is stopped by some means on the door frame.
- Doors do not automatically return to center.
|Finish Group||Brass Tones,Bronze Tones,Polished Chrome / Polished Stainless Steel,Satin Nickel / Stainless Steel|
|Cabinet Door Type|
|Weight Rating Group||250 - 499 lb|
|Weight Rating||250 lbs Per Set|
|Mounting Hardware Included||Yes|
|Mounting Hardware Type||Matching Wood Screws|
ReviewsYou're reviewing Frame Mounted Center Hung Pivot Set, 250 lbs
No Reviews Yet
1 Question asked about Frame Mounted Center Hung Pivot Set, 250 lbs
Q Eric Roach • 08/24/2018, 9:38:05 AM Is there anything that can be added to this that can make this return to center? We have this installed and the homeowner wants it to return to center
A 08/24/2018, 10:52:18 AM If you put a stop on it so that the door only opens one direction, you may be able to use a separate overhead door closer, or something similar. See here; https://www.hardwaresource.com/door/door-hardware/door-closers.html
