Overview
- Designed to decrease the space between the gate and jamb/post.
- Allows the gate to swing 180 degrees.
- Welded pin design for high security.
- Easy to thoroughly lubricate.
Do you need new hinges for security needs? Where other hinges may have fallen short, the flat-mount gorilla weld-on hinge, 1000 lb. option will keep doors securely mounted and safe from tampering. From trash enclosures to prison doors, these steel gorilla weld-on hinges are a perfect choice.

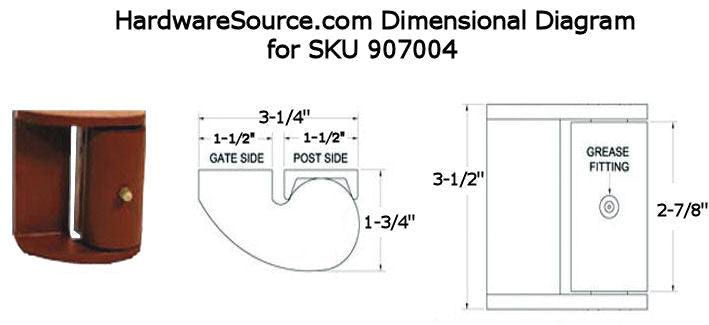

The flat-mount gorilla weld-on hinge, 1000 lb. door option is designed to be tough and tamper-proof. Both sides of the hinge are built to mount to flat surfaces, so they're ideal for outdoor trash bins, gates, prison doors, and high-security facilities and businesses. They're developed to reduce the space between the jamb or post and the gate for additional security. Two key features of these steel hinges are the high-security welded pin and hardened roller bearing design. Together, these ensure the hinges remain intact and functioning smoothly. If you happen to be searching for hinges for a jail or prison, inmates won't be able to uninstall or break these. The same applies to outdoor trash bins - wildlife like bears won't be able to tear into the trash and leave it scattered about your property. The flat-mount gorilla weld-on hinge, 1000 lb. option allows for a 180-degree swing, so you get the most out of your doors. The fitting enables re-greasing in the future for continued lubrication. These hinges come prime-coated, so you may finish them however you'd like. For more specific information on the flat-mount gorilla weld-on hinge, 1000 lb. option, download the Dimensional Diagram and Installation Information documents located on this page.
Please note that these steel gorilla hinges are sold per pair, not individually. When you purchase seven or more pairs, your order will qualify for a quantity discount. Once we've received your order, we'll have your gorilla hinges shipped within the next business day. Need clarification before ordering? Use our LiveChat system on our website to get your product questions answered by our online agents. If you have any other questions about the flat-mount gorilla weld-on hinge, 1000 lb. option or would like to learn more about our expansive selection of door hinges, please feel free to contact us for additional information.
Finish Name | Primed for Painting |
Material | Steel |
Weight Rating | 1,000 lbs Per Pair |
Width | 3 - 1/4" |
Height | 3 - 1/2" |
Bearings | Roller Bearing |
California Residents | Prop 65 Warning |
