SKU: 219629

Extra Heavy Duty Reversible Wardrobe Pivot Hinge

$60²¹Per Set

Description

For doors up to 150 lbs
For overlay doors 1-3/8" to 1-3/4" thick (35mm to 44mm).
Doors can be installed floor to ceiling.
Full 180 degree opening.

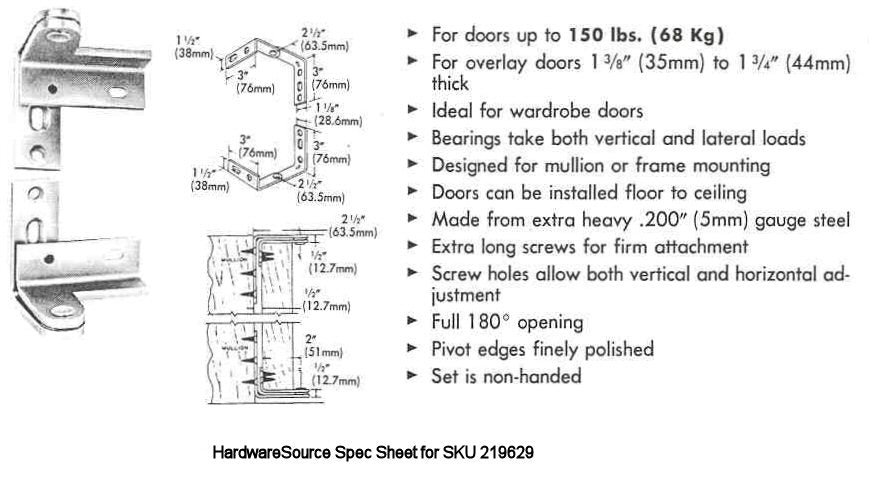

Horizontal piece (as shown in photo)measures 3" by 1-1/2"
Vertical flat piece (which mounts to wall) measures 3" x 1-1/8"
Sold by the set. A set is what is needed to install one door.
Bearings take vertical and lateral loads.
Designed for mullion or face frame mounting.
Screw holes allow for vertical and horizontal adjustment.
Non-Handed.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 219629

CA Prop 65 Warning

Finish Name

Satin Chrome
Material

Steel
Projection

3"
Action

Single Acting
Mounting Hardware Included

Yes
Mounting Hardware Type

Matching Wood Screws
