Blum | SKU: 268814

Blum Tip-On Touch Latch for Free Swinging Doors

Description

Blum Tip-On cabinet touch latches open your cabinet door when you give the door a gentle push inward.
For use with free swinging hinges only.
Not for use with self-closing hinges. See our SKU G10008 for the same item for self-closing hinges.
The Tip-On latch will push the door open wider than most other touch type latches.
To close the cabinet door, simply push the door closed, a magnet at the end of the push rod will keep the door in the closed position.
Made to be installed in frameless cabinets (cabinets without a face frame).
May be installed in face frame cabinets by installing a block of wood behind the cabinet face frame.
This product is sold in components. Please make sure to order one tip-On, one holder, and two screws per door.

Holders and Installation

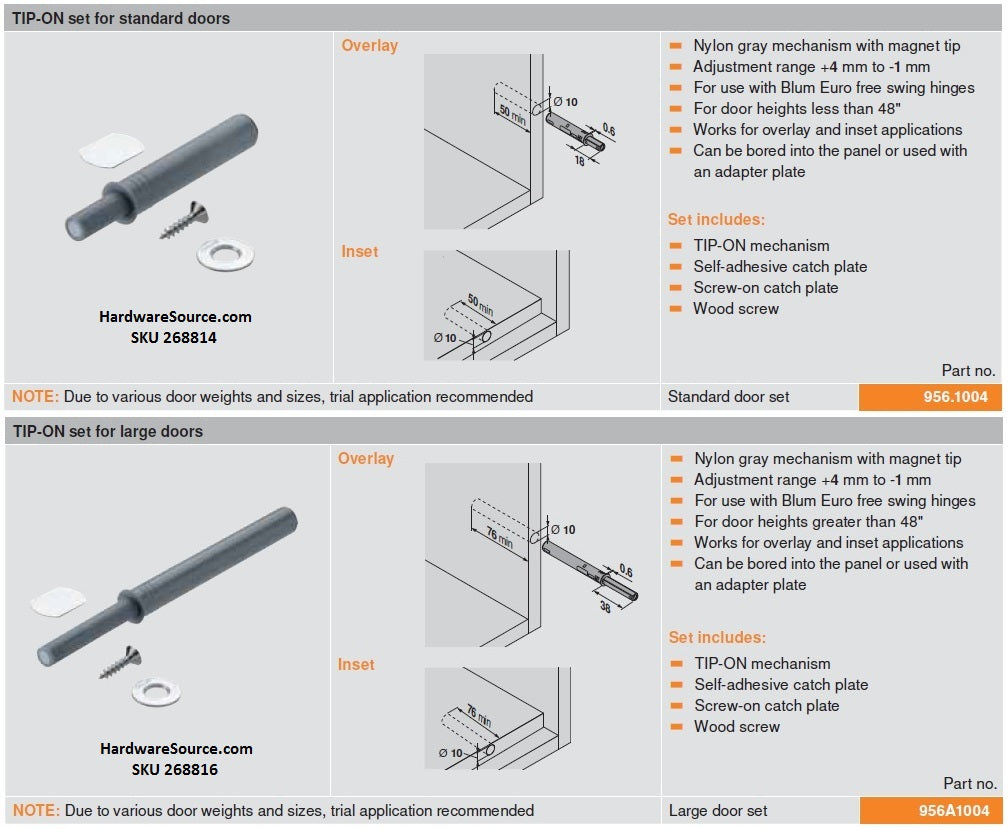

The Tip-On is available in two sizes:
- Standard Duty, for door heights less than 48". Blum 956.1004 / SKU 268814
- Heavy Duty, for door heights 48" or more. Blum 955A.1004 / SKU 268816

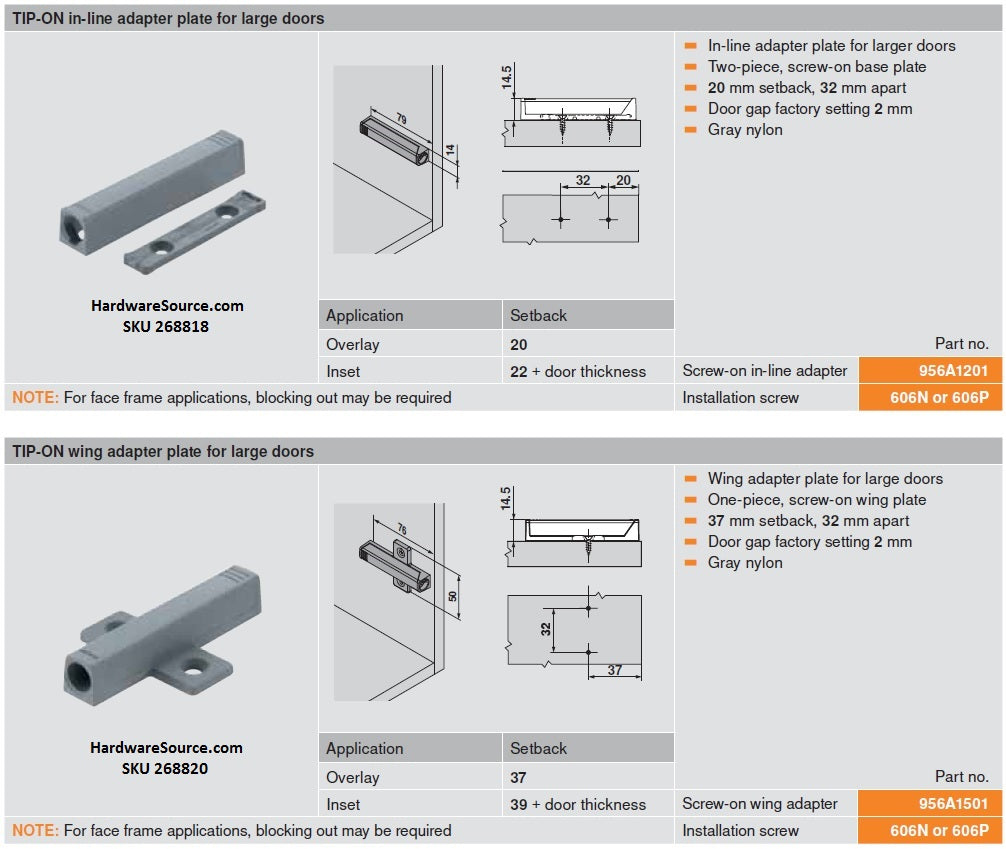

The Holder is available in two types:
- In-Line Type (screw holes are not visible). Blum 956A.1201 / SKU 268818
- Wing Type (two attachment screw holes are visible). Blum 956A.1501 SKU 268820

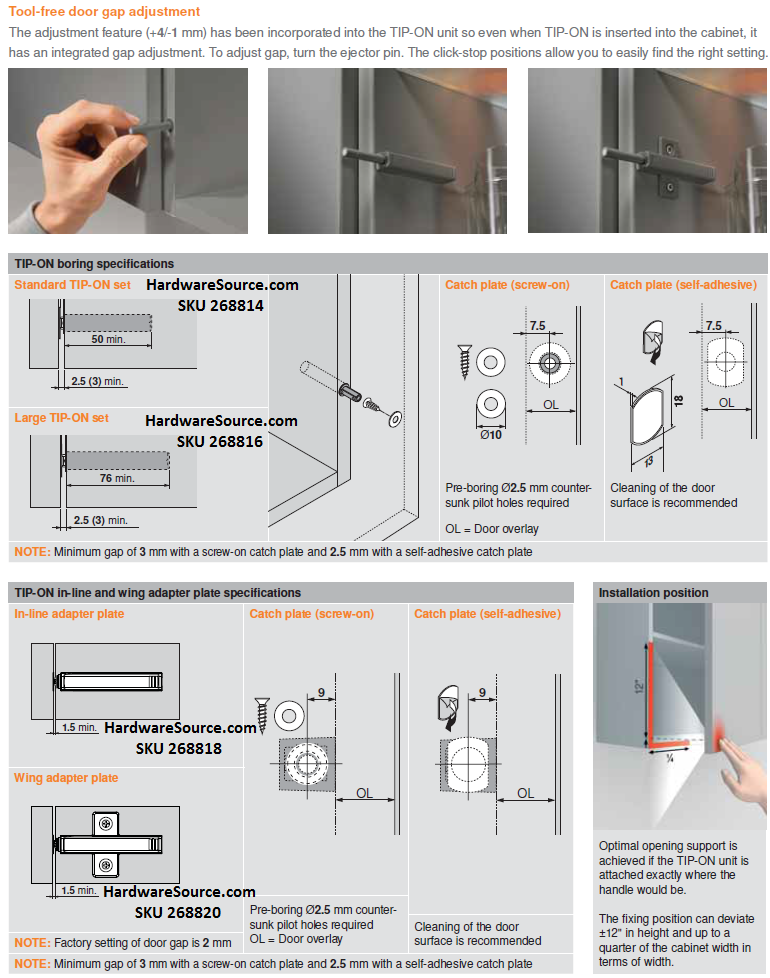

Tip on can be installed without a holder:
- Drill a 10mm hole in the cabinet side panel
- Install the "Tip On" in the 10mm hole
Strike plates (a self-sticking plate and a screw on plate and screw) are included with the purchase of a Tip-On (SKU's 268814 or SKU 268816).
Screws are not included for either of the holders, however they are available to purchase separately. Order two #6 flat head screws (SKU 652360) per holder.

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: G10007

CA Prop 65 Warning

Manufacturer

Blum
Finish Name

Gray
Material

Nylon
Mounting Hardware Included

No
