Blum Mini Hinge for Face Frame Overlay Cabinets - Bundle

From $7.20

To $8.01

Per Bundle

Blum Mini Hinge for Face Frame Overlay Cabinets - Bundle
Customize: Use the options below to configure your product bundle
Blum Mini Hinge, Straight Arm   + $5.99
European Hinge Screw, #6 x 5/8" - 1 Each   + $0.06
European Hinge Screw, #7 x 5/8" - 1 Each   + $0.06

* Required Fields

In stock

Ships by the next day!
Your Customization
Blum Mini Hinge for Face Frame Overlay Cabinets - Bundle

In stock

$7.20

SKU
B10125
Summary

    Overview

    • Blum's mini straight arm clip top hinge for face frame overlay cabinets.
    • For doors with a narrow style or for smaller sized doors.
    • Fits in a 26mm cup drilled in the back of the door.

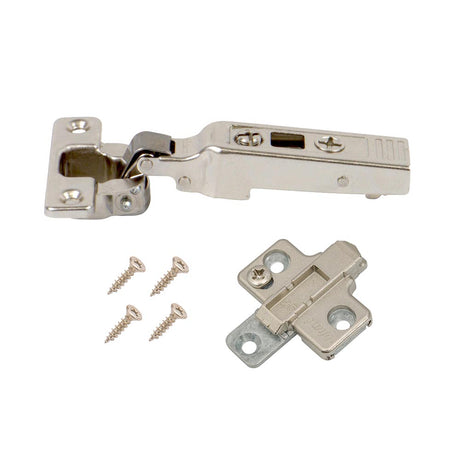

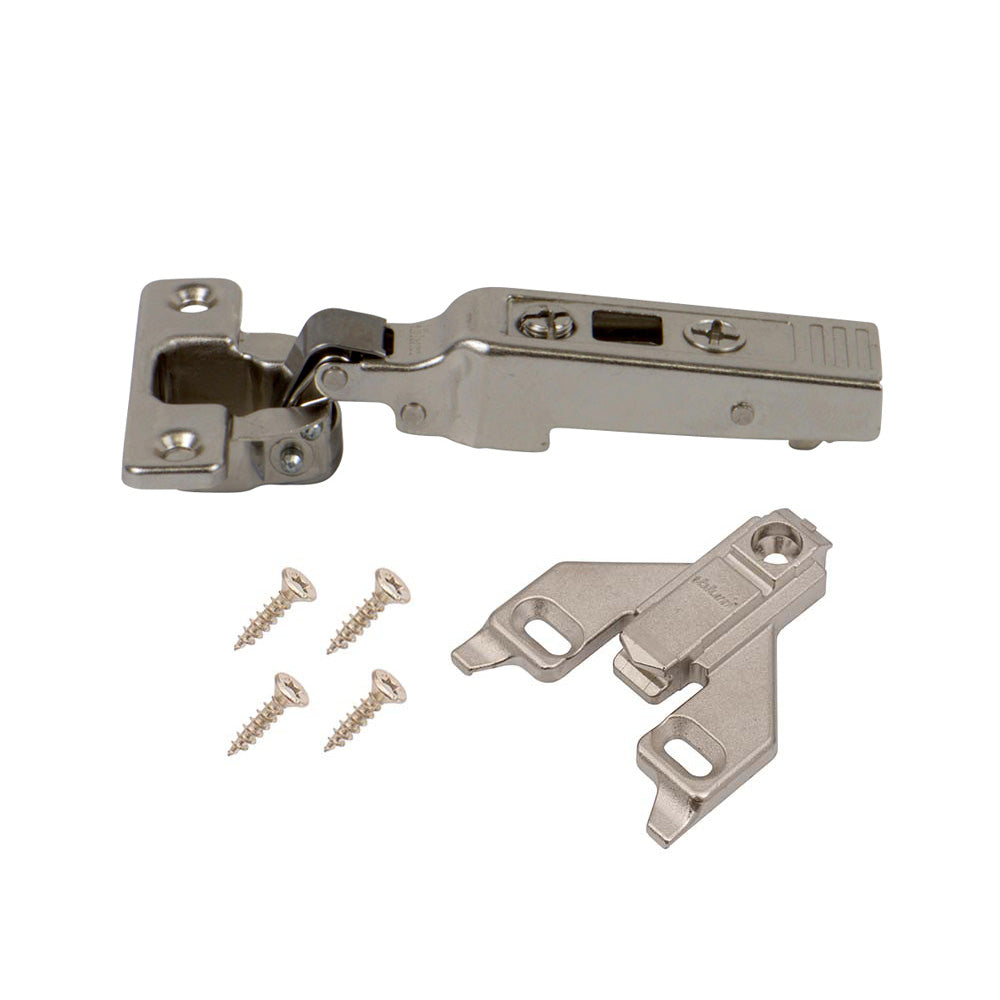

    What's Included

    • 1 Blum Mini Straight Arm Hinge
    • 1 Blum Face Frame Mounting Plate
      • There are three possible mounting plates for face frame overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" link below.
    • Two #6 x 5/8" screws for the hinge
    • Two #7 x 5/8" screws for the mounting plate

    Optional Accessories

    • Cover Plate for Arm Part of Hinge - Hides the screws on the hinge arm providing a cleaner appearance

    Available for purchase separately:

    • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
    • Blum Touch Latch for Self-Closing Doors (SKU 268822)

    Features

    Specs

    More Information
    Manufacturer Blum
    Model # Hinge: 71T0550
    0mm Plate: 175L6600.22
    3mm Plate: 175L6630.22
    6mm Plate: 175L6660.22
    HS SKU Hinge: 701102
    0mm Plate: 652304
    3mm Plate: 652305
    6mm Plate: 652306
    Finish Name Nickel
    Material Steel
    Cabinet Door Type Half Overlay, Full Overlay
    Cabinet Type Face Frame
    Soft Closing No
    Self-Closing Yes
    Plate Connection Type Clip-On
    Opening Angle 94 Degrees
    Cup Diameter 26
    Screw Hole Spacing 38mm (1-1/2")
    Mounting Hardware Included Yes
    Mounting Hardware Type Two #6 x 5/8" screws for the hinge and two #7 x 5/8" screws for the mounting plate
