Overview
- This is the new style Aximat hinge for full overlay doors. It replaces the old style Aximat hinge which is no longer available.

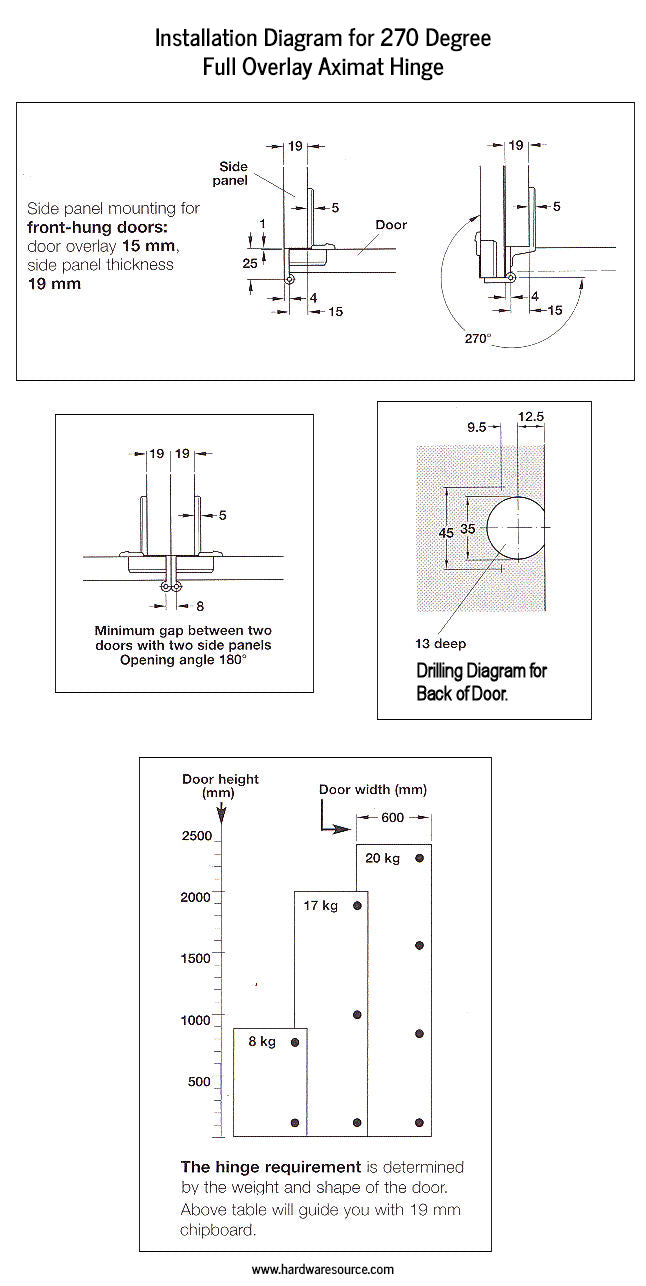

- For cabinets with 3/4" (19mm) thick door and 3/4" (19mm) thick side panel.
- Installs in a 35mm cup drilled in the back of the door.
- Door overlay will be 15mm (19/32"), full overlay.
- Hinge allows door to be free swinging and has an internal snap catch which holds the door in the closed positon.
Notes
- A single hinge is made up of two separate parts which snap together to become the hinge.
- Each "arm side" comes with two screws and two plastic dowels which are sized for a 5mm (3/16") hole. The "cup side" of the hinge uses two #6 flat head screws.
Features
Specs
| Finish Name | Nickel |
|---|---|
| Material | Cast Metal |
| Cabinet Door Type | Full Overlay |
| Cabinet Type | Frameless |
| Soft Closing | No |
| Self-Closing | Yes |
| Plate Connection Type | Clip-On |
| Opening Angle | 270 Degrees |
| Cup Diameter | 35 |
| Screw Hole Spacing | 45mm (1-3/4") |
| Mounting Hardware Included | Yes |
