- Weld-on hinge features adjustable yoke which allows 3/8" horizontal adjustment after installation.
- Made to attach to a flat gate frame and flat gate post.
- Features a dependable sealed roller bearing design.
- Easy to fully lubricate with zerk fitting.
If you need a strong, versatile hinge for your gates, consider the adjustable weld-on hinge, 1000 lb. option offered here at Hardware Source. From farm and hunting property to commercial sites, these capable weld-on hinges can satisfy your mounting needs.

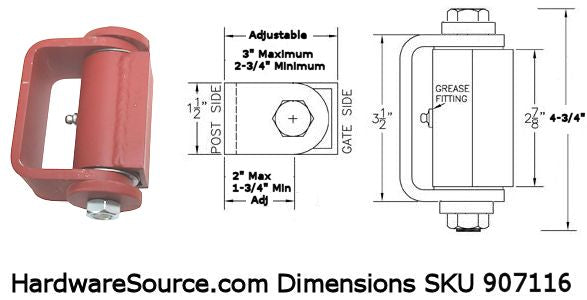

Designed for flat gate frames and posts, this steel adjustable weld-on hinge is a perfect fit. It features an adjustable yoke that allows 3/8" horizontal adjustment after installation. This will help ensure a secure and stable fit, without the headache of needing to re-install it or buy a totally different hinge. This hinge is 2.75-3" wide and 3-1/2" in height. The sealed roller bearing design is incredibly dependable, providing smooth function for years to come. You'll be able to mount heavy gates up to 1,000 lbs. per pair of these hinges. Use them for the gates on school grounds, ranches, commercial warehouses, private property, hunting grounds, and more. The zerk fitting allows you to lubricate the hinge when necessary. There are no color finish options to choose from, as the adjustable weld-on hinge, 1000 lb. option comes prime coated for painting. You can paint your hinges however you'd like. For specifics on the adjustable weld-on hinge, 1000 lb. option, download the Dimensional Diagram located on this page. Please note these weld-on hinges are sold in pairs, not individually. As these are weld-on parts, there is no mounting hardware.
Have questions before ordering? Connect with an online agent via our LiveChat system on our website for fast answers. If this isn't the right hinge for you, they'll help you find what you need. After we've received your order, we'll have your steel weld-on hinges shipped within the next business day. If you have any other questions about the adjustable weld-on hinge, 1000 lb. or would like to learn more about our wide inventory of weld-on hinges, please feel free to contact us for additional information.
|Finish Name||Primed for Painting|
|Weight Rating||1,000 lbs Per Pair|
|Type||Flat Frame Model|
|Width||2.75" - 3"|
|Height||3 - 1/2"|
|California Residents||Prop 65 Warning|
