3/4" Offset Hung Pivot Set, 250 lbs
    3/4" Offset Hung Pivot Set, 250 lbs
    Click to zoom
    Purchase 3/4" Offset Hung Pivot Set, 250 lbs
    SKU #: C10562 Not Rated Yet

    3/4" Offset Hung Pivot Set, 250 lbs

    $168.97 Set
      HardwareSource - Checkmark In Stock  & Ships by the next day!
      In Stock

      Overview

      • High quality Rixon style offset hung hinge at a great price.
      • Features a sealed ball bearing raceway on the floor pivot.
      • Bronze bearing with hardened and ground steel stud in top pivot.

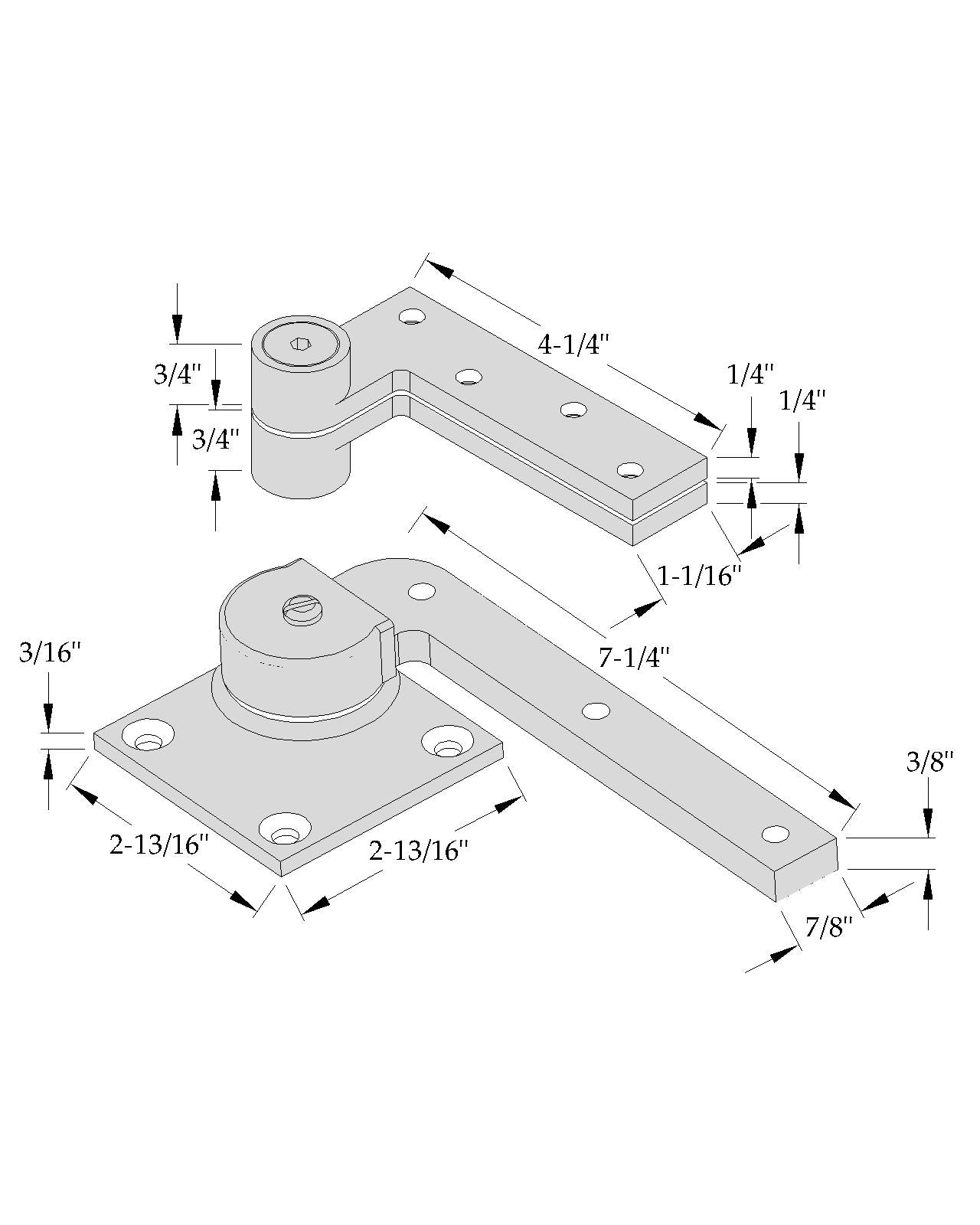

      • 3/4" offset hung pivot sets locate the pivot point 3/4" from the heel edge of the door and 3/4" from the face of the door.
      • Doors over 60" require the use of an intermediate pivot. Every additional 30" of door height warrants the addition of another intermediate pivot. For an intermediate pivot use our 3/4" Offset Intermediate Pivot.
      • Doors will swing 180 degrees (trim permitting).

      Specs

      Steel
      250 lbs Per Set
      Single Acting
      Yes
      Matching Wood Screws
      Prop 65 Warning
