Large Pivot Hinge
Couldn't load pickup availability
Description
Description
- Pivot hinge for large cabinet doors and fullz size doors.
- Made of solid brass with steel pins
- For tall doors an intermediate pivot hinge is recommended to keep the middle part of the door in alignment (sold separately). Our product titled "Intermediate Pivot Hinge" is compatable with any of these hinges.
- The listed weight ratings are for a pair of hinges.
35 lb Weight Rated Model

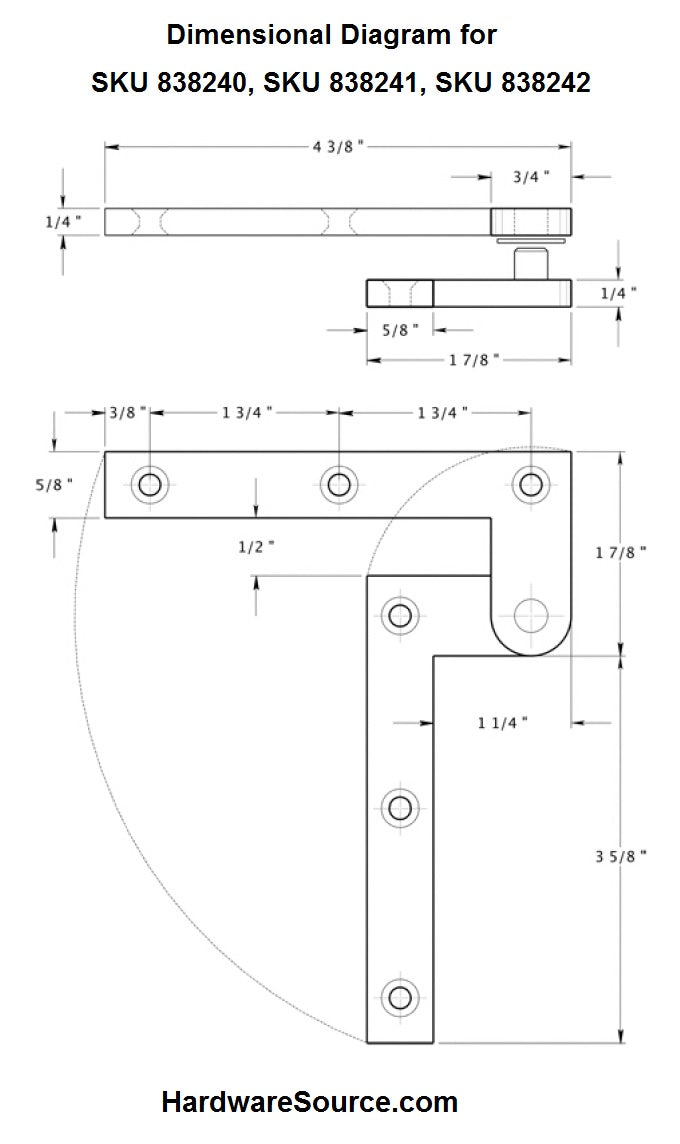

- 3-78 Length, 1/2" Thickness, 5/8" Width
- Pivot screw is flush with the hinge.
50 lb Weight Rated Model
- 4-3/8" Length, 1/2" Thickness, 5/8" Width
- Pivot screw is flush with the hinge.

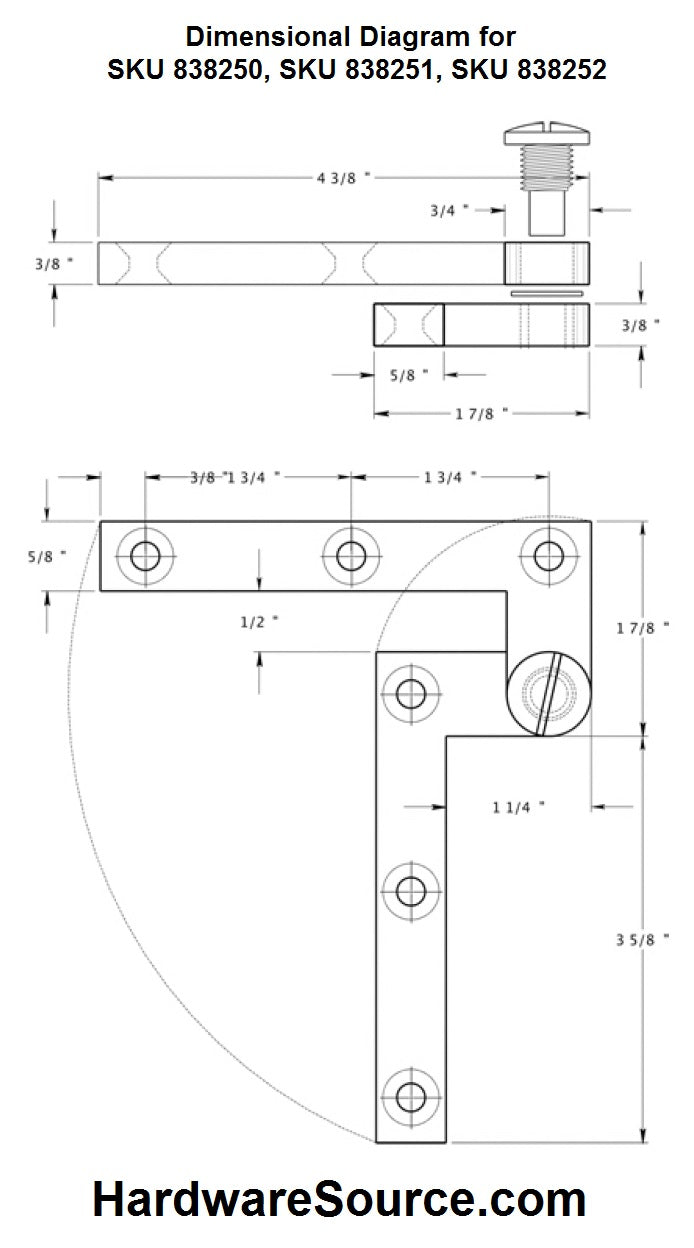

200 lb Weight Rated Model
- 4-3/8" Length, 25/32" Thickness, 5/8" Width
- Pivot screw has a raised slotted head which measures about 3/4" in diameter and is 3/16" above the hinge surface. Pivots on roller bearings.
- A pivot base is available for this hinge (sold separately)
