Heavy Duty Roller Bearing Weld-On Hinge
Couldn't load pickup availability
Description
Description
- This heavy duty weld-on hinge has a unique bushing design that produces near frictionless movement and maintenenance free usage.
- Designed to attach to a flat gate frame and a round or flat gate post.
- Features three sealed roller bearings.
- No greasing required.

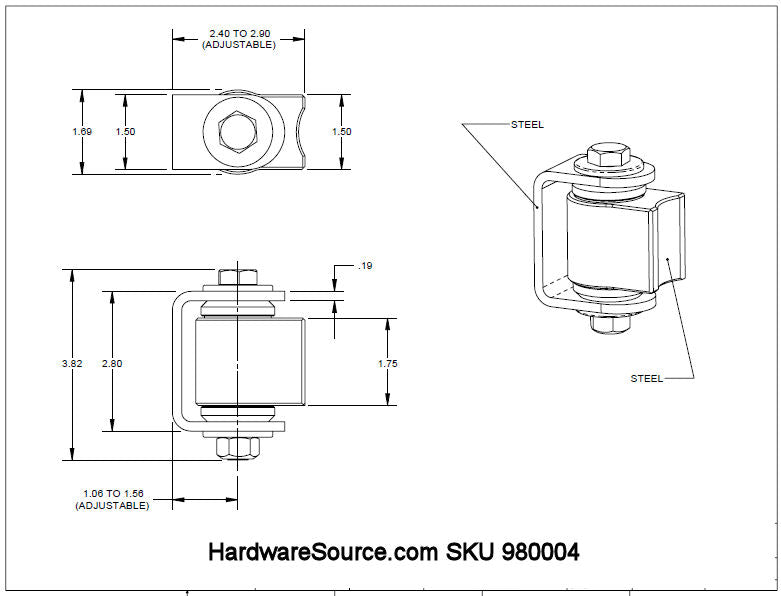

- Leaves a 2-3/4" gap between the gate and frame.
- The pivot arm has an oval slot for adjustability of the gap between the gate frame and the post after installation. It offers 1/2" of adjustment.
- Two hinges are required for most installations.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 980004
-
Manufacturer
-
Finish Name
-
MaterialSteel
-
Weight Rating
-
Width
-
Height
-
BearingsRoller Bearing
